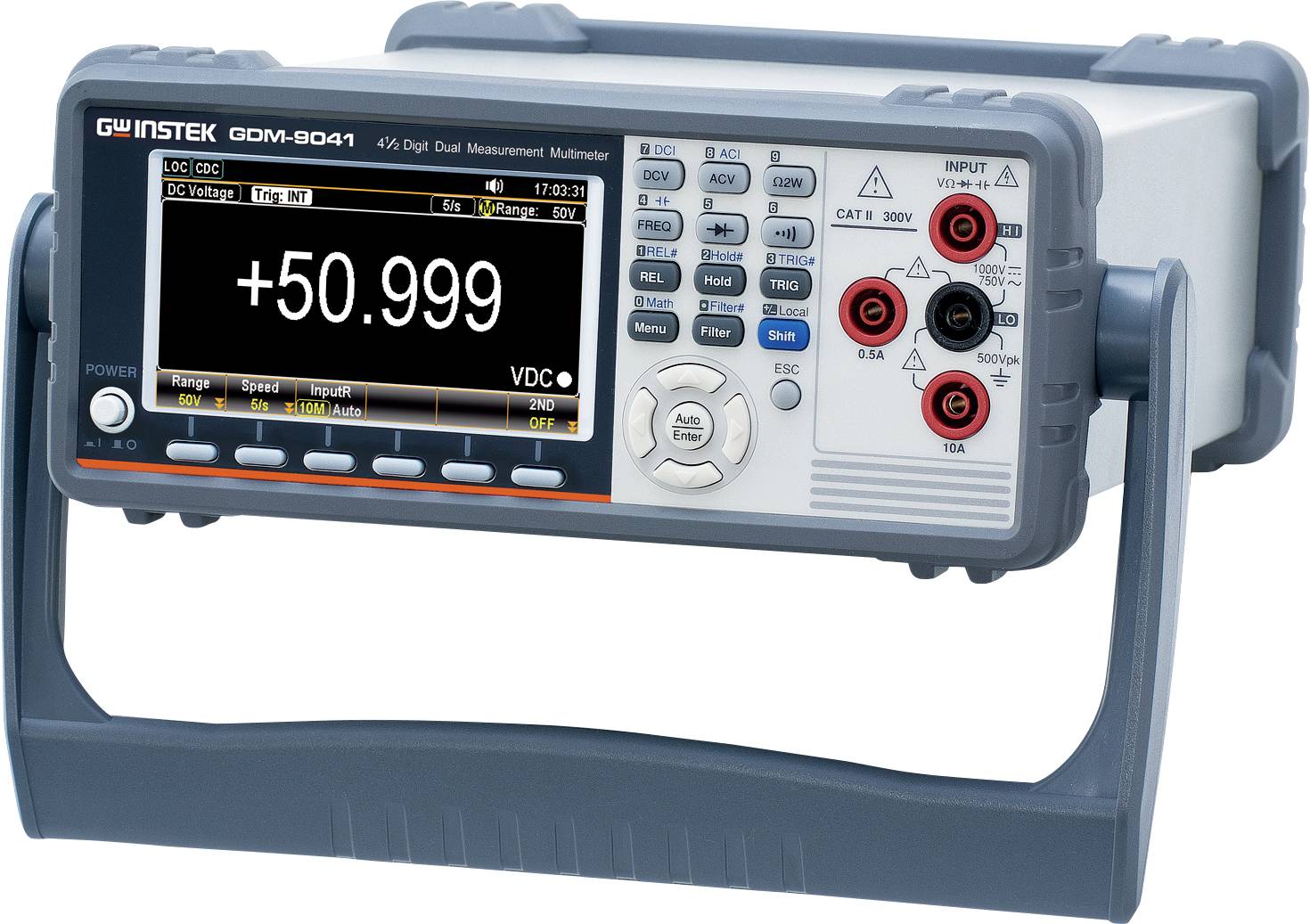

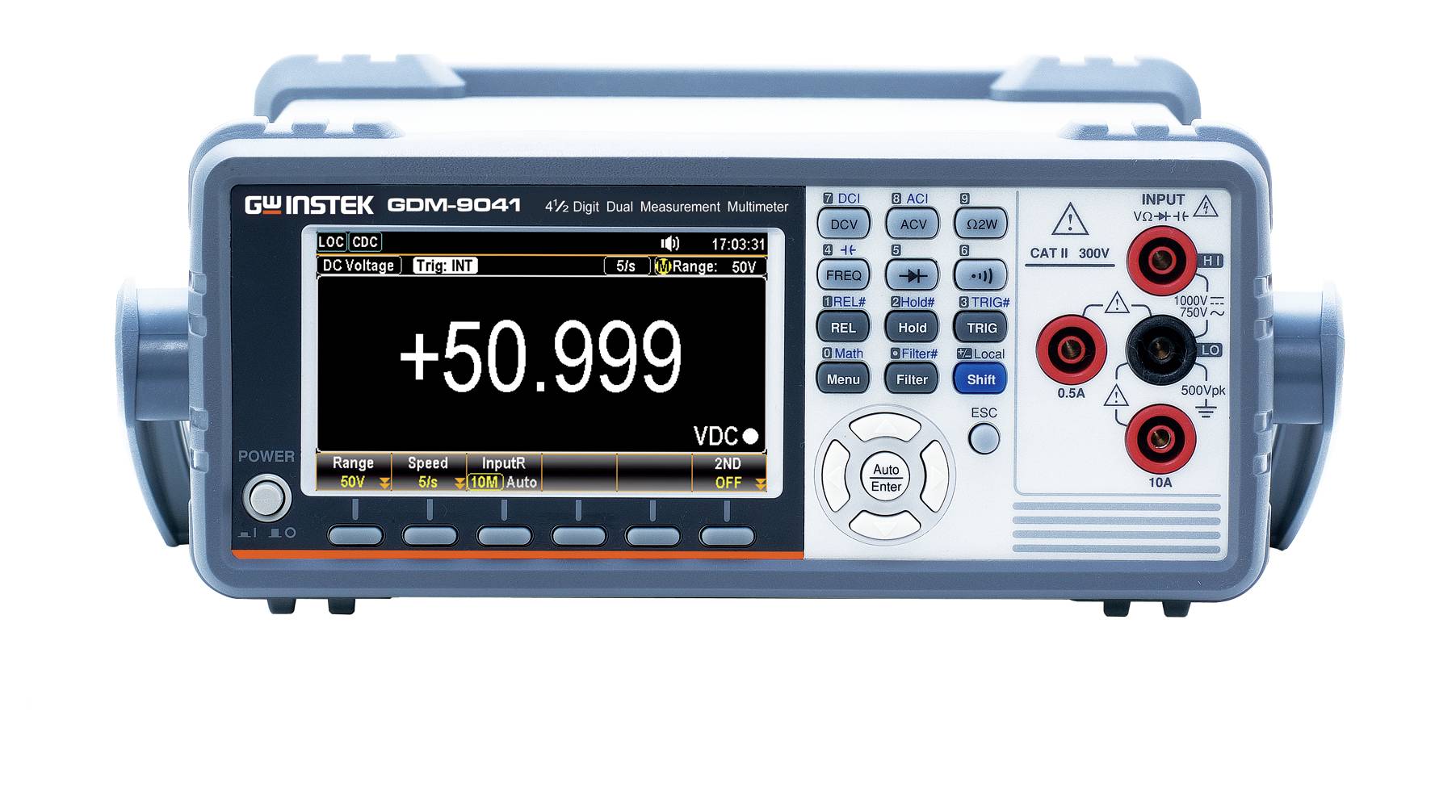

GW Instek GDM-9041 Precision tester Digital Graphics display CAT II 300 V Display (counts): 50.000

1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions

Total (€ 495.00 / piece)
€ 495.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only available for business customers
14-day return policy included

Highlights & Details

GWINSTEK GDM-9041 Dual-measuring multimeter with USB

  • CAT II 300 V

Technical specifications

Voltage reading range DC (min.)

500.00 mV

Product type

Precision tester

Voltage DC reading range (max.)

1000.0 V

V AC reading range (min.)

500.00 mV

V AC reading range (max.)

750.0 V

Amperage reading range DC (min.)

500.00 µA

A DC reading range (max.)

10.000 A

A AC reading range (min.)

500.00 µA

Amperage reading range AC (max.)

10.000 A

Reading range - resistance

100.00 GΩ

Reading range - capacity

50.00 µF

Frequency reading range

1 MHz

Basic accuracy

0.02 %

Measurement type (details)

True RMS

Interfaces

USB

Height

107 mm

Width

268 mm

Length

302 mm

Weight

3.2 kg

Manufacturer's standards (no certificate)

Reading category

CAT II 300 V

Voltage metering

AC/DC

Current reading

AC/DC

Type

GDM-9041

Display

Digital

Display (counts)

50.000

Dim

(L x W x H) 302 x 268 x 107 mm

Features

Graphics display

Interfaces

USB device

Documents & Downloads

Datasheet

Datasheet 3436260 GW Instek GDM-9041 Precision tester Digital Graphics display CAT II 300 V Display (counts): 50.000

User & Safety Instructions

User & Safety Instructions 3436260 GW Instek GDM-9041 Precision tester Digital Graphics display CAT II 300 V Display (counts): 50.000

Description

Discover the GWINSTEK GDM-9041, a 50,000-count Dual multimeter that has been developed to simplify and accelerate your measuring tasks. Forget the manual function selection thanks to the intelligent A.I. (Automatic Identification) measurement function, which automatically detects and measures voltage, resistance, diodes and continuity. With an impressive DCV basic accuracy of 0.02% and the ability to simultaneously measure Dual, the GDM-9041 offers unmatched precision and efficiency for demanding users. The 4.3-inch TFT graphics LCD provides clear readability, while standard USB interfaces (device and host) and an optional GPIB interface offer versatile connectivity options. For additional convenience, the GDM-9041 is equipped with a temperature measurement function and USB memory to record data.
