Name: H-Tronic Moisture sensor 1 pc(s) PLS2000 Reading range: -40 - 125 °C (L x W x H) 170 x 140 x 67 mm
Brand: H-Tronic
SKU: 3742080
Availability: InStock

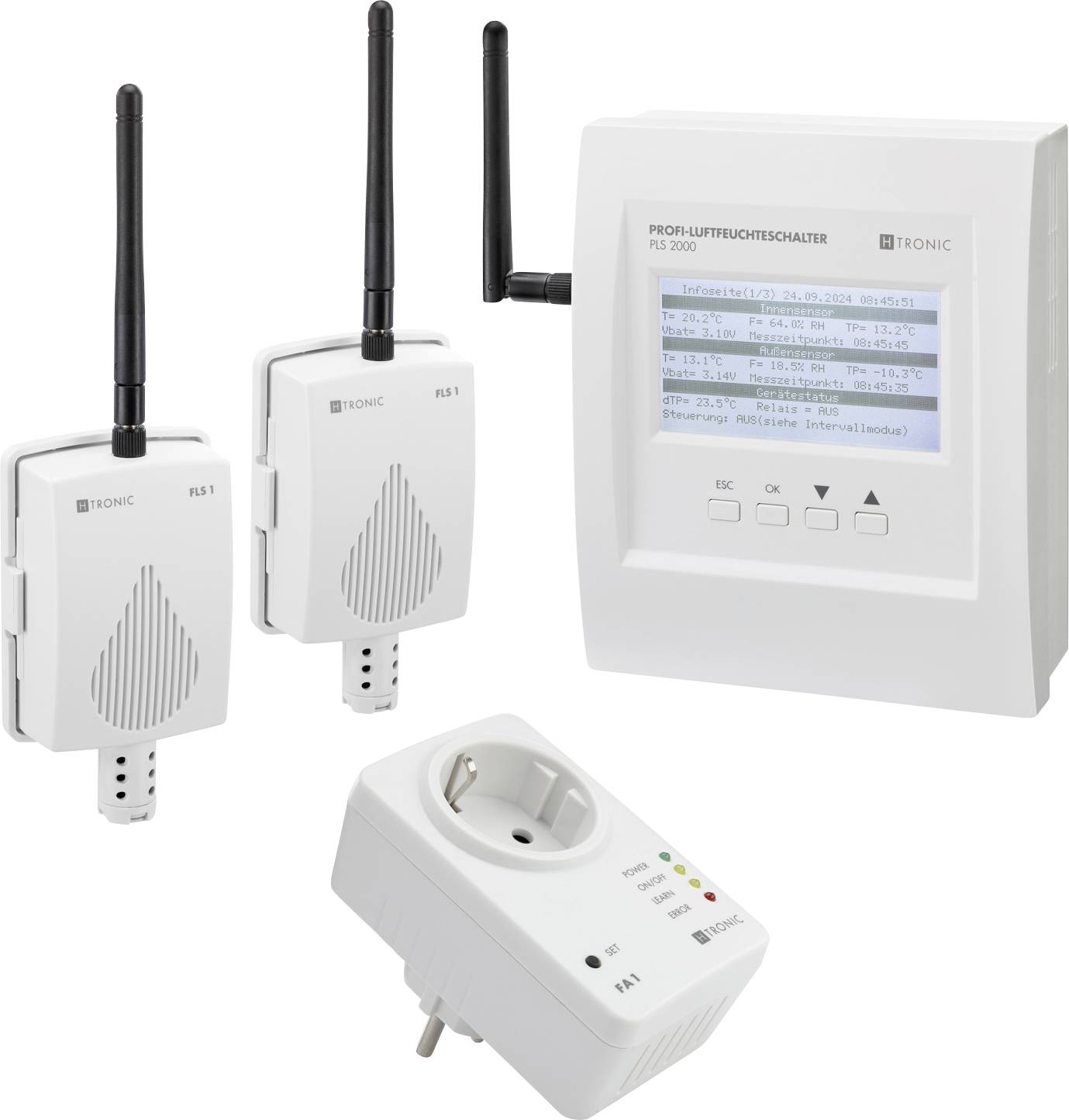

'Wireless humidity controller system with display, two sensors with antennas, and a plug-in receiver. For monitoring and control of indoor humidity.'

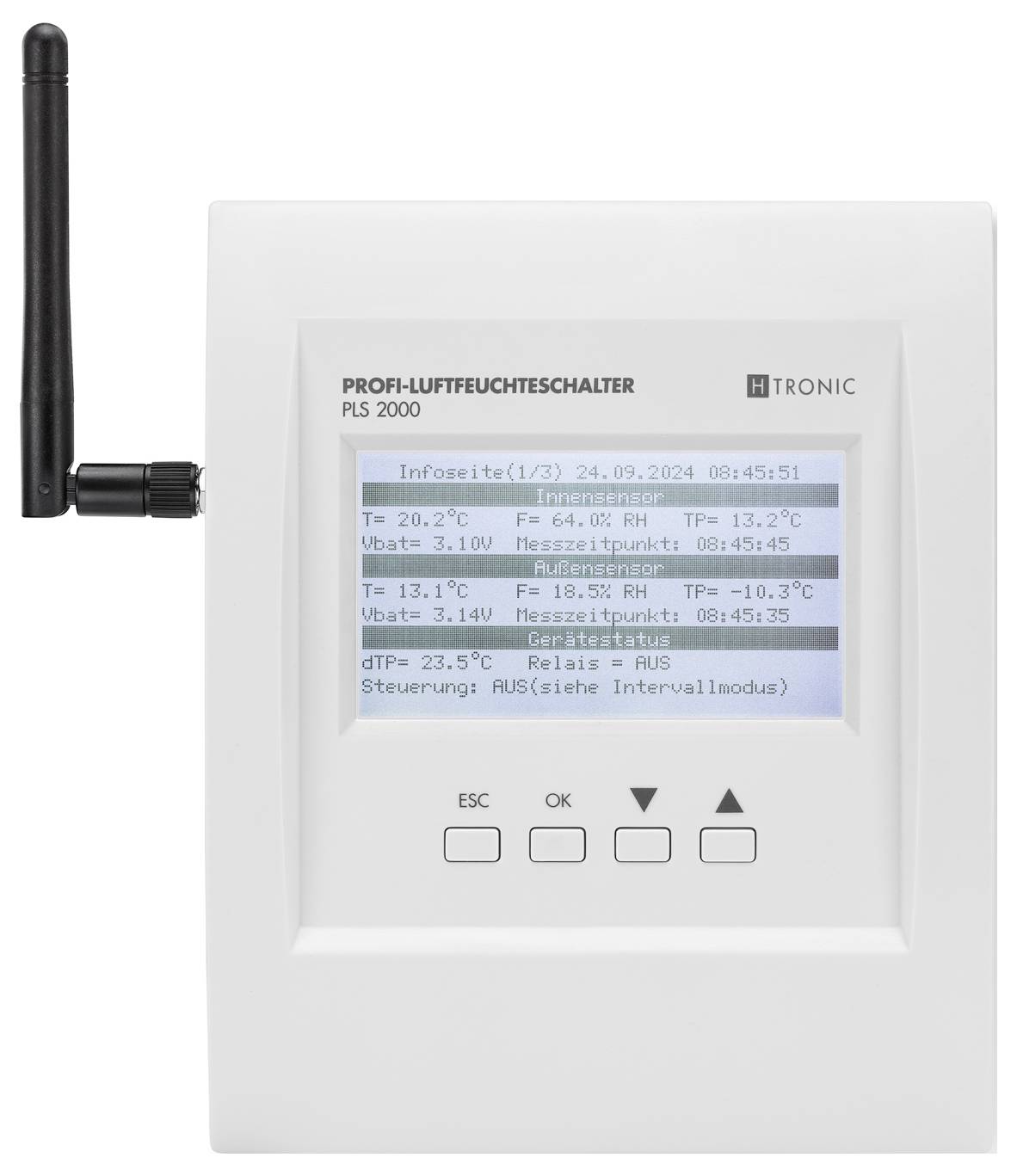

A digital humidity control device with an antenna, screen displaying temperature and humidity data, current status, and control options.

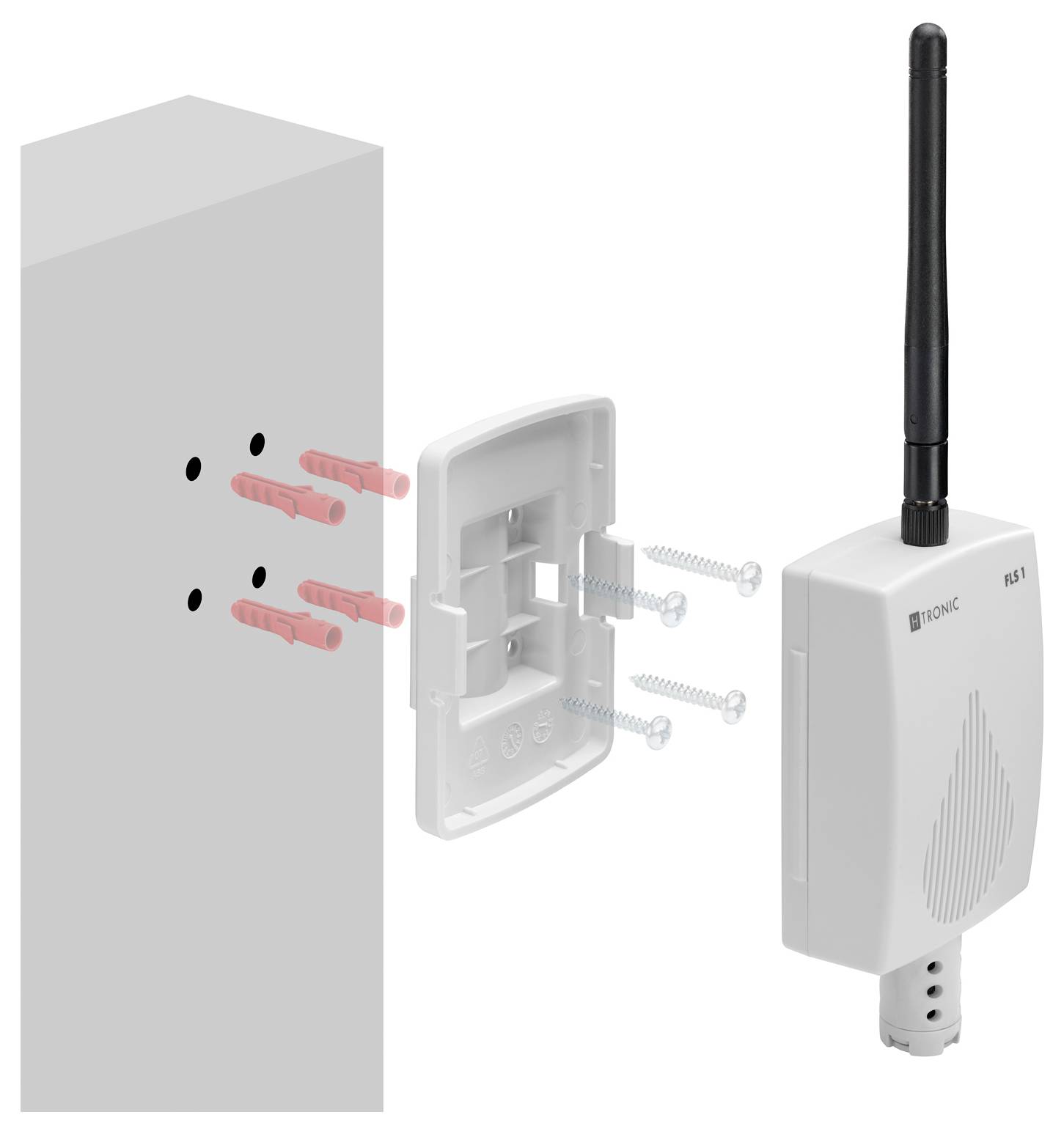

'Diagram showing the installation of a wall-mounted wireless router. Includes screws and wall anchors positioned for mounting.'

'A greenhouse with a PLS 2000 fan control system. Devices shown: control panel, two sensors, and a power socket. Text in German.'

1/4

Product type

Moisture sensor

Reading range (max.)

125 °C

Type

PLS2000

Operating voltage

230 V

Switching voltage (max.)

230 V AC

24 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 385.00 / piece)

€ 385.00

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Professional air humidity switch PLS 2000

Low installation cost – Ideal for rental properties and listed buildings
Measurement of temperature and humidity via 2 wireless sensors
Dew point-based control for efficient dehumidification
Control fans or window drives – wirelessly (max. 32 devices) or wired

Technical specifications

Product type: Moisture sensor

Type: PLS2000

Operating voltage: 230 V

Switching voltage (max.): 230 V AC
24 V DC

Switching current (max.): 16 A

Max. switching capacity: 3000 W
750 W

Reading range (min.): -40 °C

Reading range (max.): 125 °C

Reading range: -40 - 125 °C

Temperature reading range: -40 up to 125 °C

Humidity reading range (min.): 0 RH

Temperature reading range (max.): 125 °C

Temperature reading range (min.): -40 °C

: IP20

Min. temperature: 0 °C

Max. temperature: 50 °C

Content: 1 pc(s)

Length: 170 mm

Width: 140 mm

Height: 67 mm

Dim: (L x W x H) 170 x 140 x 67 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 3742080 H-Tronic Moisture sensor 1 pc(s) PLS2000 Reading range: -40 - 125 °C (L x W x H) 170 x 140 x 67 mm

User & Safety Instructions

User & Safety Instructions 3742080 H-Tronic Moisture sensor 1 pc(s) PLS2000 Reading range: -40 - 125 °C (L x W x H) 170 x 140 x 67 mm

Description

With the help of two radio humidity sensors the professional air humidity switch PLS 2000 measures the current relative humidity as well as the temperature in two surroundings and determines from this the respective dew points. With the help of these values different control of the humidity and temperature can be achieved. Consumers such as room fans or electric window motors can be switched either by means of a wireless actuator or directly via the integrated relay of the device. It is operated via four buttons and a clear display.

This text is machine translated.

Scope of delivery

Professional air humidity switch PLS 2000
Radio actuator FA1
2x wireless humidity sensor FLS1 (4 x AAA-batteries necessary – not included)
2x wall bracket for FLS1
User manual German / English

Hints

The professional humidity switch is not designed for safety-relevant applications. The device is intended for private and commercial use. Work on electronic components may only be carried out by qualified personnel.
