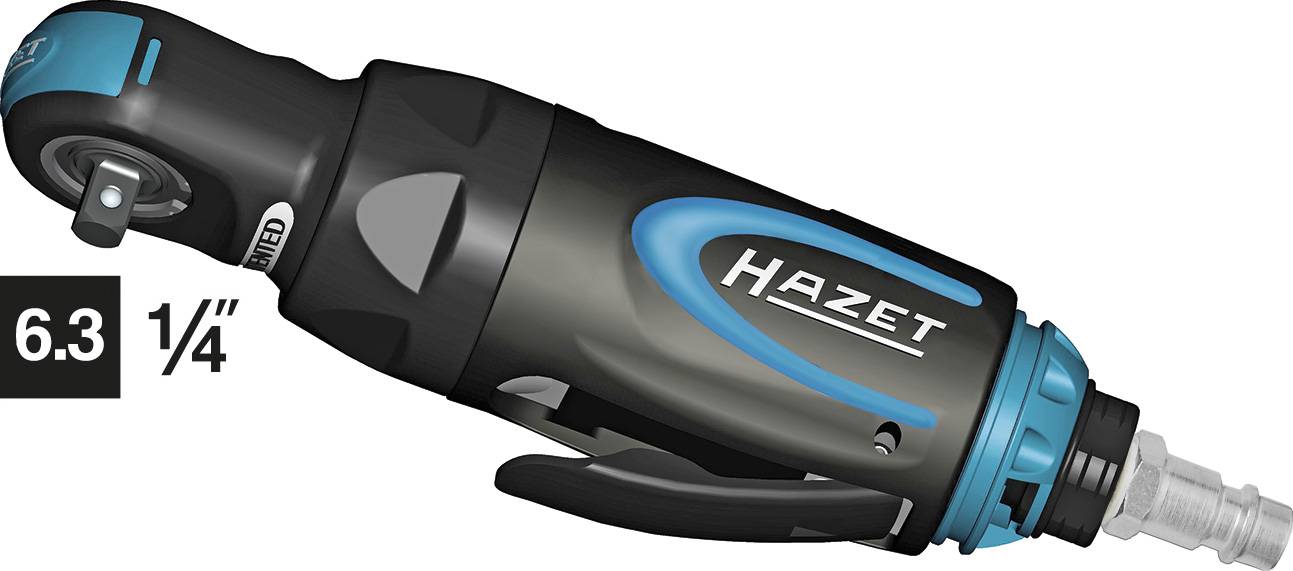

Hazet 9020P-2 Pneumatic forward/reverse ratchet 1/4" (6.3 mm) 6.3 bar
EAN:
Part number:
Item no:
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Technical specifications
- Product type
Pneumatic forward/reverse ratchet
- Tool holder
1/4" (6.3 mm)
- Air consumption
72 l/min
- Max. operating pressure
6.3 bar
- Rotational speed (max.)
250 U/min
- Weight
500 g
- Connector
1/4" (6,35 mm)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1287872 Hazet 9020P-2 Pneumatic forward/reverse ratchet 1/4" (6.3 mm) 6.3 bar
Description
For hand-bringing with torques ➔ 60 Nm. · 360° adjustable air output. · Completely closed head prevents the entry of chips or similar. . Low vibration. Technical characteristics: 6.3 mm (1/4 inch) · Square substantial. · Tightening torque max. Nm: 40. · Handle: cold insulating. · Coupling socket, normal diameter 7.2 (included). Air connection thread: 12.91 mm (1/4") · Sound pressure level Lp A: 90 dB (A). · Sound pressure level Lp W: 101 db (A). · Recommended hose diameter: 10 mm. · Revolutions/minute: 250 rpm. · Right/Linklslauf: infinitely variable (left/right). · Vibration Acceleration: 3.30 m/s2. · Operating pressure bar: 6.3.
Features
- For hand retightening with torque values > 60 Nm
- 360° exhaust (adjustable)
- Completely closed head avoids the entry of swarf etc
- Reduced vibrations
- Cold insulated handle
- Air inlet thread: 12,91 mm (1/4″)
- Coupler plug: nominal size 72 (included)
- Hose diameter (recommended): 10 mm
- Working pressure (bar): 63
- Sound power level: 101 db(A) Lp W
- Vibration acceleration: 330 m/s2
- Forward and reverse: single-stage (right/left)
- Total length (for eClass): 150 mm
- Output: Square, solid 63 mm (1/4 inch)
- Net weight: 05 kg
- Tightening torque max: 40
- Sound pressure level: 90 dB(A) Lp A
- Revolutions per minute: 250
- Air requirement: 72 l/min(12 l/sec)
Hints
This text is machine translated.
