Heat-shrink tubing that encloses three cables and tapers to separate two cables from each other. Cables are red, blue and yellow.

Heat-shrink tubing that encloses three cables and tapers to separate two cables from each other. Cables are red, blue and yellow.

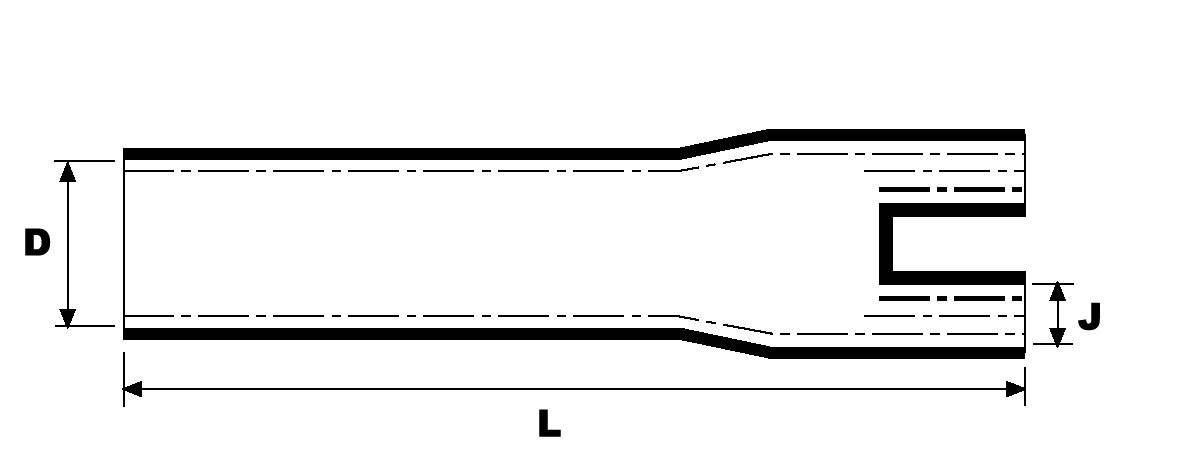

Technical drawing of a pipe adapter with indications of length (L), diameter (D) and notch depth (J).

1/2

Image similar

HellermannTyton

Product type

Heatshrink cable boot (2-way)

Nominal inside diameter (pre-shrinkage)

21 mm

Nominal diameter (post-shrinkage)

9.40 mm

Adhesive (yes/no)

Yes

Shrinkage

3:1

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

19 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

HellermannTyton 402-16039 216-3-B8W 1 pc(s) N/A

Our service for you

Technical specifications

Finger parts: 2

Product type: Heatshrink cable boot (2-way)

Nominal inside diameter (pre-shrinkage): 21 mm

Nominal diameter (post-shrinkage): 9.40 mm

Adhesive (yes/no): Yes

Factory colour: Black

Shrinkage: 3:1

Halogen-free: No

Material: Polyolefin (irradiated)

Width: 15 mm

Height: 20 mm

Length: 76.50 mm

Shrink temperature (max.): +135 °C

Shrink temperature (min.): +135 °C

Max. temperature: +100 °C

Min. temperature: -55 °C

Dim: (L x W x H) 76.50 x 15 x 20 mm

Manufacturer part #: 402-16039

Content: 1 pc(s)

RoHS-compliant: Yes

Type: 216-3-B8W

Certification: Det Norske Veritas

Material (details): Polyolefin, chemically cross-linked (PEX)

Type: Heat-shrink sealings, two-wire

Fire protection properties: Complies with ASTM D635

Type: 216 -3-B8W

Shrink temperature: +135 °C

Operating temperature: -55 - +70 °C

Temperature range: -55 - +70 °C

Documents & Downloads

Datasheet

Datasheet 544447 HellermannTyton 402-16039 216-3-B8W 1 pc(s) N/A

User & Safety Instructions

User & Safety Instructions 544447 HellermannTyton 402-16039 216-3-B8W 1 pc(s) N/A

Description

The wires are well sealed against moisture and other environmental influences, thanks to the internal coating with thermoplastic glue.

Features

Heat-shrink sealings, two-wire

Hints

Applications: strain relief for two, three and four-core cables when laying conventional cables according to VDE 0271 and 0272 (0.6-1 kV) in indoor and outdoor areas.

Description

The wires are well sealed against moisture and other environmental influences, thanks to the internal coating with thermoplastic glue.

Features

Heat-shrink sealings, two-wire

Hints

Applications: strain relief for two, three and four-core cables when laying conventional cables according to VDE 0271 and 0272 (0.6-1 kV) in indoor and outdoor areas.
