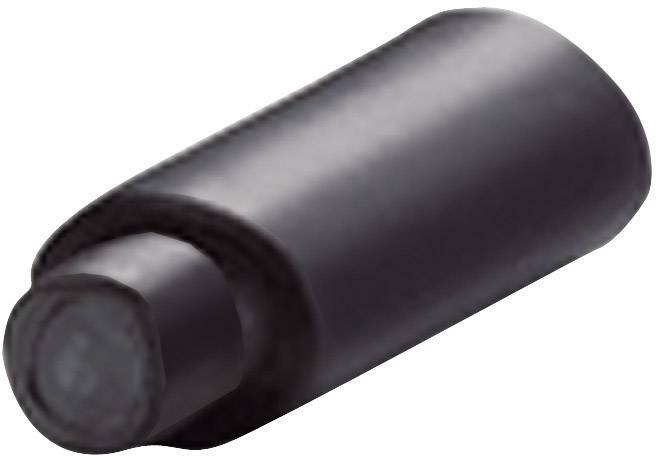

Buy HellermannTyton 416-00000 Heatshrink end cap Nominal inside diameter (pre-shrinkage): 3 mm 1 pc(s)

A black marker with a rounded cap lies at an angle on a white surface.

A cable with three coloured internal conductors (blue, brown, yellow-green), terminating in black connectors. Suitable for electrical installations.

A blue cable with several black and yellow heat-shrink sleeves that serve to insulate and cover cable connections.

1/3

Product type

Heatshrink end cap

Nominal inside diameter (pre-shrinkage)

3 mm

Nominal diameter (post-shrinkage)

1 mm

Adhesive (yes/no)

Yes

Shrinkage

3:1

Datasheet (PDF)

Fast track dispatch on Thu, 17 Sep

14114 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.53 / piece)

€ 2.65

plus VAT.

Report legal concerns

Highlights & Details

HellermannTyton 416-00000 Heatshrink end cap Nominal inside diameter (pre-shrinkage): 3 mm 1 pc(s)

Small size End Caps
Fast and easy application
With Inner adhesive layer for moisture sealing
3:1 shrink ratio
Different diameters for wide application range
Other lengths available on request

Our service for you

Technical specifications

Product type: Heatshrink end cap

Nominal inside diameter (pre-shrinkage): 3 mm

Nominal diameter (post-shrinkage): 1 mm

Adhesive (yes/no): Yes

Factory colour: Black

Shrinkage: 3:1

Halogen-free: No

Material: Polyolefin (irradiated)

Length: 25 mm

Shrink temperature (min.): +120 °C

Max. temperature: +125 °C

Min. temperature: -45 °C

Manufacturer part #: 416-00000

Content: 1 pc(s)

RoHS-compliant: Yes

Type: PEC-3/1-PEX-BK-L1

Wall thickness (post-shrinkage): 1 mm

Documents & Downloads

Datasheet

Datasheet 542462 HellermannTyton 416-00000 Heatshrink end cap Nominal inside diameter (pre-shrinkage): 3 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 542462 HellermannTyton 416-00000 Heatshrink end cap Nominal inside diameter (pre-shrinkage): 3 mm 1 pc(s)

Description

The PEC-Series can be applied fast and easy as standard heat shrink tube. The inner adhesive liner and the adhesive plug provide an excellent bond and protection from water ingress. The optimal shrink ratio of 3:1 and different diameters allow a wide range of application. Other diameters and lenghts are available on request. Pinched End Caps can be used for mechanical and
environmental protection of stub splices in electrical
harnesses. Due to the fast and easy installation, these caps can be used for non-electrical applications as well.
