Buy HellermannTyton FKH25-HIR-BK-C1 Cable mount Screw fixing 151-16250 for ribbon cable, impact-resistant Black 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

A black, rectangular plastic clip with a ribbed base and a hole in the centre, used for cable fastening.

A black, rectangular plastic clip with a ribbed base and a hole in the centre, used for cable fastening.

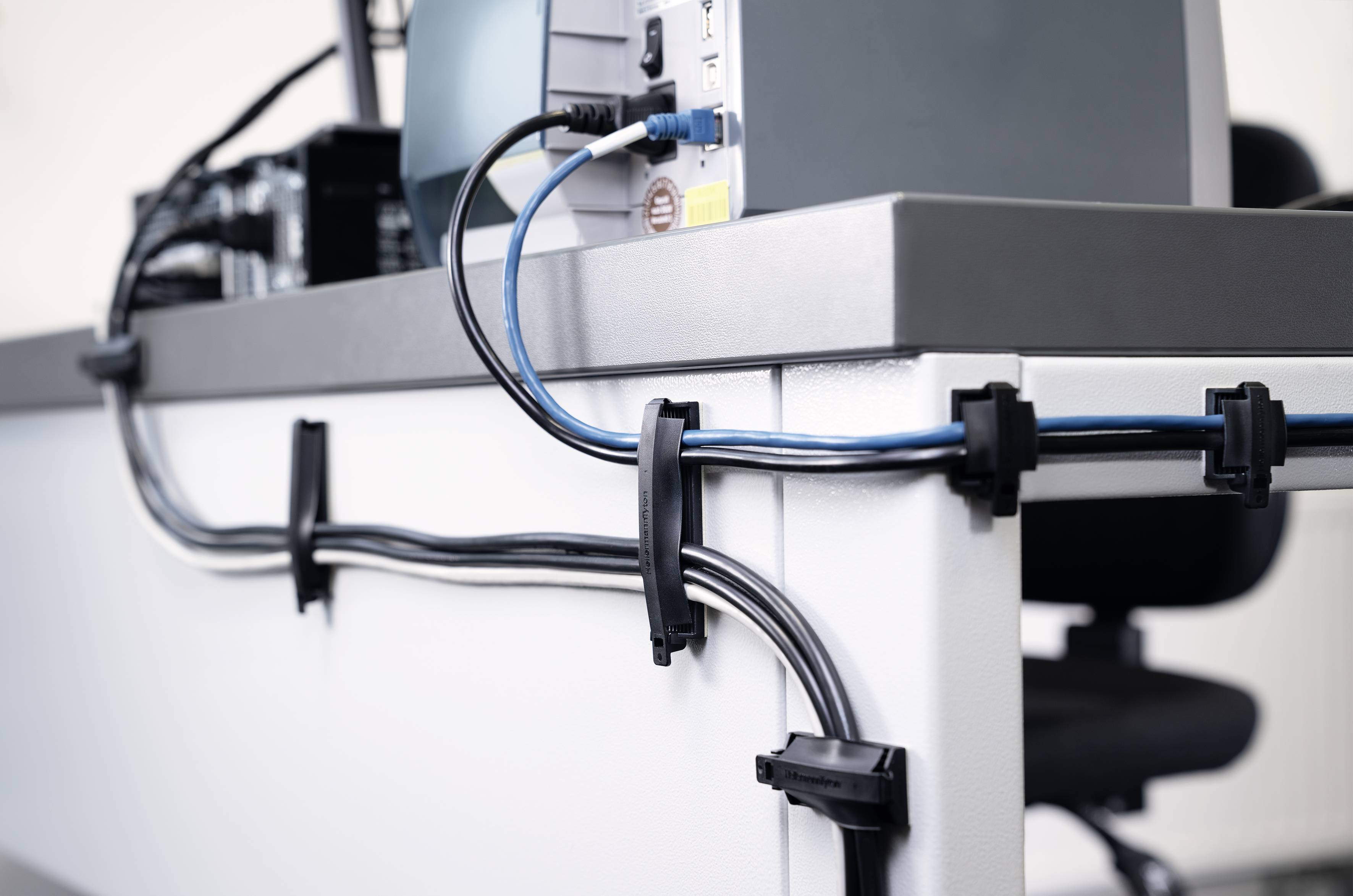

Cable management at a desk, with cables neatly secured using clips to prevent tangling and tripping.

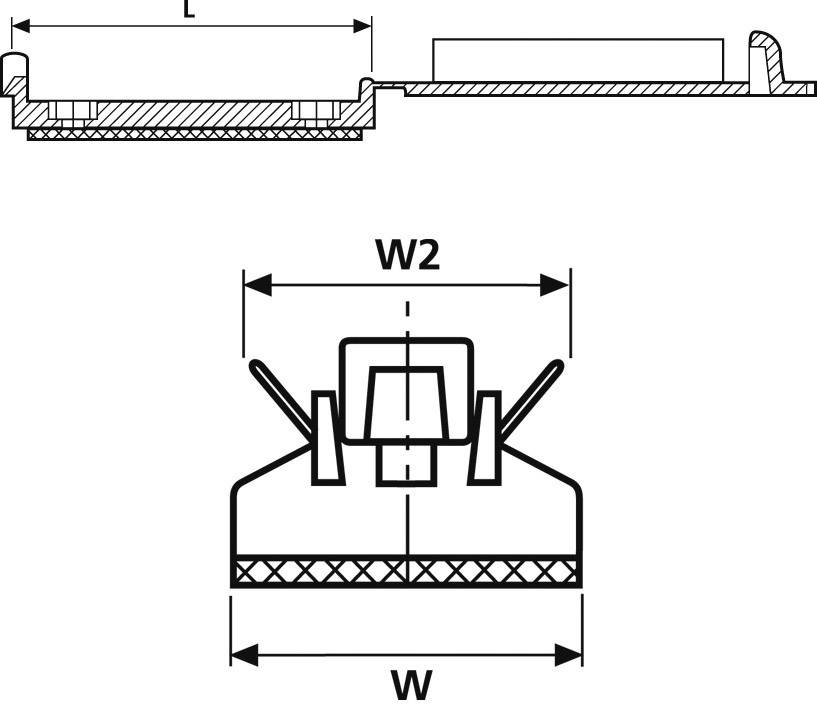

Cross-section of a cable entry with dimensions 'L', 'W2', and 'W'. Shows the structure and installation of the cable seal.

1/3

HellermannTyton

Product type

Cable mount

Fastening method

Screw fixing

Material

Polyamide 6.6

Features

for ribbon cable

impact-resistant

Min. temperature

-40 °C

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 28 Oct

1347 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.99 / piece)

€ 1.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

HellermannTyton FKH25-HIR-BK-C1 Cable mount Screw fixing 151-16250 for ribbon cable, impact-resistant Black 1 pc(s)

Black
Cable mount
Screw fixing

Our service for you

Technical specifications

Flame-retardant according to UL94 HB (without adhesive)

Product type: Cable mount

Features: for ribbon cable
impact-resistant

Fastening method: Screw fixing

Material: Polyamide 6.6

Min. temperature: -40 °C

Max. temperature: +80 °C

Mounting Ø (min.): 3.10 mm

Mounting Ø (max.): 3.10 mm

Factory colour: Black

Halogen-free: Yes

Content: 1 pc(s)

Manufacturer part #: 151-16250

Dimensions: (L x W x W2) 31 x 25 x 22 mm

Suitable for: Rounded surfaces

RoHS-compliant: Yes

Type: FKH25-HIR-BK-C1

Material (details): Polyamide 6.6 modified impact resistant (PA66HIR)

Type: w/o adhesive

Type: FKH25

Operating temperature: -40 - +80 ºC, short-term - +105 °C (500 h)

Documents & Downloads

Datasheet

Datasheet 547914 HellermannTyton FKH25-HIR-BK-C1 Cable mount Screw fixing 151-16250 for ribbon cable, impact-resistant Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 547914 HellermannTyton FKH25-HIR-BK-C1 Cable mount Screw fixing 151-16250 for ribbon cable, impact-resistant Black 1 pc(s)

Description

The flat ribbon cable clip can be attached with either high-quality acrylic tape or M3 screws. The handy quick lock/release allows you to quickly open and close the clamp. The flat ribbon cable clip is made of a high-quality, modified impact resistant polyamide 6.6 and can, therefore, be used in especially dry areas. The flat cable is routed and held securely due to the flat edges and the especially flexible wings.

Hints

Application: The flat ribbon cable clip is used wherever flat cables are applied, e.g. mechanical engineering and apparatus construction, in high-quality PCs and servers.

Description

The flat ribbon cable clip can be attached with either high-quality acrylic tape or M3 screws. The handy quick lock/release allows you to quickly open and close the clamp. The flat ribbon cable clip is made of a high-quality, modified impact resistant polyamide 6.6 and can, therefore, be used in especially dry areas. The flat cable is routed and held securely due to the flat edges and the especially flexible wings.

Hints

Application: The flat ribbon cable clip is used wherever flat cables are applied, e.g. mechanical engineering and apparatus construction, in high-quality PCs and servers.
