HellermannTyton FKH50-HIR-BK-C1 Cable mount Screw fixing 151-16500 for ribbon cable, impact-resistant Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable mount
Fastening method
Screw fixing
Material
Polyamide 6.6
Features
for ribbon cable
impact-resistant
Min. temperature
-40 °C
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Highlights & Details
HellermannTyton FKH50-HIR-BK-C1 Cable mount Screw fixing 151-16500 for ribbon cable, impact-resistant Black 1 pc(s)
- Black
- Cable mount
- Screw fixing
Our service for you
Technical specifications
- Flame-retardant according to UL94 HB (without adhesive)
- Product type
Cable mount
- Features
for ribbon cable
impact-resistant
- Fastening method
Screw fixing
- Material
Polyamide 6.6
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Mounting Ø (min.)
3.10 mm
- Mounting Ø (max.)
3.10 mm
- Factory colour
Black
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
151-16500
- Dimensions
(L x W x W2) 56.6 x 25 x 22 mm
- Suitable for
Rounded surfaces
- RoHS-compliant
Yes
- Type
FKH50-HIR-BK-C1
- Material (details)
Polyamide 6.6 modified impact resistant (PA66HIR)
- Type
w/o adhesive
- Operating temperature
-40 - +80 ºC, short-term - +105 °C (500 h)
Documents & Downloads
Datasheet
Datasheet 547938 HellermannTyton FKH50-HIR-BK-C1 Cable mount Screw fixing 151-16500 for ribbon cable, impact-resistant Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 547938 HellermannTyton FKH50-HIR-BK-C1 Cable mount Screw fixing 151-16500 for ribbon cable, impact-resistant Black 1 pc(s)
Description

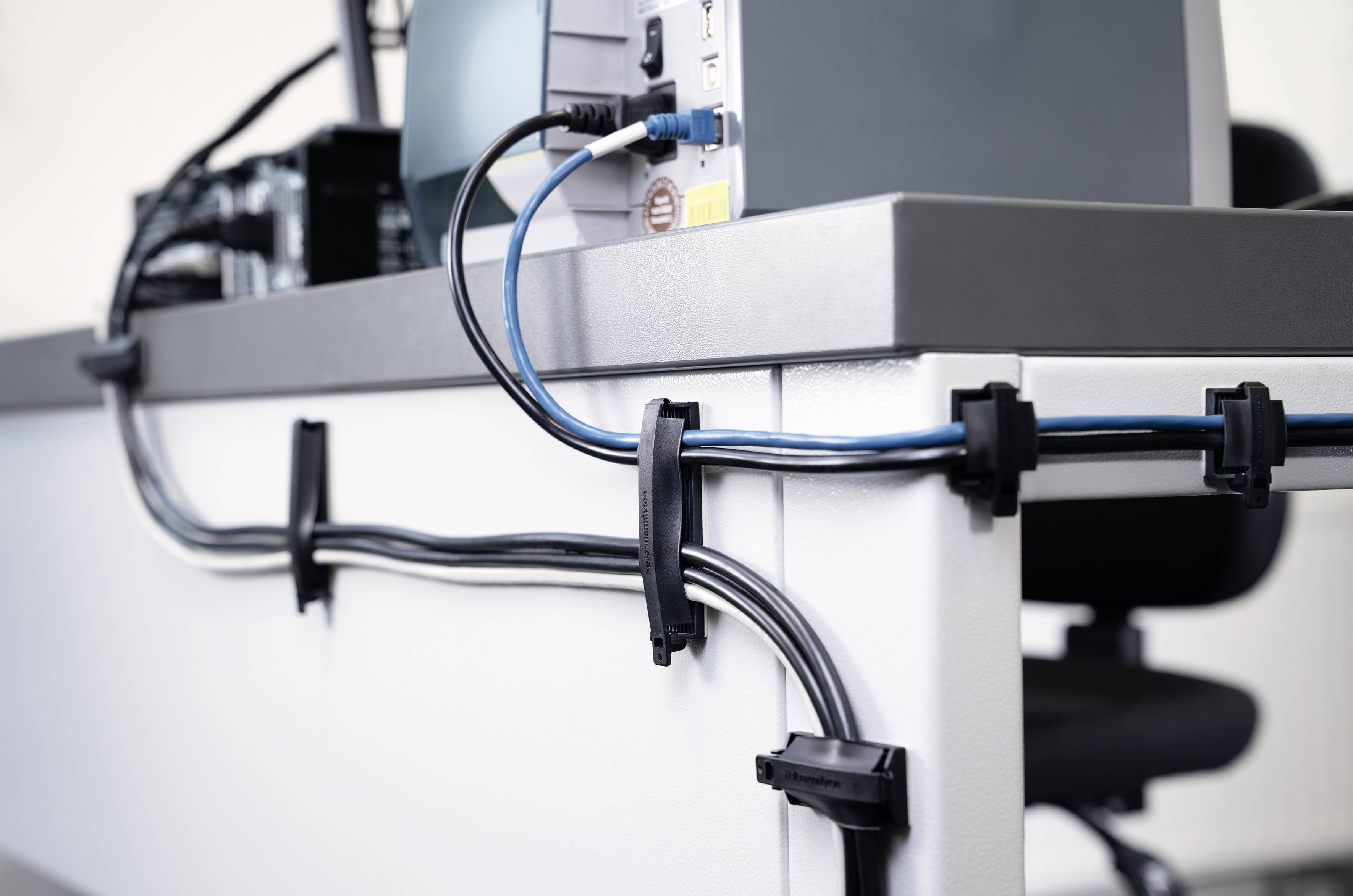

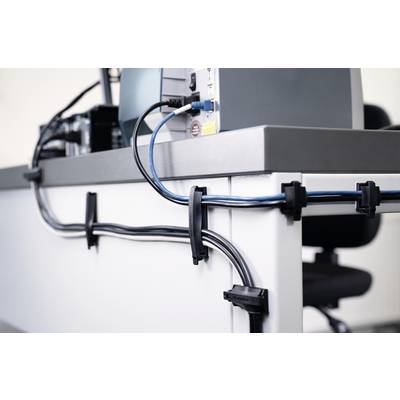

The flat ribbon cable clip can be attached with either high-quality acrylic tape or M3 screws. The handy quick lock/release allows you to quickly open and close the clamp. The flat ribbon cable clip is made of a high-quality, modified impact resistant polyamide 6.6 and can, therefore, be used in especially dry areas. The flat cable is routed and held securely due to the flat edges and the especially flexible wings.
Hints
Application: The flat ribbon cable clip is used wherever flat cables are applied, e.g. mechanical engineering and apparatus construction, in high-quality PCs and servers.
