HellermannTyton R1-PVC-BK-D1 Cradle clip 201-20010 Black 1 pc(s)

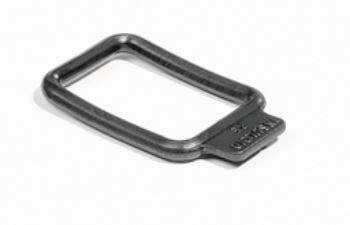

A rectangular metal ring with a flat base, on which 'OMEGA' is engraved, rests on a white surface.
Cable clips mounted on a metal rail secure colourful cables. Various black mounting brackets are lying nearby.
Rectangular drawing with dimensions. L1 and L2 denote the length, B1 the width, and H the height. Rectangle has an extension part.
1/3
Product type
Cradle clip
Fastening method
Screw fixing
Material
Polyvinylidene fluoride
Min. temperature
-35 °C
Max. temperature
+85 °C
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
204 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 3
Total (€ 0.54 / piece)
€ 1.62
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

HellermannTyton R1-PVC-BK-D1 Cradle clip 201-20010 Black 1 pc(s)

  • Black
  • Cradle clip

Our service for you

Technical specifications

  • Bore hole diameter 4.8mm
  • Flame retardant in accordance with UL94 V2
Product type

Cradle clip

Fastening method

Screw fixing

Material

Polyvinylidene fluoride

Min. temperature

-35 °C

Max. temperature

+85 °C

Factory colour

Black

Halogen-free

No

Content

1 pc(s)

Manufacturer part #

201-20010

Dimensions

(L1 x L2 x B1 x H) 16 x 22 x 23,8 x 3,2 mm

Width

23.8 mm

Length

22 mm

RoHS-compliant

Yes

Type

R1-PVC-BK-D1

Material (details)

Clip PVC

Fire protection properties

Tilde UL94 V2

Operating temperature

-35 - +85 ºC

Temperature range

-35 - +85 ºC °C

Documents & Downloads

Datasheet

Datasheet 546173 HellermannTyton R1-PVC-BK-D1 Cradle clip 201-20010 Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 546173 HellermannTyton R1-PVC-BK-D1 Cradle clip 201-20010 Black 1 pc(s)

Description

The versatile and reusable clips consist of two parts: The screwable cradle and the clip.

Scope of delivery

  • 1 clamping strap (without mounting clip).
  • This text is machine translated.

Hints

Cradle and clip have to be ordered separately!
