Hensel RK 0203 T Rail-mount adapter 93 x 93 x 62 Grey 1 pc(s)

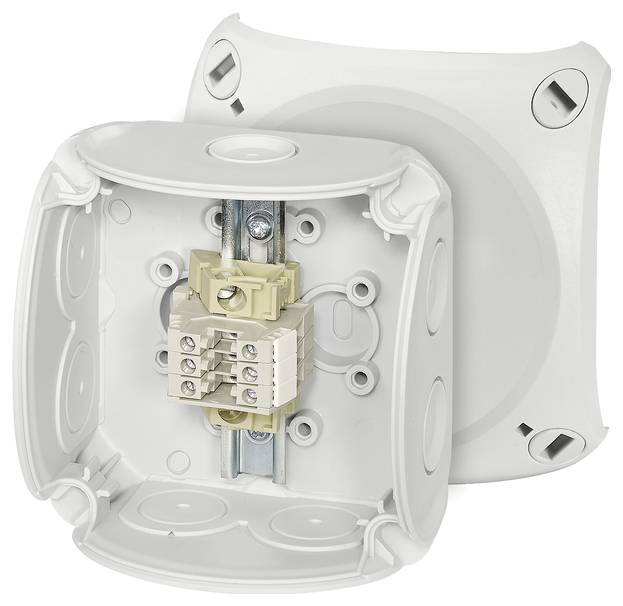

Electrical socket with open casing, revealing internal wiring and terminal block.

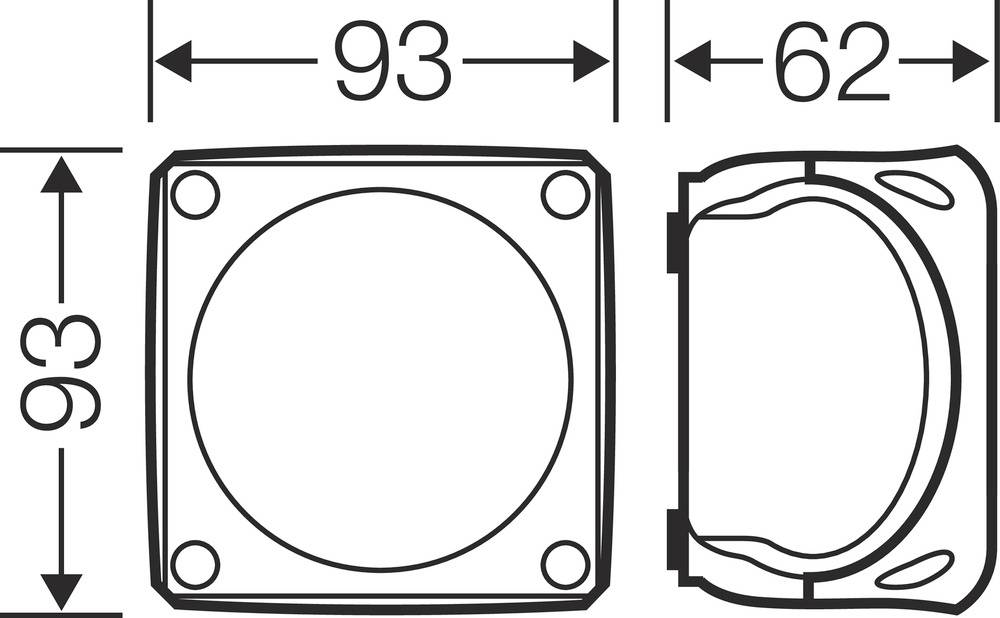

Dimensioned diagram of a square object with 93 mm side length. An additional measurement of 62 mm shows a component to the side.
1/2
Packaging type
Piece
Product type
Rail-mount adapter
Material
Thermoplastic
Width
93 mm
Height
62 mm
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 16.99 / piece)
€ 16.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Hensel terminal box 1.5-2.5qmm RK 0203 T

Our service for you

Technical specifications

  • Stackable: no.
  • Number of introductions: 7
  • Rated insulation voltage UI: 500 V.
  • Assembly: Terminal
  • Lid mounting: Screwed
  • Introduction from behind: Yes
  • Operating temperature: -25..40 °C.
  • Shape: Square
  • Max. Conductor cross-section 2 mm²
  • Surface: Untreated
  • IP66 protection rating
  • Pourable: no.
  • Casting compound supplied: no.
  • Material: Plastic
Packaging type

Piece

Product type

Rail-mount adapter

Features

square

Material

Thermoplastic

Factory colour

Grey

Type

Terminal box

Length

93 mm

Width

93 mm

Height

62 mm

Dimensions

93 x 93 x 62 mm

Content

1 pc(s)

Type

RK 0203 T

Dim

(L x W x H) 93 x 93 x 62 mm

RoHS-compliant

Yes

Manufacturer part #

62000171

Depth

62 mm

Mounting type

Surface-mount

Features

Halogen-free

Sealable

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2293211 Hensel RK 0203 T Rail-mount adapter 93 x 93 x 62 Grey 1 pc(s)

Description

Cable junction box made of high-quality thermoplastic with terminal blocks for aluminum and copper conductors. For surface-mounting applications in buildings or protected installation outdoors. With external straps for fixing and lid fixing via quick-release fasteners. With cover strap. With 3 terminal blocks up to 2.5 mm². Cable entry via elastic sealing membranes in housing walls and floor. Subsequent use of cable supports by removing the sealing membrane.
