Name: High Current Connectors HV M5/1 3049107 Phoenix Contact
Brand: Phoenix Contact
SKU: 566256
Availability: InStock

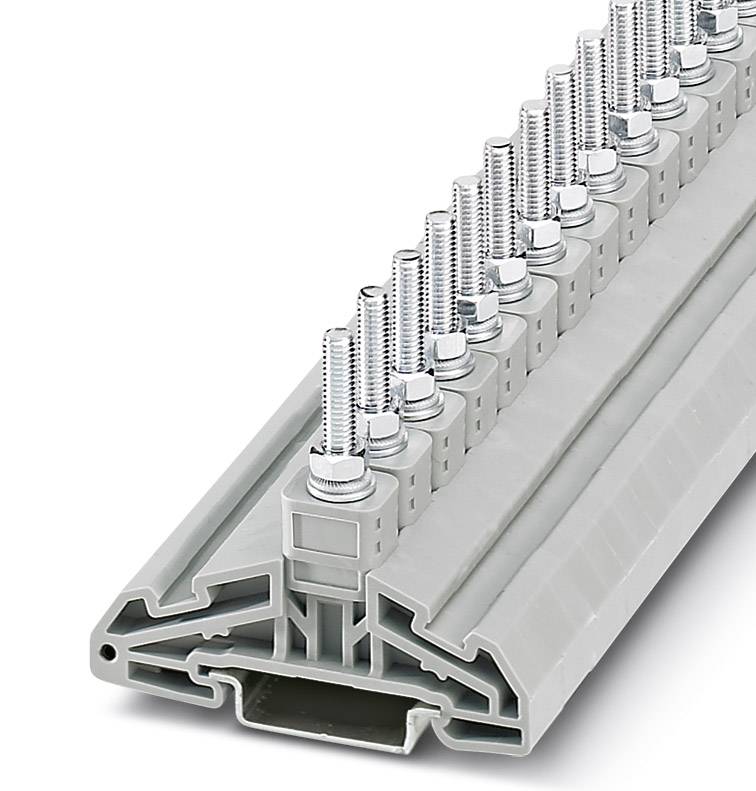

Row connectors with screw terminals on a power rail, suitable for mounting electrical components in a control cabinet.

Image similar

Packaging type

Piece

Product type

High power connector

Connection

Bolt fixings

Cross section (flexible) (max.)

16 mm²

Cross section (inflexible) (max.)

16 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

188 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 11.00 / piece)

€ 275.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: High power connector

Features: High current

Connection: Bolt fixings

Cross section (flexible) (min.): 0.1 mm²

Cross section (flexible) (max.): 16 mm²

Cross section (inflexible) (min.): 0.1 mm²

Cross section (inflexible) (max.): 16 mm²

AWG (min.): 27

AWG max.: 6

Clamp width: 13 mm

No. of rows: 1

Number of pins: 1

Factory colour: Grey

Nominal current: 76 A

Nominal current - rounded value: 76 A

Nominal voltage: 1000 V

Manufacturer part #: 3049107

Content: 25 pc(s)

Industrial packaging: Yes

Type: HV M5/1

Dim: (L x W x H) 67 x 13 x 55.5 mm

Width: 13 mm

Height: 55.5 mm

Length: 67 mm

Contamination level: 3

Flammability rating: V0

Connector colour: Grey

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 566256 High Current Connectors HV M5/1 3049107 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566256 High Current Connectors HV M5/1 3049107 Phoenix Contact

Description

High Current Connectors, Connection method: Bolt connection, Cross section: 0.1 mm² - 16 mm², AWG: 24 - 6, Width: 13 mm, Height: 55.5 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15

Description

High Current Connectors, Connection method: Bolt connection, Cross section: 0.1 mm² - 16 mm², AWG: 24 - 6, Width: 13 mm, Height: 55.5 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
