HIKVISION DS-2CD2646G2H-IZS(2.8-12mm)(eF) 311331184
EAN:
Part number:
Item no:
Number
Total (€ 382.35 / piece)
€ 382.35
plus VAT.
Highlights & Details

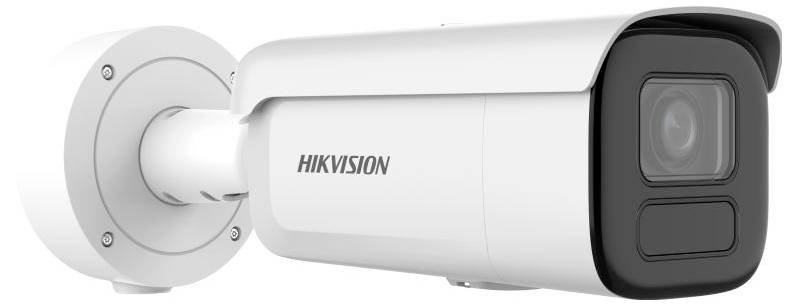

HIKVISION 311331184 DS-2CD2646G2H-IZS(2.8-12mm)(eF)
- 1/3" Progressive Scan CMOS((C) model)
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 lux @(F1.4, AGC ON), 0 lux with IR
- 25 fps/30 fps(2688×1520.1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC
- ICR
- EXIR
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- HIK-Connect cloud service
- Audio/alarm I/O
- 2.8mm-12mm
- This text is machine translated.
Technical specifications
- Sensor
1/3" Progressive Scan CMOS
- Series
ABUS Professional
- Resolution
4 MP (maximum 2688 × 1520 pixels)
- Light sensitivity
Colour: 0.001 Lux @ (F1.0, AGC ON), Black/White: 0 Lux with IR
- Operating voltage
12 VDC (± 25%) or PoE (IEEE 802.3at)
- Dim
(Ø x H) 140 mm x 144 mm
- Connections
1x RJ45 (10 M/100 M Ethernet)
Audio input/output (two-pin terminal block)
Alarm input/output
Slot for microSD/microSDHC/microSDXC memory cards up to 512 GB
- Range of uses
Suitable for outdoor use; the camera is water- and dust-proof (IP67) as well as vandalism-protected (IK10)
- No. of channels (details)
6
- Resolution (max.)
2688 x 1520 p
- External dimensions
Ø 140 mm × 333,8 mm
- Outside Ø
Ø 140 mm
- Operating temperature
-30 °C to 60 °C
- Aperture
F1.0
- Used at
Outdoors
- Weight
1490 g
- Factory colour
Multicolour
- IR coverage
60 m
- Additional IR light
Yes
- Impedance
4.7 KΩ (audio input) / 100 Ω (audio output)
- Camera type
Bullet camera
- Height
144 mm
- Length
333.8 mm
- (Ø)
140 mm
IP67
- Visible screen size (diagonal)
125,8° bis 39,4°
- Temperature range
Operation and start possible between -30 °C and 60 °C, at a humidity of 95 % or less (non-condensing) °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742921 HIKVISION DS-2CD2646G2H-IZS(2.8-12mm)(eF) 311331184
Description
Features
- Bullet
- Motorized Lens
- IP66
- IK10
- 4MP
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
