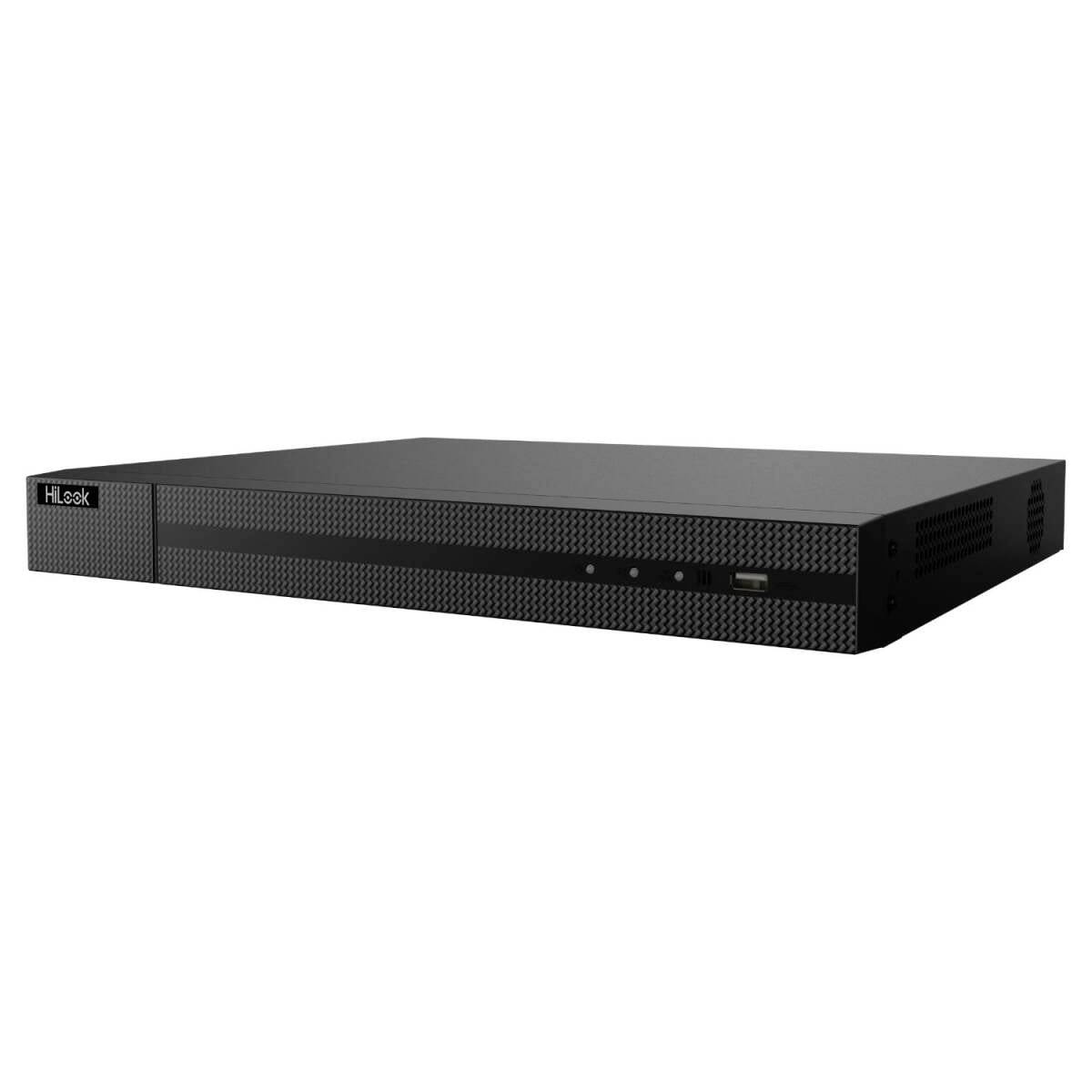

HiLook NVR-216MH-K/16P Network video recorder
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 382.35 / piece)
€ 382.35
plus VAT.
Only 2 Piece(s) available
HiLook by Hikvision network video recorder | 16-channel PoE | 4K AcuSense NVR | NVR-216MH-K/16P
Highlights & Details
- Supports up to 16 IP channels with 16 integrated PoE connections for simple plug & play installation; Advanced H.265+ compression Reduces the memory requirement by up to 75% and ensures efficient data processing; Intelligent video analysis: With 2-channel person and vehicle detection, 1-channel face detection and motion detection 2.0;HDMI output: With up to 4K UHD and VGA output for flexible video surveillance and high-quality playback; Two SATA interfaces: For HDD with up to 16 TB capacity per hard drive and up to 16-channel synchronous playback.
Technical specifications
- Product type
Network video recorder
- Signal standard
IP
- Channels
16
Documents & Downloads
Datasheet
Datasheet 3775799 HiLook NVR-216MH-K/16P Network video recorder
User & Safety Instructions
User & Safety Instructions 3775799 HiLook NVR-216MH-K/16P Network video recorder
Description
The powerful network video recorder has a total of 16 IP channels and 16 integrated PoE ports. The maximum decoding capacity includes two channels with 12 MP, four channels with 8 MP, eight channels with 4 MP or sixteen channels with 1080p resolution. It supports the video formats H.265+, H.265, H.264+ and H.264. The incoming bandwidth is 160 Mbps and thus enables the simultaneous operation of several high-resolution cameras.
Video output is supported by an HDMI connector with a maximum resolution of 4K (3840 × 2160) at 30 Hz and a VGA output of up to 1920 × 1080 at 60 Hz. The recorder supports synchronous playback of up to 16 channels simultaneously. As storage options two SATA-connections are available, which can each take up hard disks with a capacity of up to 16 TB.
The intelligent functions include motion detection 2.0, face recognition and perimeter analysis. In addition, up to 16 face libraries with a total of 20,000 stored faces can be managed. One RCA input and output are available for audio.
The recorder allows up to 128 simultaneous remote connections and supports the PoE standard IEEE 802.3af/at with a total power of up to 200 W. For the network connection, a RJ45 port (10/100/1000 Mbps) is available. In addition, the device has two USB 2.0 ports - one on the front and one on the rear. The alarm inputs and outputs are implemented with 4/1.
The device has dimensions of 385 × 315 × 52 mm and works reliably in a temperature range of 10 °C to +55 °C. It is certified according to CE, FCC, IC, CB, KC, UL, ROHS, REACH, WEEE, RCM UKCA, LOA AND BIS.
This text is machine translated.
Video output is supported by an HDMI connector with a maximum resolution of 4K (3840 × 2160) at 30 Hz and a VGA output of up to 1920 × 1080 at 60 Hz. The recorder supports synchronous playback of up to 16 channels simultaneously. As storage options two SATA-connections are available, which can each take up hard disks with a capacity of up to 16 TB.
The intelligent functions include motion detection 2.0, face recognition and perimeter analysis. In addition, up to 16 face libraries with a total of 20,000 stored faces can be managed. One RCA input and output are available for audio.
The recorder allows up to 128 simultaneous remote connections and supports the PoE standard IEEE 802.3af/at with a total power of up to 200 W. For the network connection, a RJ45 port (10/100/1000 Mbps) is available. In addition, the device has two USB 2.0 ports - one on the front and one on the rear. The alarm inputs and outputs are implemented with 4/1.
The device has dimensions of 385 × 315 × 52 mm and works reliably in a temperature range of 10 °C to +55 °C. It is certified according to CE, FCC, IC, CB, KC, UL, ROHS, REACH, WEEE, RCM UKCA, LOA AND BIS.
This text is machine translated.
