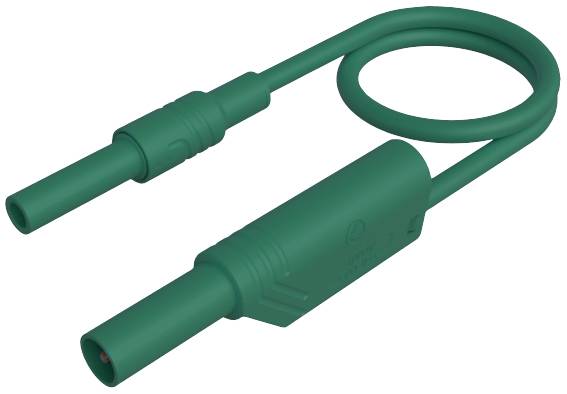

Hirschmann Test & Measurement MAL S WS-B 25/2,5 gn Safety test lead 4 mm safety jack 4 mm safety plug (stackable) 25 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.97
5
6% = € 0.48
€ 7.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.97 / piece)
€
Highlights & Details
Safety adapter measuring lead
- 25 cm Up to 1000V2.5 mm² cable cross-sectionSafety plug, stackable
Technical specifications
- Product type
Safety test lead
- Type A
4 mm safety jack
- Type B
4 mm safety plug (stackable)
- Cable length
25 cm
- Factory colour
Green
- Plug features
Nestable
Scoop-proof
- Material
PA
PVC
- Cable cross section
2.5 mm²
- Nominal voltage
1000 V
- Diameter/connectortype
4 mm
- Temperature range
-15 to 70 °C
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Jack diameter
4 mm
- Contact material
Ni
- Reading category
CAT II
- Type
MAL S WS-B 25/2,5 gn
Documents & Downloads
Datasheet
Datasheet 2621043 Hirschmann Test & Measurement MAL S WS-B 25/2,5 gn Safety test lead 4 mm safety jack 4 mm safety plug (stackable) 25 cm
User & Safety Instructions
User & Safety Instructions 2621043 Hirschmann Test & Measurement MAL S WS-B 25/2,5 gn Safety test lead 4 mm safety jack 4 mm safety plug (stackable) 25 cm
Description
Contact-proof adapter measuring lead according to IEC 61010, withFurther pluggable 4 mm safety plug as well as 4 mm safety socket. Highly flexible, double insulated stranded wire.
