Name: HN Power HNP12I-120L6 Mains PSU (fixed voltage) 12 V DC 1000 mA 12 W Regulated
Brand: HN Power
SKU: 1527557
Availability: InStock

Highlights & Details

Plug power supply HNP12I-120L6

12 V DC output voltage
For appliances with power ratings of up to 1000 mA;12 W
5.5/2.1 coaxial connector

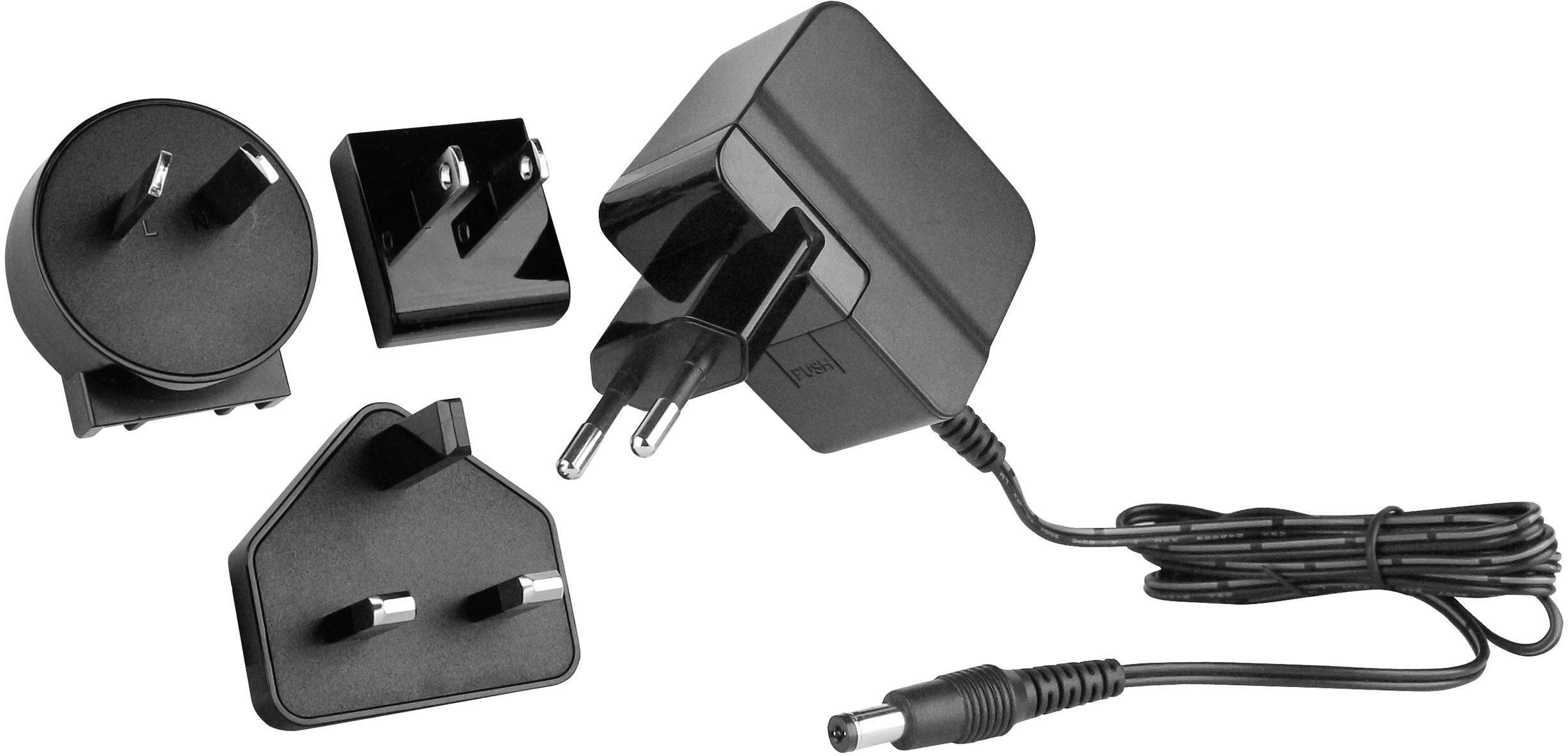

Exchangeable mains plug for world-wide operation

Technical specifications

Polarity DC plug: inside positive terminal
DC cable length: 1.50 m
Load loss:< 0,075 W

Product type: Mains PSU (fixed voltage)

Used at: Mains socket

Type: Pulsed

Max. output current: 1000 mA

Output voltage: 12 V DC

Output current (max.) - rounded: 1 A

Output: 5.5/2.1 coaxial connector

PSU features: Regulated

Input voltage: 115 V AC
230 V AC

: 12 W

Dim: (L x W x H) 56 x 27 x 73 mm

Connection: Euro plug

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 264 V AC

Min. input voltage: 90 V AC

EuP Status: Step 2

Weight: 67 g

Width: 27 mm

Height: 73 mm

Length: 56 mm

Type: HNP12I-120L6

Documents & Downloads

Datasheet

Datasheet 1527557 HN Power HNP12I-120L6 Mains PSU (fixed voltage) 12 V DC 1000 mA 12 W Regulated

User & Safety Instructions

User & Safety Instructions 1527557 HN Power HNP12I-120L6 Mains PSU (fixed voltage) 12 V DC 1000 mA 12 W Regulated

Description

Compact plug power supply for various power supply tasks. Examples for the supply are: Single Board Computer, wireless communication, peripherals, power plant technology, mobile equipment, tablets and smart phones, telecommunications.
Due to the very low idle speed loss, these power supplies as the ideal replacement power supply for devices with conventional transformer and long-control technology. Through the exchange you save energy and money.
The mains plug is exchangeable and thus enable a worldwide operation. Travel adapter are thus no longer necessary.

This text is machine translated.

Features

Removable power plugs for worldwide operation.
Plug-in switched-mode power supply
Double insulation
Compact design
Overload- and short circuit-proof
Minimal no-load loss
EU CoC V 5 Tier 2/ENERGY STAR DOE VI

Scope of delivery

4 MAINS PLUG (EU/UK/US/AU)
Data sheet
This text is machine translated.

Description

Compact plug power supply for various power supply tasks. Examples for the supply are: Single Board Computer, wireless communication, peripherals, power plant technology, mobile equipment, tablets and smart phones, telecommunications.
Due to the very low idle speed loss, these power supplies as the ideal replacement power supply for devices with conventional transformer and long-control technology. Through the exchange you save energy and money.
The mains plug is exchangeable and thus enable a worldwide operation. Travel adapter are thus no longer necessary.

This text is machine translated.
