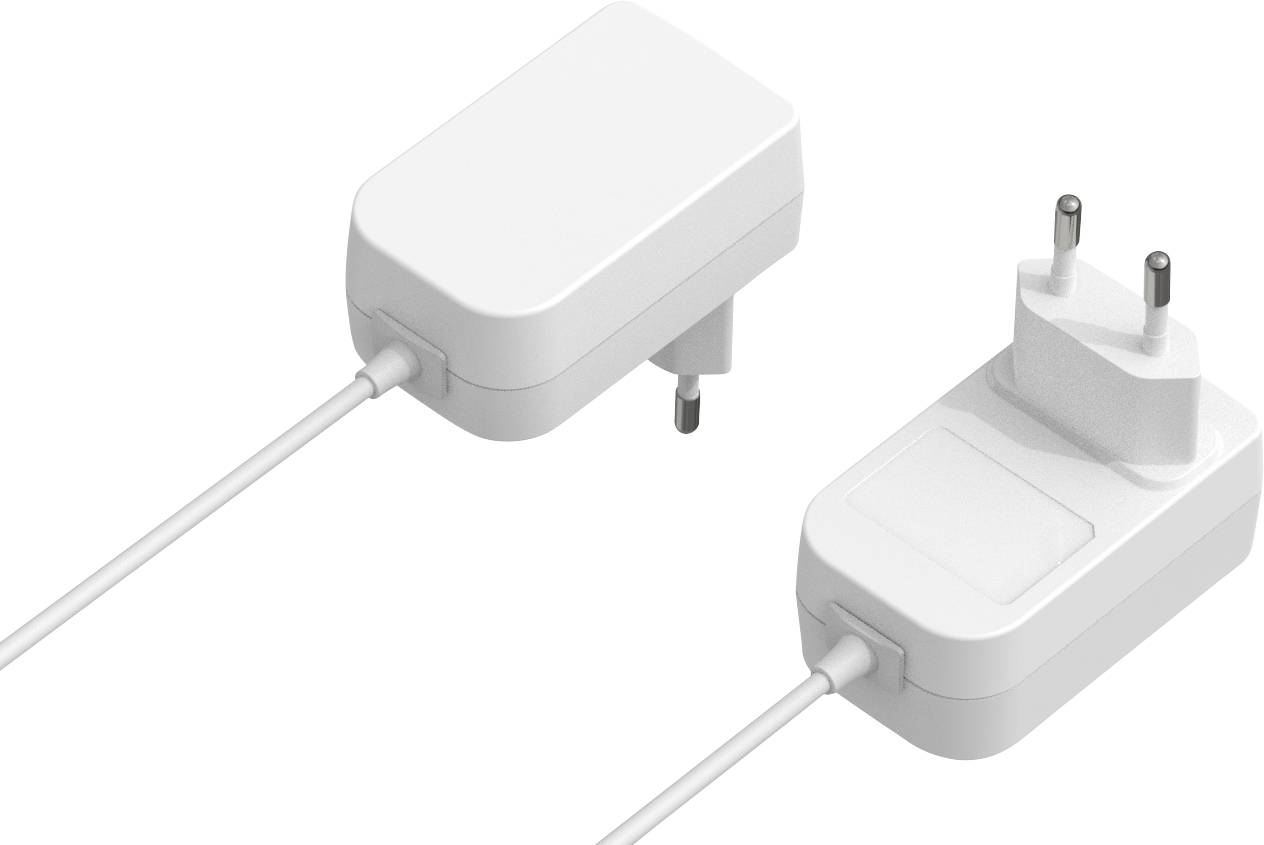

HN Power HNP30H-240 Mains PSU (fixed voltage) 24 V DC 1.25 A 30 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Highlights & Details
30 watt plug-in power supply Europe home 24V
- Double insulation
- Compact construction
- Overload- and short circuit-proof
- Minimum no-load loss
- Approved for household appliances
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Used at
Mains socket
Indoors
- Type
Plug power supply Europe Home
- Max. output current
1.25 A
- Output voltage
24 V DC
- Output current (max.) - rounded
1.25 A
- Output
5.5/2.1 coaxial connector
30 W
- Dim
(L x W x H) 69 x 41 x 28 mm
- Connection
Euro plug
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
240 V AC
- Min. input voltage
100 V AC
- Weight
125 g
- Cable length
1.5 m
- Width
41 mm
- Height
28 mm
- Length
69 mm
- Type
HNP30H-240
Documents & Downloads
Datasheet
Datasheet 3443369 HN Power HNP30H-240 Mains PSU (fixed voltage) 24 V DC 1.25 A 30 W
User & Safety Instructions
User & Safety Instructions 3443369 HN Power HNP30H-240 Mains PSU (fixed voltage) 24 V DC 1.25 A 30 W
Description
30 watt switched-mode power supply with 90-264 V/AC universal input.
These power supplies are in addition to the "normal" safety standard EN62368-1 also approved with the household appliances standard EN61558-2-16 (also known as transformer standard or earlier VDE 0570 part 2‑16) and are therefore especially suitable for use in the household - e.g. kitchen appliances, electrical. Toothbrushes, razors, fans, vacuum cleaners, massagers, Air purifier, etc.
This text is machine translated.
These power supplies are in addition to the "normal" safety standard EN62368-1 also approved with the household appliances standard EN61558-2-16 (also known as transformer standard or earlier VDE 0570 part 2‑16) and are therefore especially suitable for use in the household - e.g. kitchen appliances, electrical. Toothbrushes, razors, fans, vacuum cleaners, massagers, Air purifier, etc.
