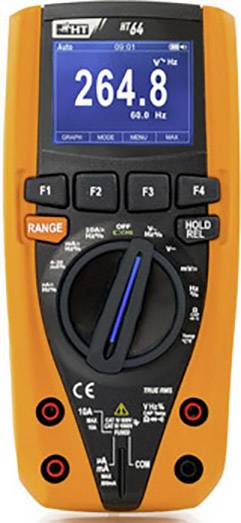

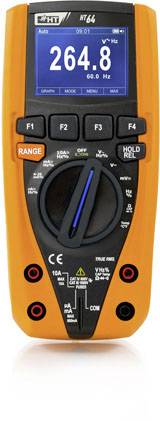

Name: HT Instruments HT64 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Brand: HT Instruments
SKU: 2176286
Availability: InStock

Highlights & Details

Professional TRMS multimeter up to 1000 V / CAT IV.

CAT III 1000 V, CAT IV 600 V

Technical specifications

Voltage reading range DC (min.): 0.1 mV

Product type: Handheld multimeter

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 0.1 mV

V AC reading range (max.): 1000 V

Amperage reading range DC (min.): 0.1 µA

A DC reading range (max.): 10 A

A AC reading range (min.): 0.1 µA

Amperage reading range AC (max.): 10 A

Reading range - resistance: 0.1 Ω - 60 MΩ

Reading range - capacity: 0.01nF - 6 mF

Frequency reading range: 0,001 Hz - 1 MHz

Temperature: -40 °C to +1350 °C

Measurement type (details): True RMS

Power supply (details): 1x 7.4 V rech.battery Li-Ion

Height: 55 mm

Width: 85 mm

Length: 175 mm

Weight: 400 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 1000 V
CAT IV 600 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: HT64

Display: Digital

Display (counts): 6000

Dim: (L x W x H) 175 x 85 x 55 mm

Features: Data logger

Documents & Downloads

Datasheet

Datasheet 2176286 HT Instruments HT64 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 6000

User & Safety Instructions

User & Safety Instructions 2176286 HT Instruments HT64 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 6000

Description

Our new professional multimeter series HT60 to HT64 is a precise TrueRMS multimeter, approved for measurements in the overvoltage category CAT IV 600 V or CAT III 1000 V. This multimeter series is with an extremely robust housing as well as a large, Clearly readable display and also offers a variety of multimeter measurement functions with a wide measurement range. The simple handling enables a precise execution of the measurement tasks even under extreme ambient conditions.

This text is machine translated.

Scope of delivery

Test lead pair with 4 mm test tips and alligator clips
K-type wire probe TK101 including adapter T10
Battery and charger
User manual
Protective case.

Description

Our new professional multimeter series HT60 to HT64 is a precise TrueRMS multimeter, approved for measurements in the overvoltage category CAT IV 600 V or CAT III 1000 V. This multimeter series is with an extremely robust housing as well as a large, Clearly readable display and also offers a variety of multimeter measurement functions with a wide measurement range. The simple handling enables a precise execution of the measurement tasks even under extreme ambient conditions.

This text is machine translated.
