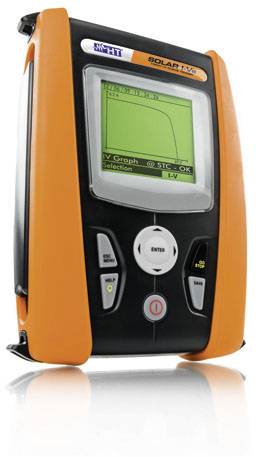

Name: HT Instruments SOLAR I-VE PV multimeter Digital Data logger, Environmental reading mode CAT II 1000 V, CAT III 300 V
Brand: HT Instruments
SKU: 1930359
Availability: BackOrder

Highlights & Details

SOLAR I-VECharacteristic analysator for PV modules/strings & 1-PHASE PV systems

CAT II 1000 V, CAT III 300 V
LCD with background lighting, 128 x 128 pixels
256 Kbytes, storable curves

Technical specifications

Solar radiation: 1.0 mV - 100.0 mV

Voltage reading range DC (min.): 15.0 V

Product type: PV multimeter

Voltage DC reading range (max.): 1499.9 V

V AC reading range (min.): 50 V

V AC reading range (max.): 265.0 V

Amperage reading range DC (min.): 50 mA

A DC reading range (max.): 1100 A

A AC reading range (min.): 10 mA

Amperage reading range AC (max.): 1200 A

Temperature: -20 to +100 °C

Basic accuracy: 0.5 %

Power supply (details): 6 x AA batteries

Height: 235 mm

Width: 165 mm

Length: 75 mm

Weight: 1400 g

: Manufacturer's standards (no certificate)

Reading category: CAT II 1000 V
CAT III 300 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: SOLAR I-VE

Display: Digital

Dim: (L x W x H) 75 x 165 x 235 mm

Features: Data logger
Environmental reading mode

Interfaces: USB
Wi-Fi

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1930359 HT Instruments SOLAR I-VE PV multimeter Digital Data logger, Environmental reading mode CAT II 1000 V, CAT III 300 V

User & Safety Instructions

User & Safety Instructions 1930359 HT Instruments SOLAR I-VE PV multimeter Digital Data logger, Environmental reading mode CAT II 1000 V, CAT III 300 V

Information

Information 1930359 HT Instruments SOLAR I-VE PV multimeter Digital Data logger, Environmental reading mode CAT II 1000 V, CAT III 300 V

Description

The SOLAR I-ve enables in addition to the performance analysis (AC & DC) of a 1-phase PV system also the determination of current-voltage-characteristic of photo-voltaic-single module or a module string upto max.1500V and 15 A (see also model I-V 500W).

This text is machine translated.

Features

The following values are directly on the screen of the SOLAR I-VE is displayed:
Peak capacity Pmax (by STC) and the currently measured performance
Short circuit current Isc, idle-run voltage Uoc
Current Impp and voltage Umpp
Bulk factor FF in %
A graphics's representation of the I-U and PWR characteristic curve for OPC and STC
The total outcome of testing
A voltage measurement into AC & DC
Current measurement in AC & DC
Power in AC and DC (only 1-phase systems)
Degree of efficiency of the inverter
Efficiency generator side
Temperature and solar radiation in W/m2)

Scope of delivery

Device protection case VA 500
Duo-Einstrahlungssensor HT 304
External Data Logger SOLAR-02
Temperature sensor PT300N
Inklinometer M 304
Four-conductor-Measuring cable KIT GSC 4
KITPV-MC3 measuring adapter KIT-MC3
KITPV-MC4 measuring adapter KIT-MC4
AC current transformer 200 A AC HT4005 K
DC current transformer 10 A/100 A AC HT4004N
6 x 1.5 V AA
USB-connection cable C 2006
Measure value memory for 200 Mess curves
CD-ROM with Auswertsoftware TOPVIEW*
User manual
Calibration protocol ISO 9000.
