Name: HTB UCFL 206 Flange bearing Grey iron Bore diameter 30 mm Hole spacing 117 mm
Brand: HTB
SKU: 197049
Availability: InStock

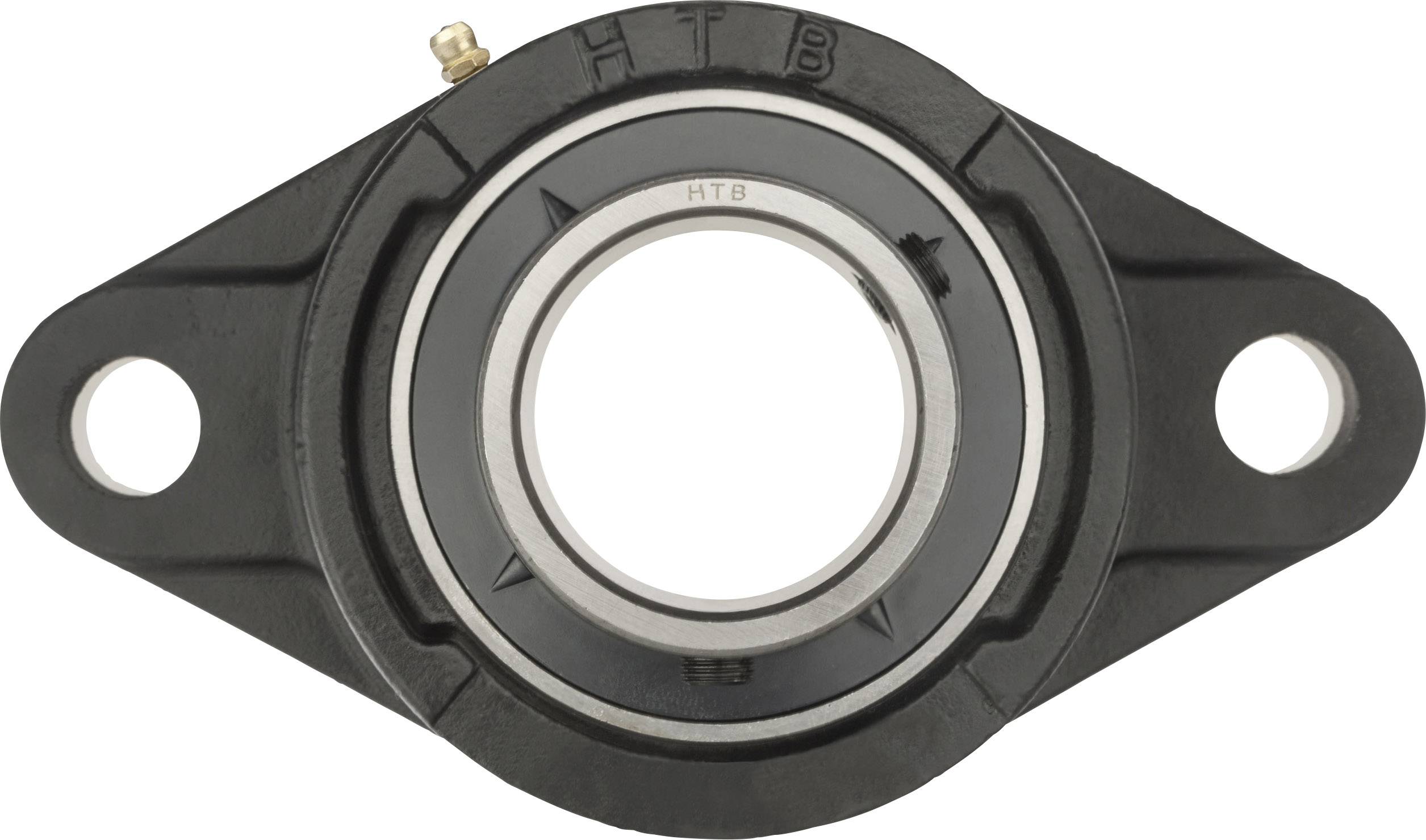

A bearing housing with an integrated ball bearing, typically used for mounting on machines or other structures.

Technical drawing of a bearing housing. Top left: Dimension lines; right: Cross-sectional view with measurements.

1/3

Image similar

Product type

Flange bearing

Bore Ø

30 mm

Enclosure material

Grey iron

Type

UCFL 206

Dim

(A x b x e x i x g x l x s x Z uc x n uc) 148 x 80 x 117 x 18 x 13 x 31 x 16 x 40.2 x 15.9 mm

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Type: UCFL 206

Product type: Flange bearing

Bore Ø: 30 mm

Enclosure material: Grey iron

Dim: (A x b x e x i x g x l x s x Z uc x n uc) 148 x 80 x 117 x 18 x 13 x 31 x 16 x 40.2 x 15.9 mm

Weight: 0.9 kg

Hole spacing: 117 mm

Dimensions: (A x b x e x i x g x l x s x Z uc x n uc) 148 x 80 x 117 x 18 x 13 x 31 x 16 x 40.2 x 15.9 mm

Width: 14.8 cm

Dynamic load rating (radial): 15400 N

Radial load rating: 10200 N

Documents & Downloads

Datasheet

Datasheet 197049 HTB UCFL 206 Flange bearing Grey iron Bore diameter 30 mm Hole spacing 117 mm

User & Safety Instructions

User & Safety Instructions 197049 HTB UCFL 206 Flange bearing Grey iron Bore diameter 30 mm Hole spacing 117 mm

Description

For simple bearings as e.g. in agricultural machinery, conveyor systems, construction machines The UCFL unit consists of a sealed bearing and a housing of pedestal bearing made of cast iron The attachment of shaft is done by means of stud screws at the inner ring. Misalignments at the shaft can become balanced by the spherical exterior surface of the bearing

Hints

Housing Bearing units have bearing inserts with spherical (balligen) outer ring. The seat is hohlkugelig. Therefore escape housing bearing units, angle errors are balanced.

The bearing in the housing can be up to approx. 4° - 6° in alignment.

The housing bearing is applied at the mounting of the two shaft ends of self-correct polarity. Therefore, it is not necessary that the units in the delivery condition exactly aligned.

Description

Hints

Housing Bearing units have bearing inserts with spherical (balligen) outer ring. The seat is hohlkugelig. Therefore escape housing bearing units, angle errors are balanced.

The bearing in the housing can be up to approx. 4° - 6° in alignment.

The housing bearing is applied at the mounting of the two shaft ends of self-correct polarity. Therefore, it is not necessary that the units in the delivery condition exactly aligned.
