Name: HTB UCFL 204 Flange bearing Grey iron Bore diameter 20 mm Hole spacing 90 mm
Brand: HTB
SKU: 197022
Availability: InStock

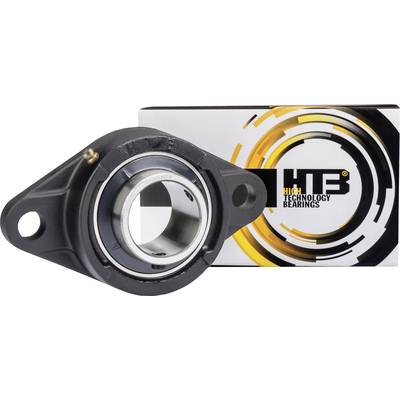

A bearing housing with an integrated ball bearing, typically used for mounting on machines or other structures.

Technical drawing of a bearing housing. Top left: Dimension lines; right: Cross-sectional view with measurements.

1/3

Product type

Flange bearing

Bore Ø

20 mm

Enclosure material

Grey iron

Type

UCFL 204

Dim

(A x b x e x i x g x l x s x Z uc x n uc) 113 x 60 x 90 x 15 x 11 x 25.5 x 12 x 33.3 x 12.7 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

49 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 10.99 / piece)

€ 10.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: UCFL 204

Product type: Flange bearing

Bore Ø: 20 mm

Enclosure material: Grey iron

Dim: (A x b x e x i x g x l x s x Z uc x n uc) 113 x 60 x 90 x 15 x 11 x 25.5 x 12 x 33.3 x 12.7 mm

Weight: 0.45 kg

Features: Flange

Hole spacing: 90 mm

Dimensions: (A x b x e x i x g x l x s x Z uc x n uc) 113 x 60 x 90 x 15 x 11 x 25.5 x 12 x 33.3 x 12.7 mm

Width: 60 mm

Dynamic load rating (radial): 10100 N

Radial load rating: 6300 N

Documents & Downloads

Datasheet

Datasheet 197022 HTB UCFL 204 Flange bearing Grey iron Bore diameter 20 mm Hole spacing 90 mm

User & Safety Instructions

User & Safety Instructions 197022 HTB UCFL 204 Flange bearing Grey iron Bore diameter 20 mm Hole spacing 90 mm

Description

For simple bearings as e.g. in agricultural machinery, conveyor systems, construction machines The UCFL unit consists of a sealed bearing and a housing of pedestal bearing made of cast iron The attachment of shaft is done by means of stud screws at the inner ring. Misalignments at the shaft can become balanced by the spherical exterior surface of the bearing

Hints

Housing Bearing units have bearing inserts with spherical (balligen) outer ring. The seat is hohlkugelig. Therefore escape housing bearing units, angle errors are balanced.

The bearing in the housing can be up to approx. 4° - 6° in alignment.

The housing bearing is applied at the mounting of the two shaft ends of self-correct polarity. Therefore, it is not necessary that the units in the delivery condition exactly aligned.

Description

Hints

Housing Bearing units have bearing inserts with spherical (balligen) outer ring. The seat is hohlkugelig. Therefore escape housing bearing units, angle errors are balanced.

The bearing in the housing can be up to approx. 4° - 6° in alignment.

The housing bearing is applied at the mounting of the two shaft ends of self-correct polarity. Therefore, it is not necessary that the units in the delivery condition exactly aligned.
