Name: i-tec USB-C® docking station I-TEC USB-C Metal Ergonomic 4K 3x Disply
Brand: i-tec
SKU: 3290769
Availability: InStock

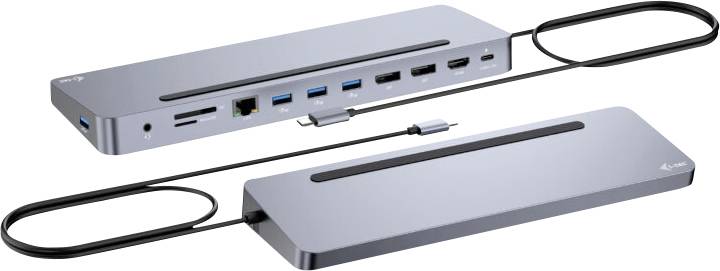

A silver docking station device with multiple ports, including USB, HDMI, and Ethernet connections. A connected USB cable is visible.

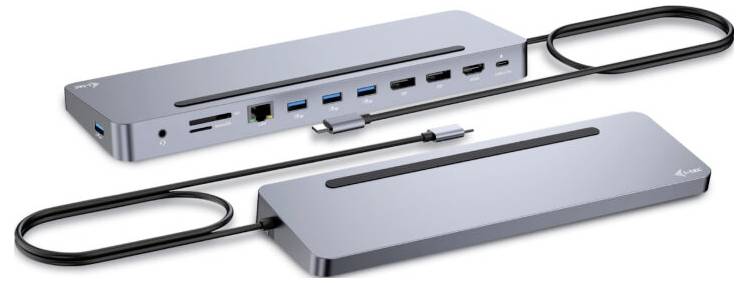

Silver laptop docking station with multiple ports: USB, HDMI, Ethernet and SD card reader. Connection cable with USB-C connector.

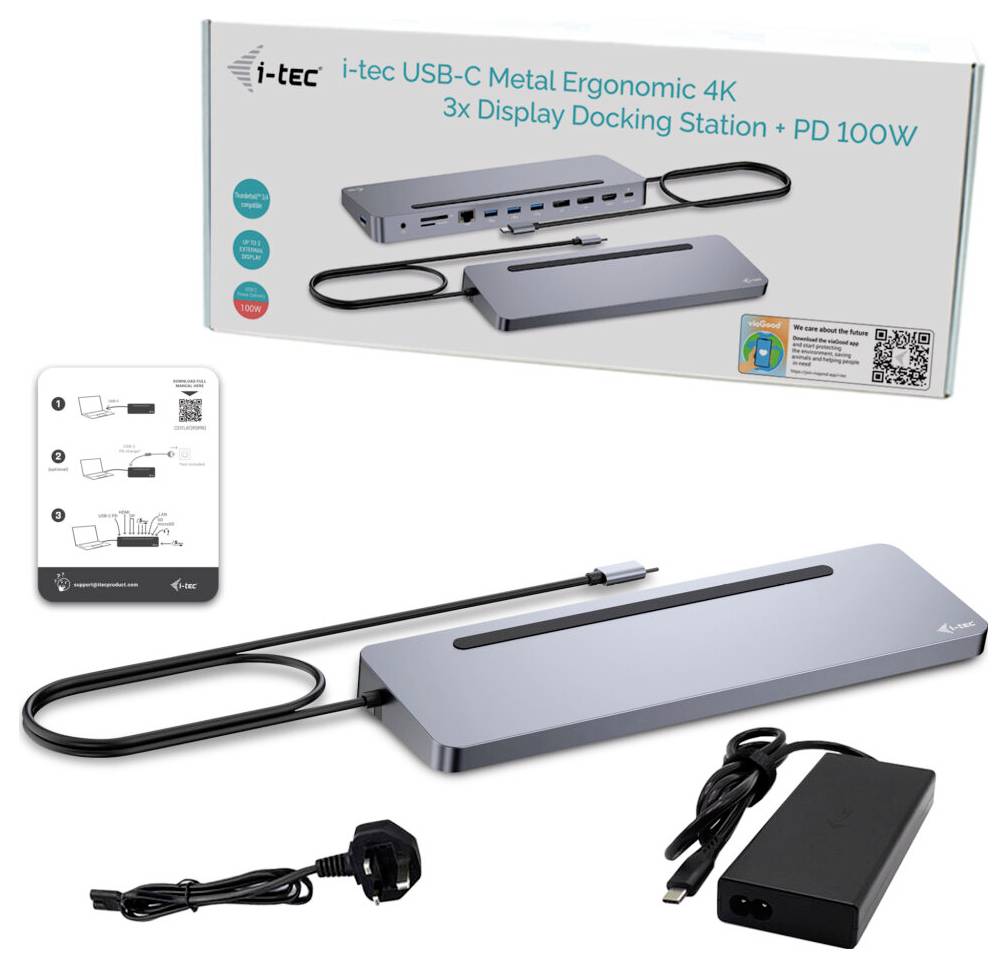

A USB-C docking station with 3 display ports, ergonomic design and 100W power. Packaging and accessories are shown.

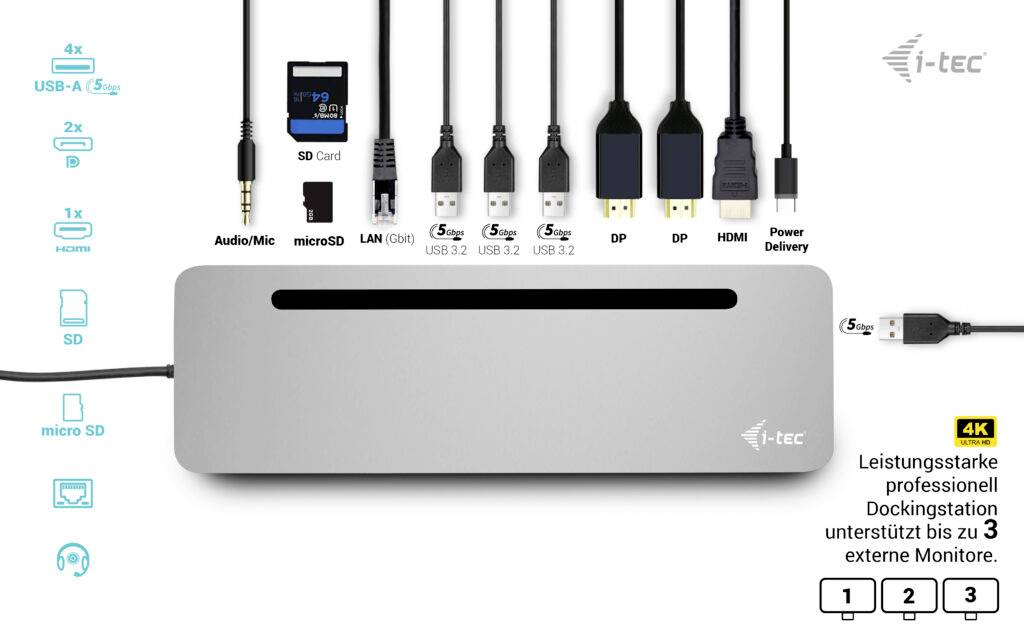

A docking station with multiple ports: USB-A, USB-C, Audio/Mic, microSD, LAN, SD, USB 3.0, DP, HDMI, Power Delivery. Supports up to 3 monitors.

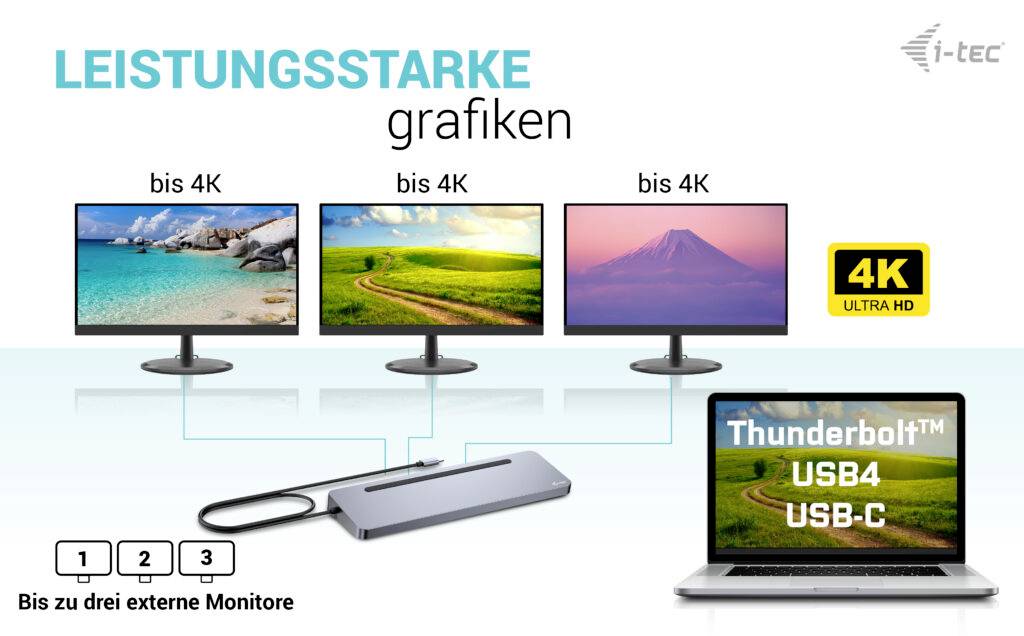

'High-performance graphics' shows three monitors, all up to 4K, connected via a hub to a laptop with 'Thunderbolt™ USB4 USB-C'.

Laptop with USB port shows data transfer of 480 Mbps and 5 Gbps. Text: 'All USB ports support super-fast data transfer up to 5 Gbps'.

A laptop with backup software on the screen, next to a USB stick, an external hard drive and data symbols. Text: 'Back up your data with ease'.

'Charging up to 100 W' shows a device with a power socket and a laptop. A battery symbol indicates power supply. 'Mains adapter not included.'

1/10

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 79.99 / piece)

€ 79.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

i-tec C31FLAT2PDPRO USB-C® docking station

Connection A (or inputs): USB-C® USB 3.2 (1st Gen)
Connecton B (or outputs): USB 3.2 1st Gen port A (USB 3.0), USB 3.2 1st Gen port C (USB 3.0), LAN (10/100/1000 Mbps), HDMI®, DisplayPort socket, Headphones/mic combo (3.5 mm jack)
No. of supported monitors:
Maximum resolution:
Key features:

Technical specifications

Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Number of ports Type A: 4
USB 3.2 Gen 1 (3.1 Gen 1) Number of C-type connectors: 1
Transmission technology: Cable-bound
Number of Ethernet LAN connections (RJ-45): 1
Number of HDMI connections: 1
Number of DisplayPort connections: 2
Combined headphone/microphone connection: Yes
Operating temperature: 0 - 40 °C
Operating relative humidity: 10 - 100%
Width 270 mm
Depth: 85 mm
Height: 23 mm
Weight: 268 g
USB cable length: 0.6 m
Product color: Silver
Data transfer rate 5 Gbps
Number of display supported: 3
Integrated card reader: Yes
Compatible memory cards: MicroSD (TransFlash), SD
User manual: Yes
USB Power delivery: Yes
USB power supply up to 100 W
Ethernet LAN data transfer rates of 10,100,1000 Mbit/s.
Ethernet/LAN: Yes
Supports Windows operating systems: Yes
Supports Mac operating systems: Yes
Supported Linux operating systems: Yes
Support for other operating systems: Android, ChromeOS

Product type: USB-C® docking station

Type A: USB-C® USB 3.2 (1st Gen)

Type B: USB 3.2 1st Gen port A (USB 3.0)
USB 3.2 1st Gen port C (USB 3.0)
LAN (10/100/1000 Mbps)
HDMI®
DisplayPort socket
Headphones/mic combo (3.5 mm jack)

Suitable for: MacBook
iPad
Universal

Cable length: 0.6 m

Factory colour: Silver

Width: 270 mm

Height: 23 mm

Depth: 85 mm

Weight: 268 g

Dim: (W x H x D) 270 x 23 x 85 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3290769 i-tec USB-C® docking station I-TEC USB-C Metal Ergonomic 4K 3x Disply

Description

Ergonomic USB-C metal dock with support for up to 3 external monitors. The dock is compatible with any laptop equipped with a USB-C or Thunderbolt port (the 60 cm integrated cable is long enough to connect all laptops with screens up to 15″). The dock offers 4 USB ports, reliable and fast connectivity to corporate networks thanks to the built-in LAN port and a power supply of up to 100 W. The dock design also allows it to be used as a laptop stand.

The docking station is available in two versions:
1. Without the supplied USB-C charging adapter (product code C31FLAT2PDPRO)
2. With the supplied 100W adapter (product code C31FLAT2PDPRO100W/UK).

- Connect up to three external monitors with up to 4K resolution*.
- Power: Up to 100 W.
- Offers 2x DisplayPort and HDMI
- 4x USB 3.2 (5 Gbps) ports enable easy connection of USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust and fast Internet connections with support for 10/100/1000 Mbps
- Combined front-panel audio and microphone jack (headset)
- SD and microSD card reader
- Metal housing
- Can also be used as a convenient laptop stand

Note: MacOS does not support Multi Stream Transport (MST) technology, WAS means that when connected to a MacOS device, all connected monitors will display the same image.

This text is machine translated.

Features

Docking station that can also be used as a laptop stand
Compatible with USB-C and Thunderbolt laptops and tablets (host device must support DisplayPort Alt mode)
2x DisplayPort and 1x HDMI support up to three external 4K displays or a 5K/60Hz display (MacOS only supports an expanded display)
Ergonomic design with aluminum casing, the dock possesses an integrated 60 cm long USB-C cable and is thus suitable for all laptops and tablets with displays up to and including 15"
With 4 USB 3.2-ports as well as SD and microSD card slots several USB-devices and peripherals can be connected without any problem
Provides up to 100 W Power delivery for compatible laptops and tablets with USB-C and Thunderbolt (host device must support USB-C Power delivery)
GLAN Ethernet supports network speeds of 10/100/1000 Mbps and provides robust high-speed Internet connectivity
Combined 3.5 mm audio input/output for easy connection of headset or speakers
