ICY BOX 61159 USB hub 7+2 ports USB C® (USB 3.2 2nd gen), USB® C Power Delivery, USB A (USB 3.2 2nd gen), USB A (USB 3.2
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Only 9 Piece(s) available

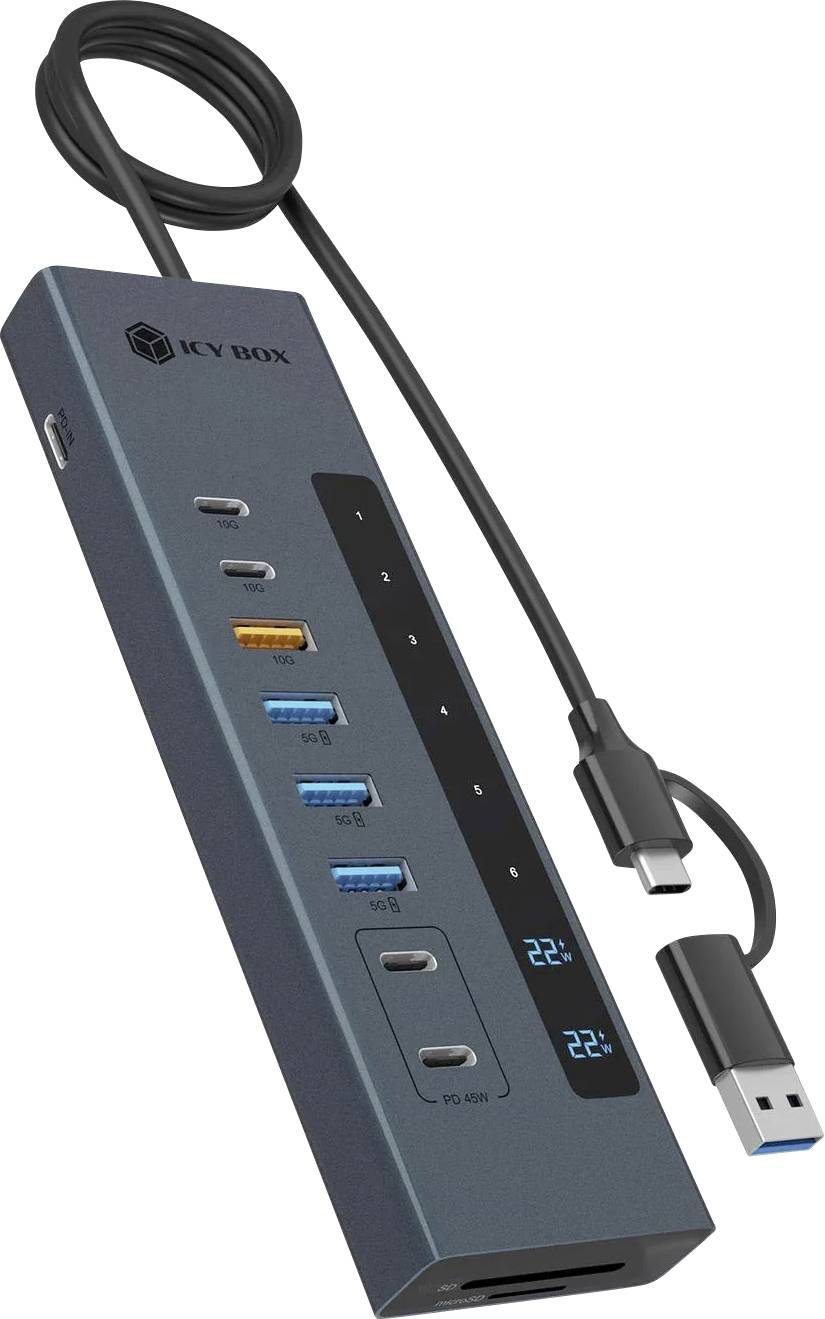

11-in-1 USB Type-C® Hub with card reader
Highlights & Details
- 2x USB 3.2 Gen 2 Type-C® with a transfer rate of up to 10 Gbit/s.
- 1x USB 3.2 1st Gen 2 Type A with a data transfer rate of up to 10 Gbit/s.
- 3x USB 3.2 1st Gen 1 Type-A with a data transfer rate of up to 5 Gbit/s and BC 1.2/ 7.5 W.
- 2x USB Type-C® Power delivery with up to 22 W with LED display
- SD®/microSD® card slots with up to 104 Mbit/s.
- Supports Power delivery up to 100 W upstream to the host
- Integrated USB-C/A host cable (up to 10 Gbit/s), 60 cm
- Inclusive of mains adapter 24 V/3 A, 72 W
Technical specifications
- Material: Aluminium
- UASP support: Yes
- Plug & Play: Yes
- LED: Operation and access
- GL3590+AW3410+RM1211+FL7102+NS1081
- Power supply 24 V/3A mains adapter
- Hot Swap: Yes
- Display: LED-display for Power delivery charging status
- Cooling: Passive
- Product type
USB hub
- Transfer rate (max.)
10 GBit/s
- Port
7+2 ports
- Interfaces (output)
USB C® (USB 3.2 2nd gen)
USB® C Power Delivery
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
SDHC
SDXC
SD
microSDHC
microSDXC
microSD
- No. of outputs
11 x
- No. of quick charge ports
2
- Cable length
60 cm
- Power supply (LOV)
mains-powered
- Used at
Indoors
- Distributor/switch features
LED display
+ built-in SD card reader
- Factory colour
Blue
- Width
147 mm
- Height
17 mm
- Depth
47 mm
- Weight
0.182 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3778983 ICY BOX 61159 USB hub 7+2 ports USB C® (USB 3.2 2nd gen), USB® C Power Delivery, USB A (USB 3.2 2nd gen), USB A (USB 3.2
User & Safety Instructions
User & Safety Instructions 3778983 ICY BOX 61159 USB hub 7+2 ports USB C® (USB 3.2 2nd gen), USB® C Power Delivery, USB A (USB 3.2 2nd gen), USB A (USB 3.2
Description
Multi connectivity
Ideal for content creators, editors, and professionals who use multiple devices at the same time. With 11 ports, including two USB-C® and one 10 Gb/s USB-A and SD®/microSD® card readers up to 104 MB/s, it can easily handle all your connections.

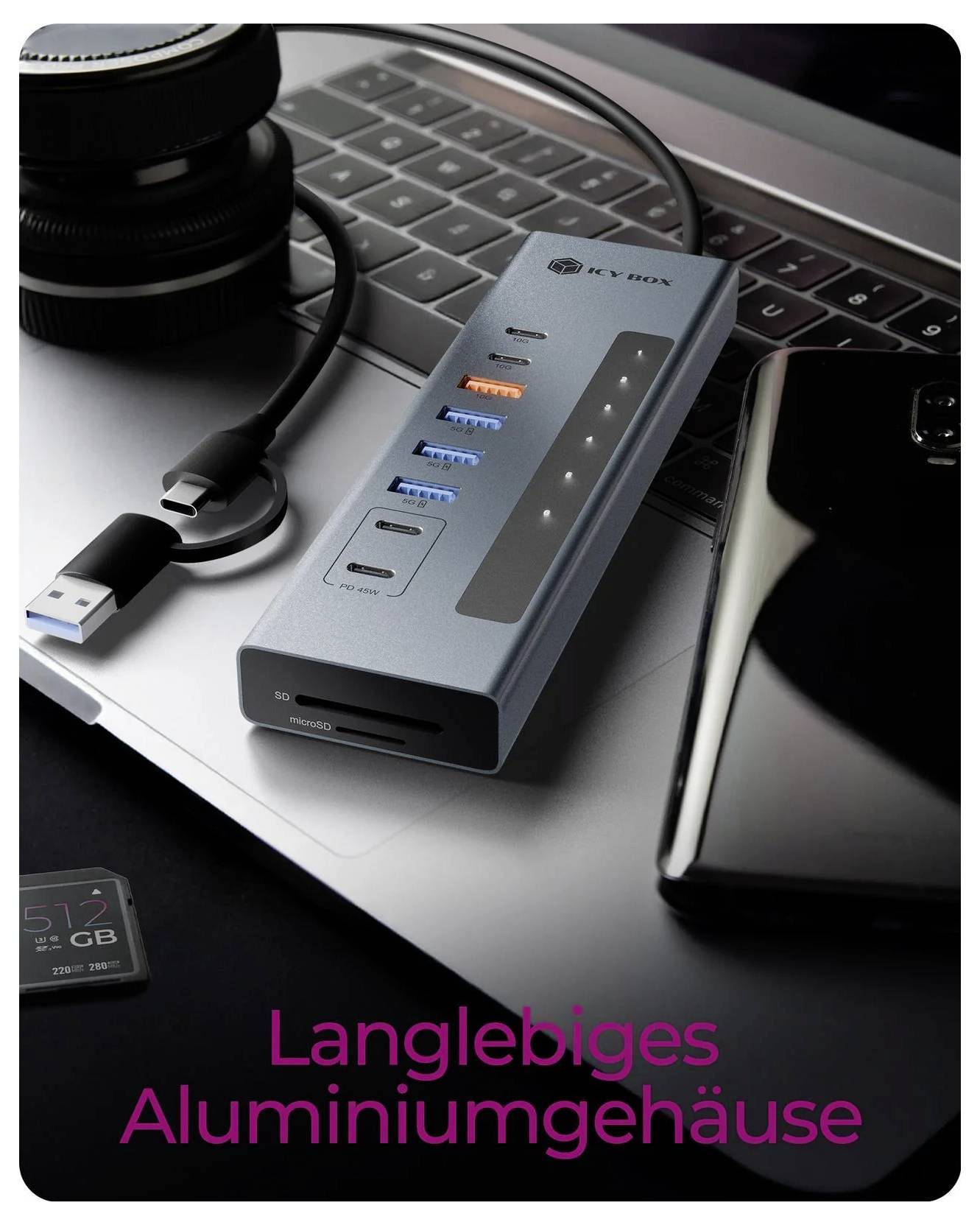

Robust aluminum construction
The sturdy aluminum housing ensures effective heat dissipation while maintaining a clean, modern appearance. It has a long life and keeps your workplace functional as well as stylish.
Power Delivery
Includes two USB-C® PD ports, each providing up to 22 W, or up to 45 W when only one is used. The 100-W upstream connection charges your notebook while the LED display helps to manage your energy consumption efficiently.

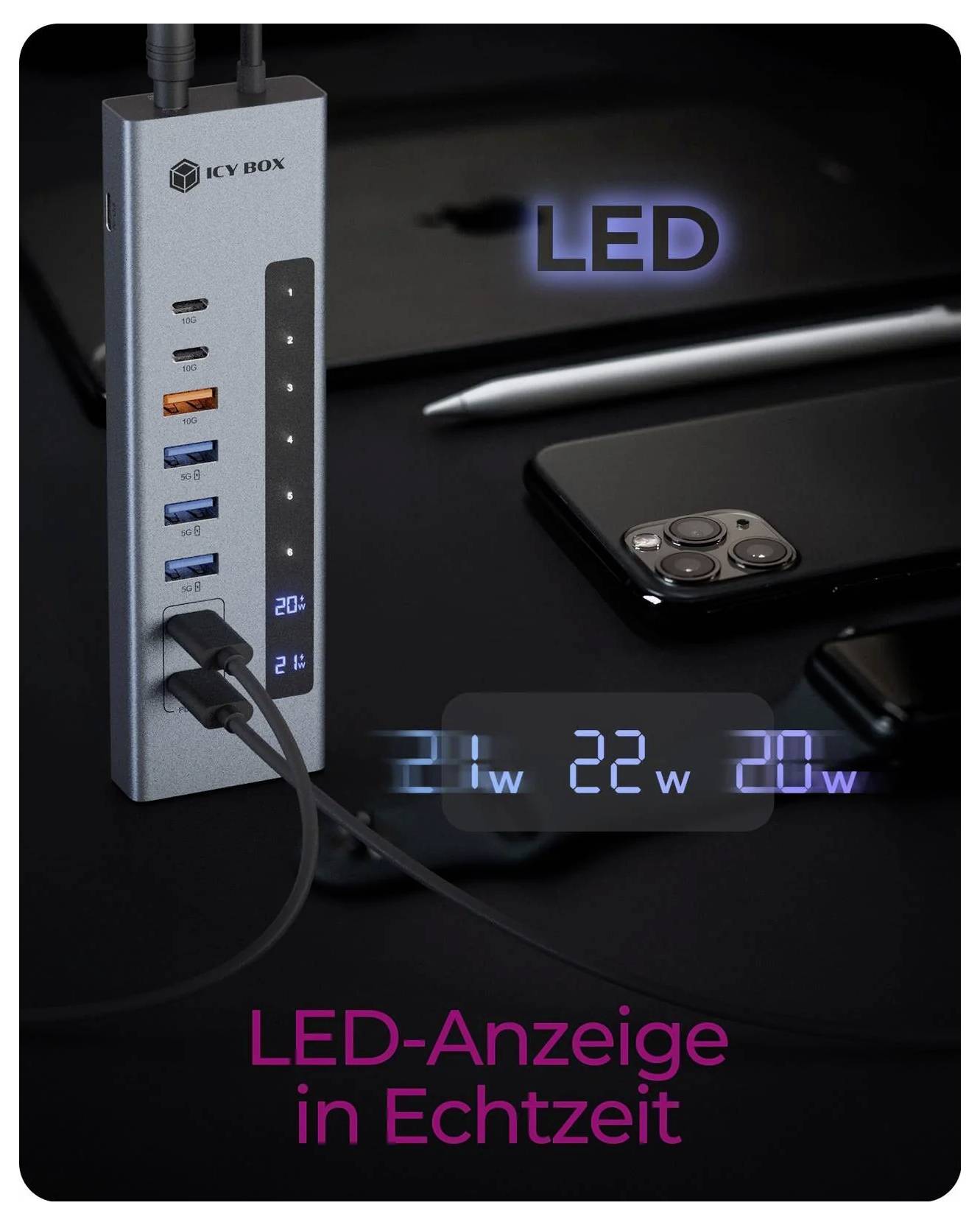

Real-time LED display
The built-in LED displays the current power in watts. It provides you with a clear, real-time view to monitor and adjust power distribution as needed.
Integrated cable with double connection
A connected cable with a USB-C® to USB-A adapter makes it easy to switch between different host devices. Whether you use a MacBook or a standard PC, it is ready to connect.
This text is machine translated.
Ideal for content creators, editors, and professionals who use multiple devices at the same time. With 11 ports, including two USB-C® and one 10 Gb/s USB-A and SD®/microSD® card readers up to 104 MB/s, it can easily handle all your connections.
Robust aluminum construction
The sturdy aluminum housing ensures effective heat dissipation while maintaining a clean, modern appearance. It has a long life and keeps your workplace functional as well as stylish.
Power Delivery
Includes two USB-C® PD ports, each providing up to 22 W, or up to 45 W when only one is used. The 100-W upstream connection charges your notebook while the LED display helps to manage your energy consumption efficiently.
Real-time LED display
The built-in LED displays the current power in watts. It provides you with a clear, real-time view to monitor and adjust power distribution as needed.
Integrated cable with double connection
A connected cable with a USB-C® to USB-A adapter makes it easy to switch between different host devices. Whether you use a MacBook or a standard PC, it is ready to connect.
This text is machine translated.

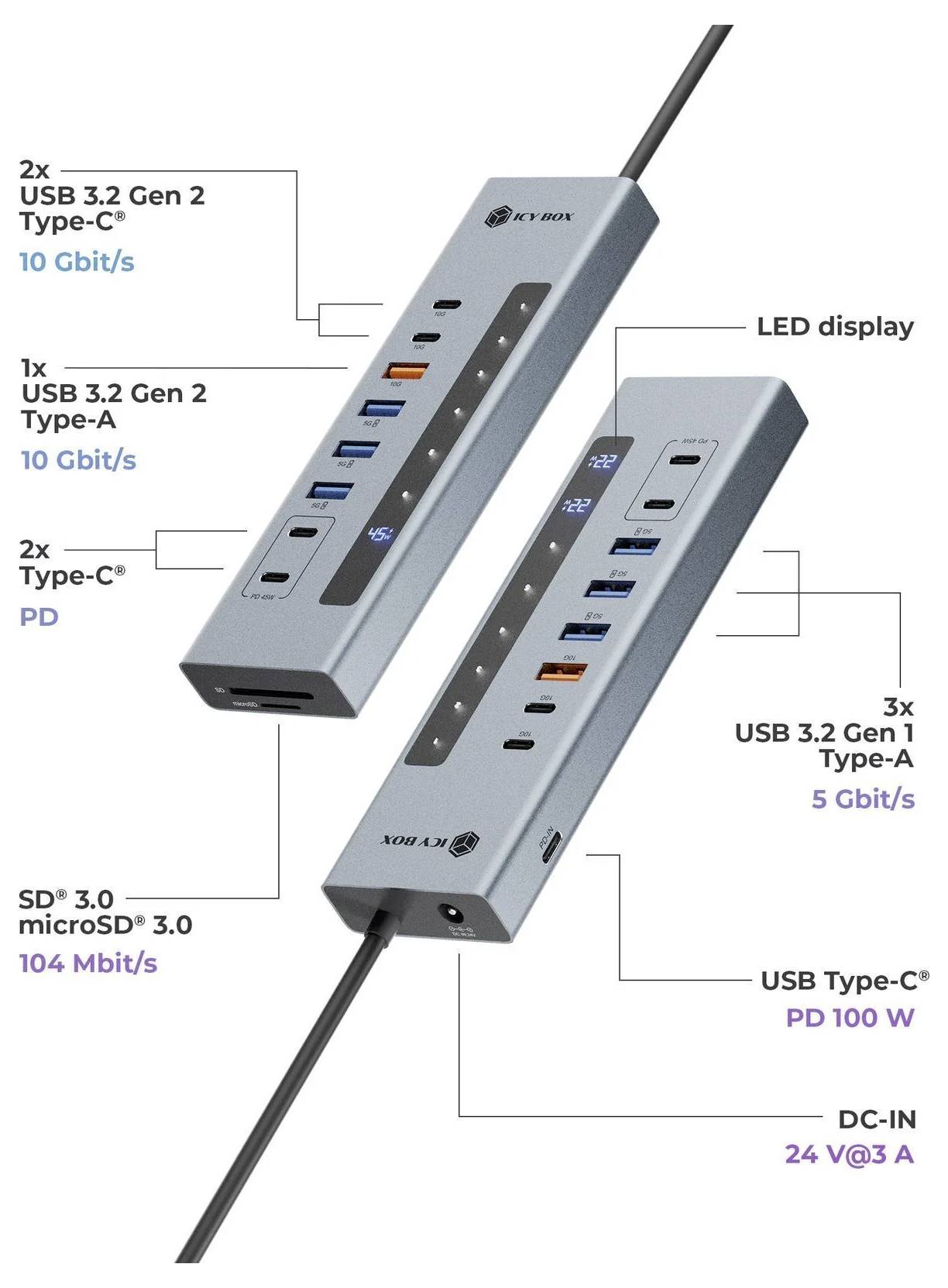

Features
- • 2x USB 3.2 Gen 2 Type-C® with a transmission rate of up to 10 Gbps
- • 1x USB 3.2 Gen 2 Type-A with up to 10 Gbps transmission rate
- • 3x USB 3.2 Gen 1 Type-A with a transmission rate of up to 5 Gb/s.
- And BC 1.2/ 7.5 W.
- • 2x USB Type-C® Power delivery with up to 22 W with LED display
- • SD®/microSD® card slots with up to 104 Mbit/s.
- • Supports Power delivery up to 100 W upstream to host
Scope of delivery
- 1X IB-HUB1742CR-C2PD
- 1x 24 V/3A mains adapter, 120 cm
- 1x user manual
Hints
Inclusive of mains adapter 24 V/3 A, 72 W
System requirements
- Windows®, MacOS®, Linux®
- A free USB Type-C® or Type-A port AM
Host computer
