Renkforce RF-7403762 USB hub 10 ports USB type A, USB C® USB 3.2 1st Gen 5 GBit/s meets industrial requirements Black RF
EAN:
Part number:
Item no:
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
Highlights & Details

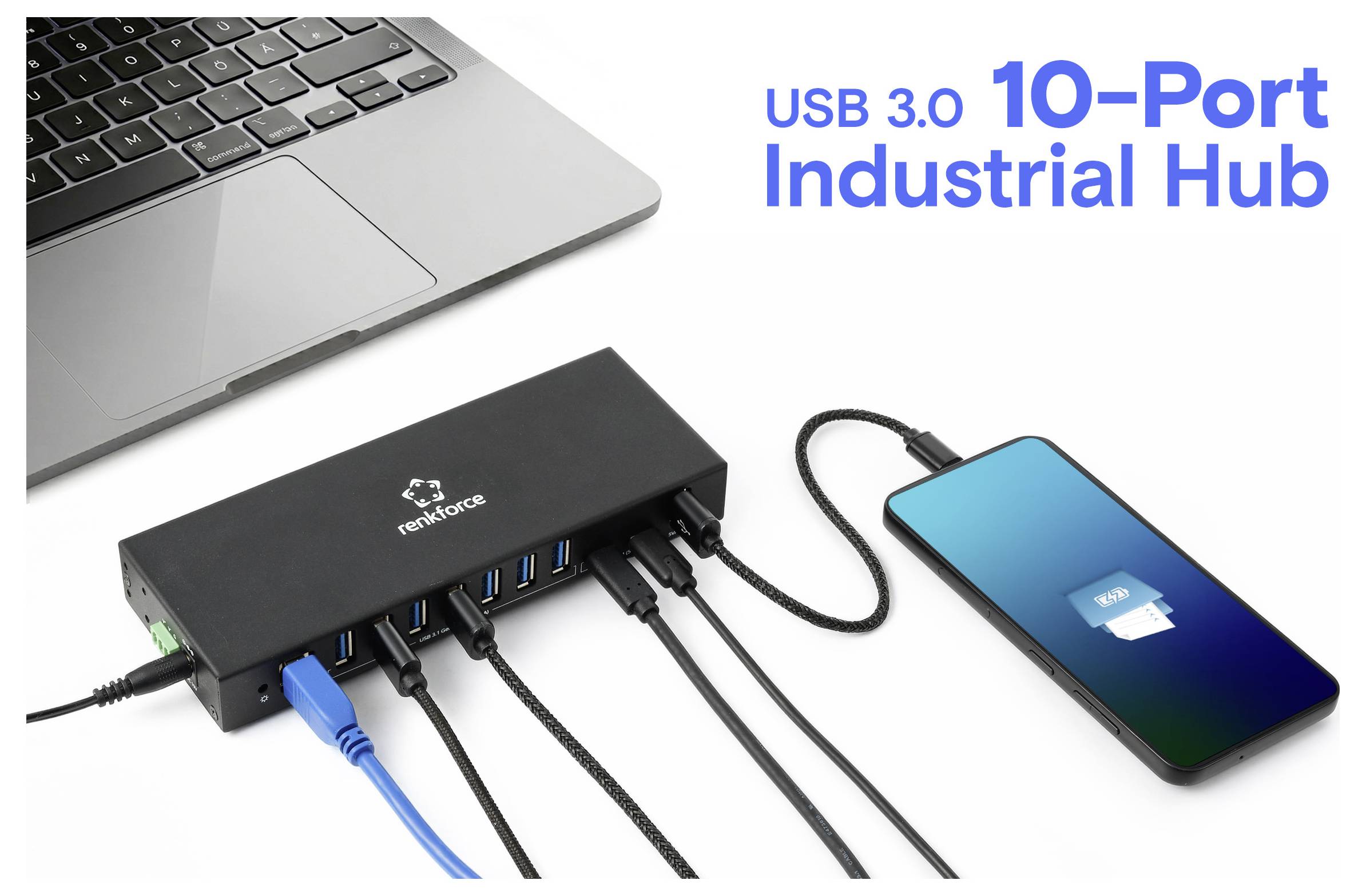

Renkforce USB 3.0 10-Port Industrial Hub
- 7x USB 3.1 Gen 1 Type-A ports with data rates up to 5 Gbps, 5 V / 900 mA
- 2x USB-C® ports with data rates up to 5 Gbps, 5 V / 1.5 A
- Robust metal housing
- Power supply via USB bus or an external power supply unit
Technical specifications
- Product type
USB hub
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Port
10 ports
- Interfaces (output)
USB type A
USB C®
- No. of outputs
10 x
- No. of quick charge ports
1
- Cable length
1.50 m
- Power supply (LOV)
via DC in
- Used at
Indoors
- Distributor/switch features
meets industrial requirements
- Factory colour
Black
- Width
184.80 mm
- Height
69 mm
- Depth
24.60 mm
- Weight
374 g
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3701881 Renkforce RF-7403762 USB hub 10 ports USB type A, USB C® USB 3.2 1st Gen 5 GBit/s meets industrial requirements Black RF
Description
The Renkforce USB 3.0 hub is specially designed for industrial applications. With its robust metal housing and flexible mounting options, the device is suitable for use in production plants, control cabinets or indoor applications.
Versatile connections and data transfer

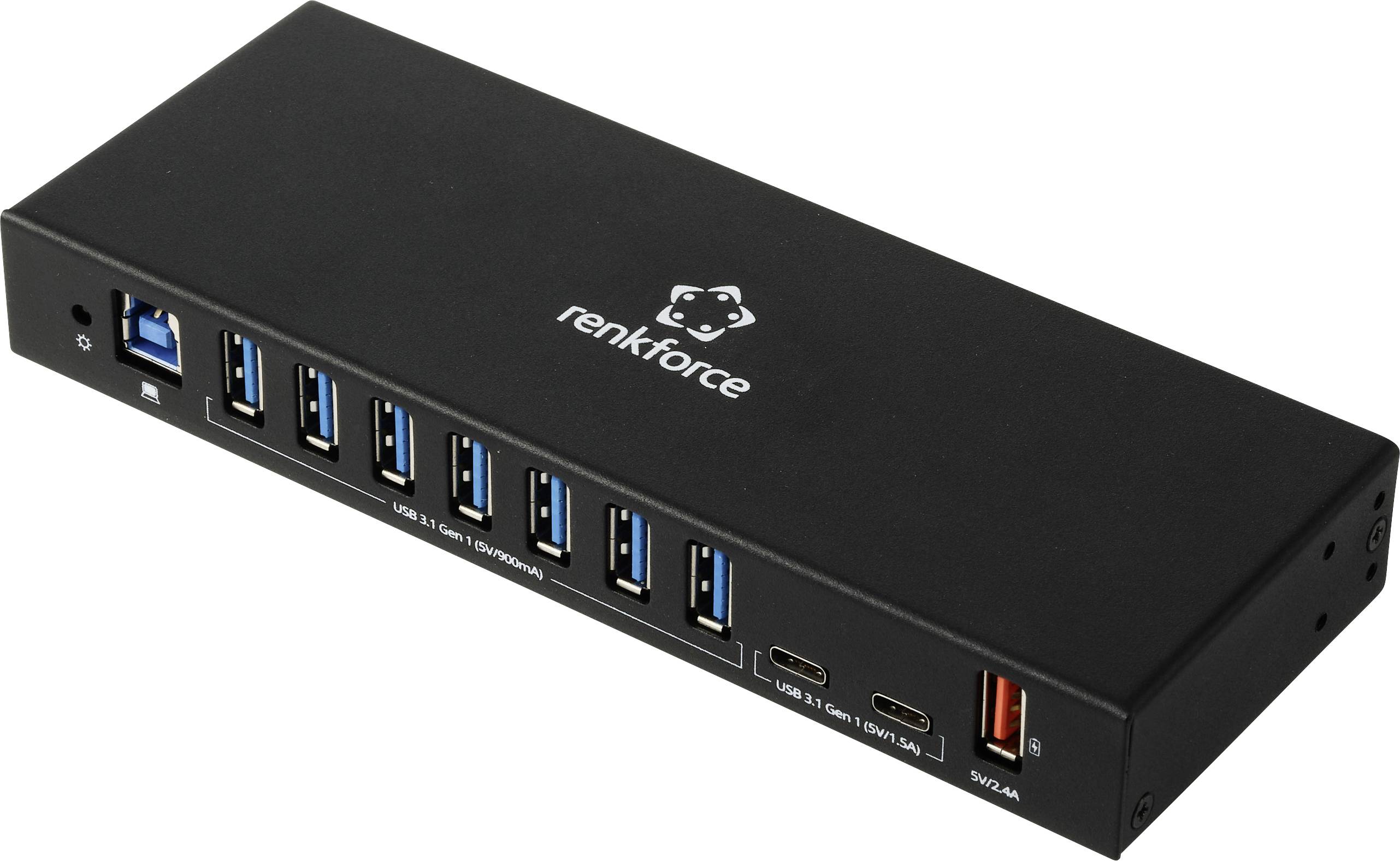

The hub provides a total of ten outputs: Seven USB 3.1 Gen 1 Type A ports (5 V / 900 mA), two USB-C® ports (5 V / 1.5 A) and a dedicated USB-A quick-charge port (5 V / 2.4 A). The data connections enable transfer rates of up to 5 GBit/s, support the USB 3.0 UASP-mode and offer a charging function. The connection to the host system is made via a USB-B interface with the accompanying 1.50 m long USB-A on USB-B cable.
Redundant power supply and protective circuits

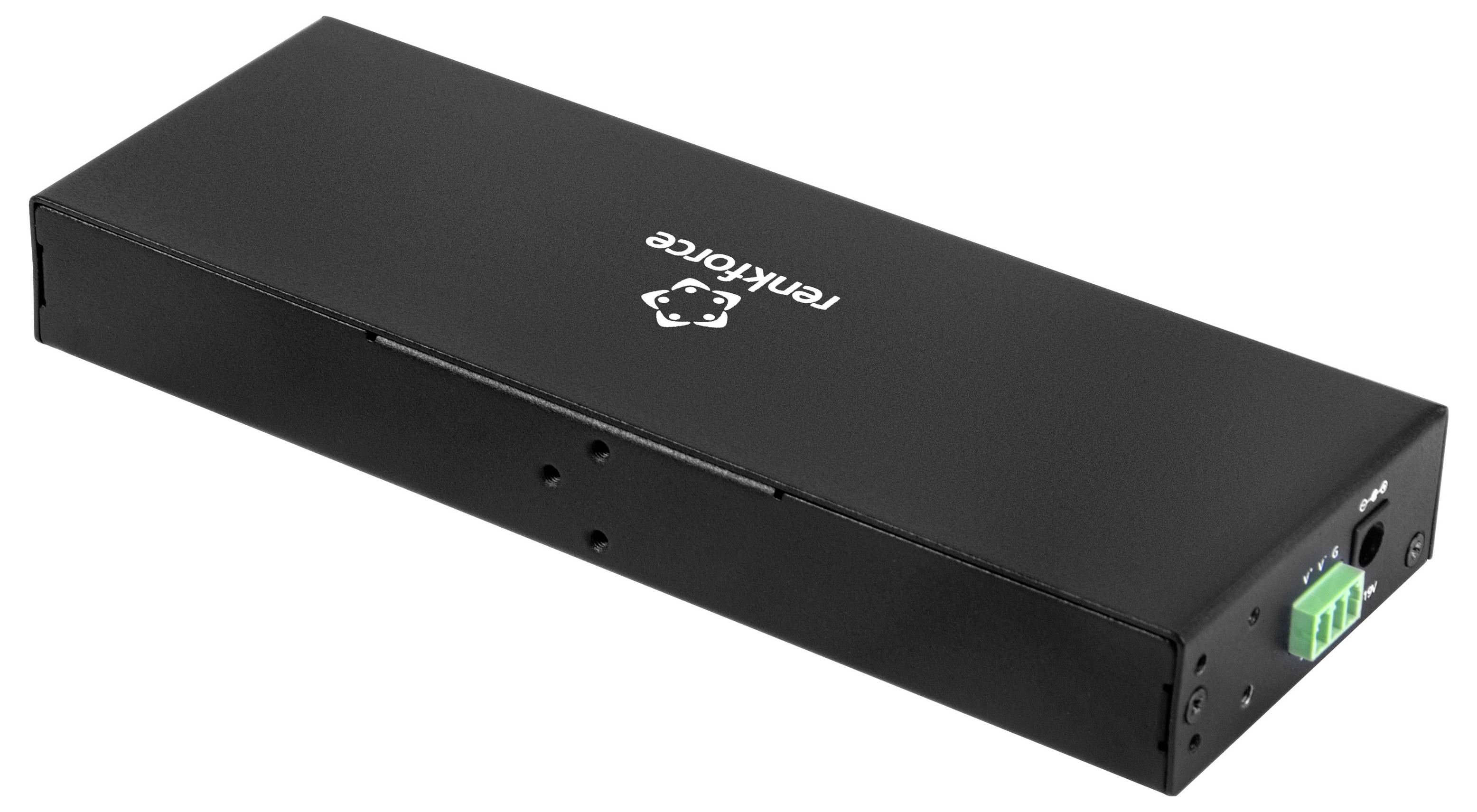

The power supply of the device can be achieved either via the USB bus or for the full output power via the supplied mains adapter (19 V / 3.42 A). For an enhanced reliability in the industrial use the hub possesses a terminal clamp (terminal Block) for a redundant DC-current input from 5 V to 19 V. For safety, the current input is provided with a 600 W surge protection. In addition, an over current detection including protection circuit is integrated.
Robust design and mounting options

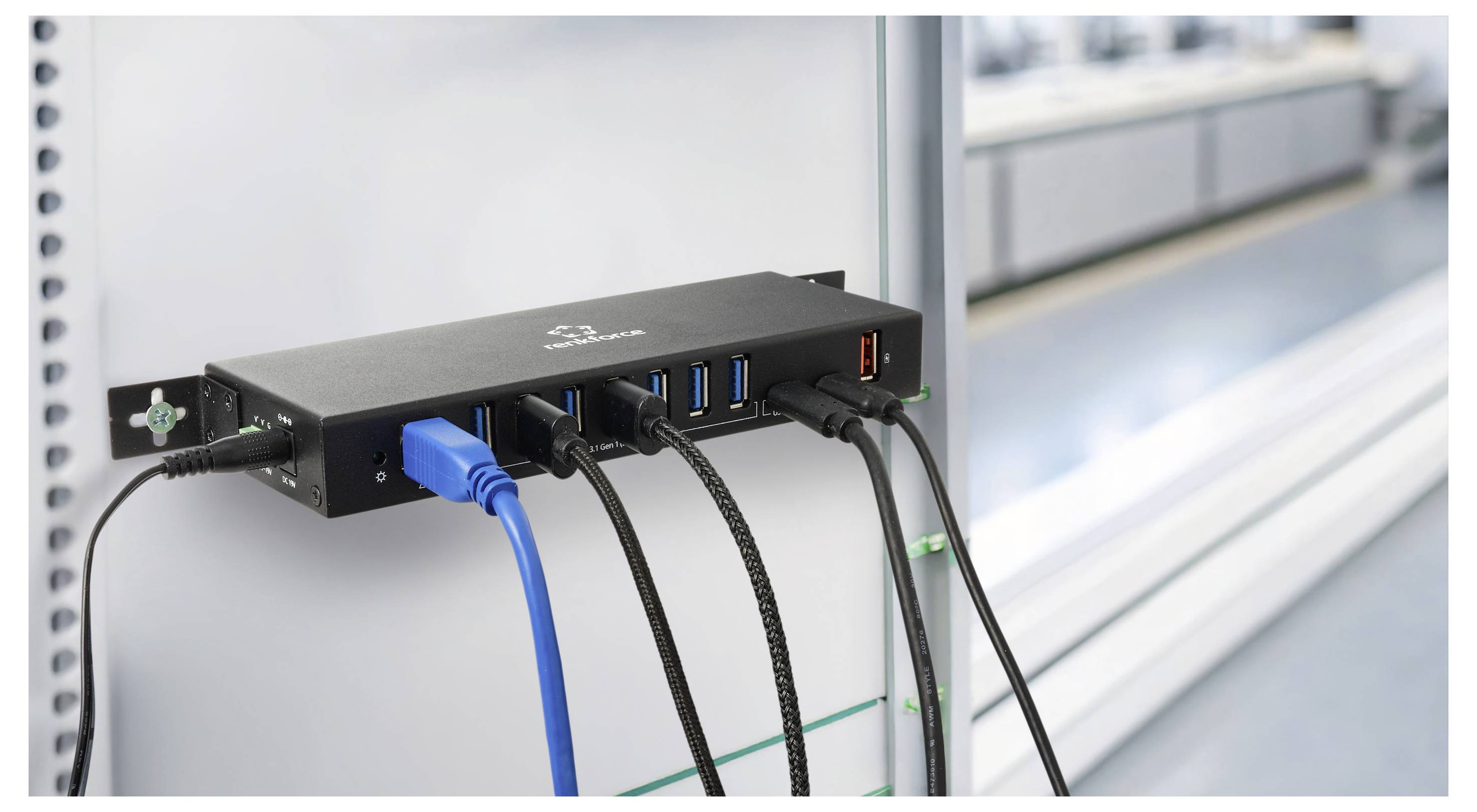

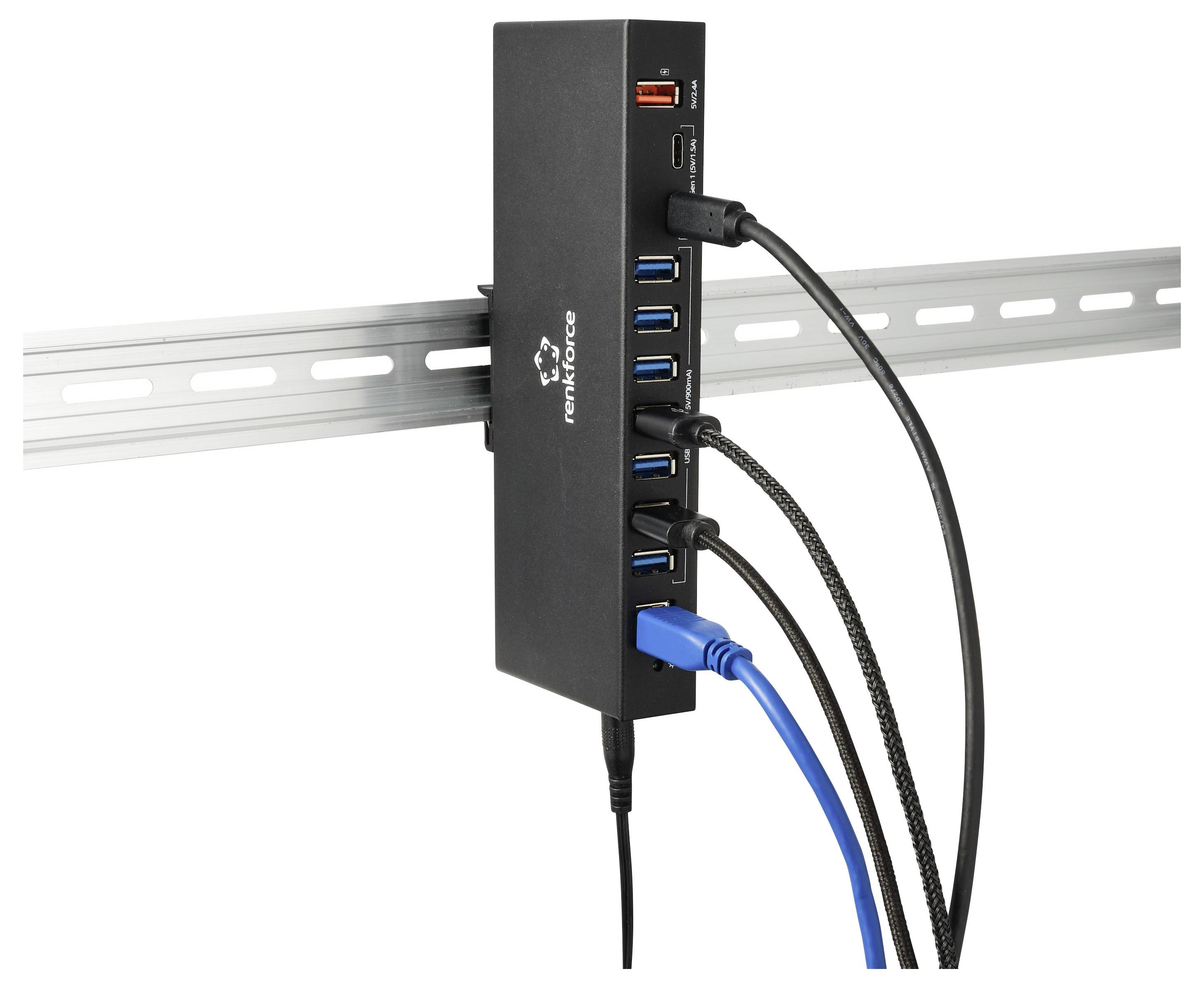

The technology is housed in a resistant black metal case. At a weight of 374 g, the dimensions are 184.80 x 69 x 24.60 mm. In order to ensure an easy integration in the existing industrial environments, a corresponding mounting kit is included for mounting on walls or on DIN-rails.
This text is machine translated.
Versatile connections and data transfer
The hub provides a total of ten outputs: Seven USB 3.1 Gen 1 Type A ports (5 V / 900 mA), two USB-C® ports (5 V / 1.5 A) and a dedicated USB-A quick-charge port (5 V / 2.4 A). The data connections enable transfer rates of up to 5 GBit/s, support the USB 3.0 UASP-mode and offer a charging function. The connection to the host system is made via a USB-B interface with the accompanying 1.50 m long USB-A on USB-B cable.
Redundant power supply and protective circuits
The power supply of the device can be achieved either via the USB bus or for the full output power via the supplied mains adapter (19 V / 3.42 A). For an enhanced reliability in the industrial use the hub possesses a terminal clamp (terminal Block) for a redundant DC-current input from 5 V to 19 V. For safety, the current input is provided with a 600 W surge protection. In addition, an over current detection including protection circuit is integrated.
Robust design and mounting options
The technology is housed in a resistant black metal case. At a weight of 374 g, the dimensions are 184.80 x 69 x 24.60 mm. In order to ensure an easy integration in the existing industrial environments, a corresponding mounting kit is included for mounting on walls or on DIN-rails.
This text is machine translated.
Features
- Supports 7 USB 3.1 Gen 1 Type-A ports (5 Gbps, 5 V / 900 mA)
- Supports 2 USB-C® ports (5 Gbps, 5 V / 1.5 A)
- Supports USB 3.0 UASP mode
- One dedicated USB-A charging port (5 V / 2.4 A)
- 19 V / 3.42 A power adapter included for full power output
- Terminal block DC 5 V to 19 V power input for redundancy
- 600 W power input surge protection
- Over-current detection and protection circuit design
- Wall and DIN rail mount support
- USB data ports support power charging (5 V 0.9 A)
- Durable metal housing

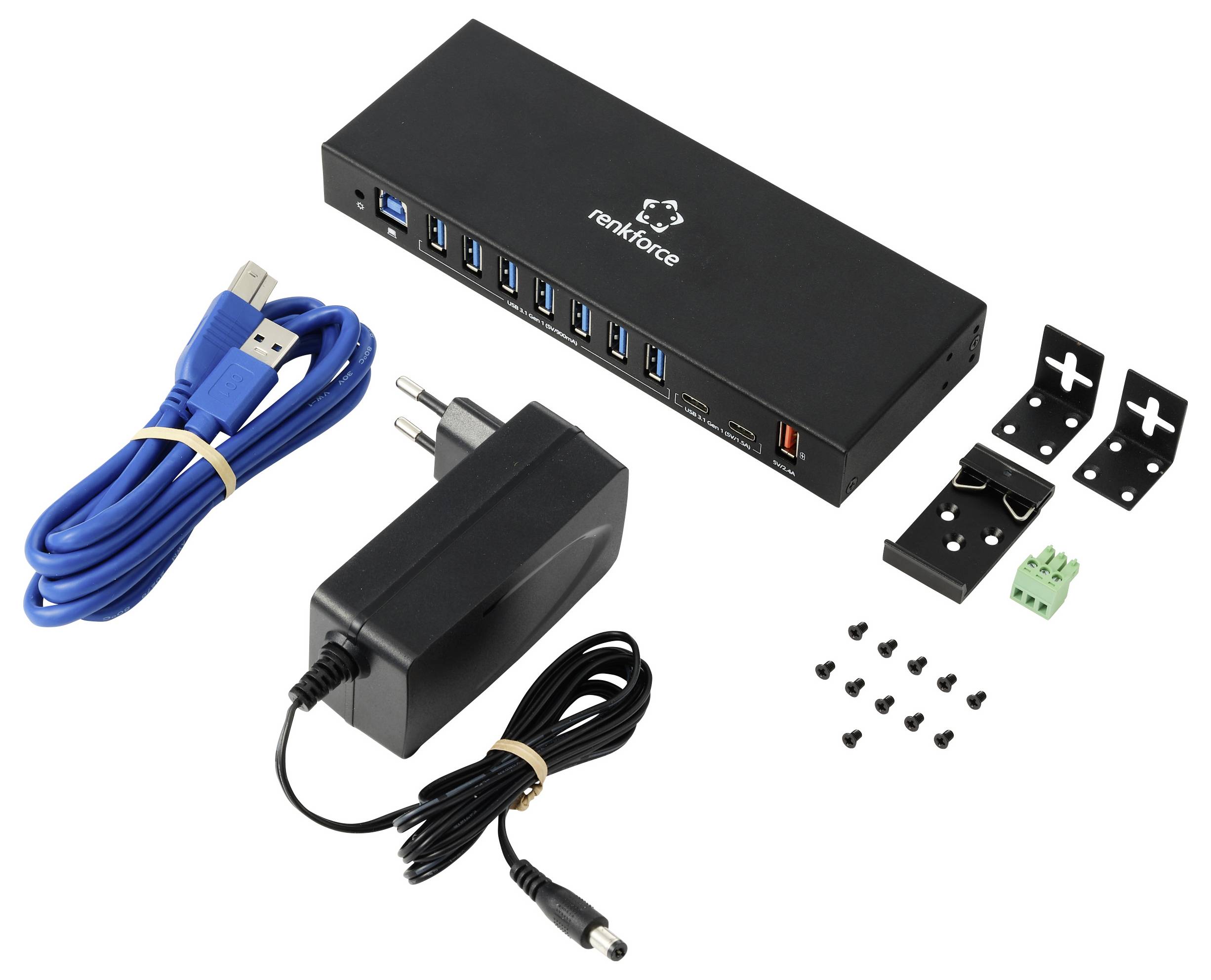

Scope of delivery
- Main Unit
- Power Adapter
- USB A to USB B cable
- DIN-Rail and wall mount kit
- Terminal block
