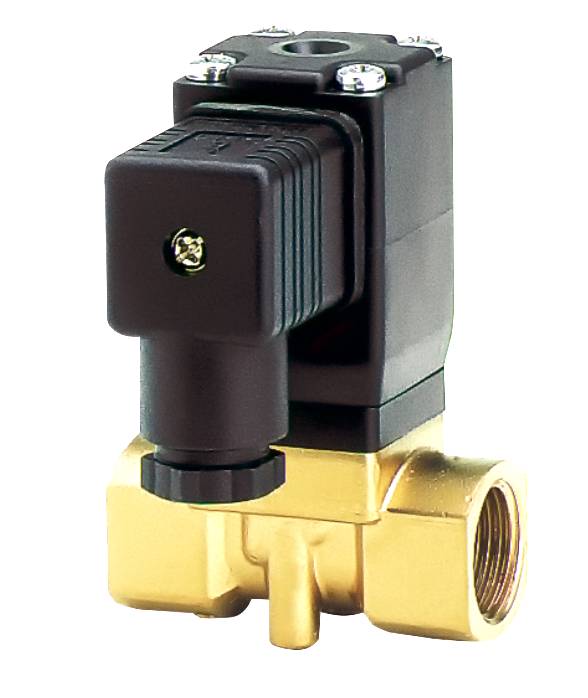

IMI NORGREN Magnetic valve 8253200.8001.23050 230 V AC G 1/2 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Product type
Magnetic valve
- Operating voltage
230 V AC
- Max. operating pressure
10 bar
- Enclosure material
Brass
- Connection
G 1/2
- Operating temperature
-10 °C (min)
- Media temperature (range)
-10 up to +90 °C
- Manufacturer part #
8253200.8001.23050
- Operating pressure (min.)
0 bar
- Min. operating temperature
-10 °C
- Max. media temperature
+90 °C
- Media temperature (min.)
-10 °C
- Width
90 mm
- Height
70 mm
- Length
60 mm
IP65
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- Flow (max.)
1.7 m³/h
Documents & Downloads
Datasheet
Datasheet 3296993 IMI NORGREN Magnetic valve 8253200.8001.23050 230 V AC G 1/2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3296993 IMI NORGREN Magnetic valve 8253200.8001.23050 230 V AC G 1/2 1 pc(s)
Description
Brass solenoid valve without differential pressure in G1/2
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
