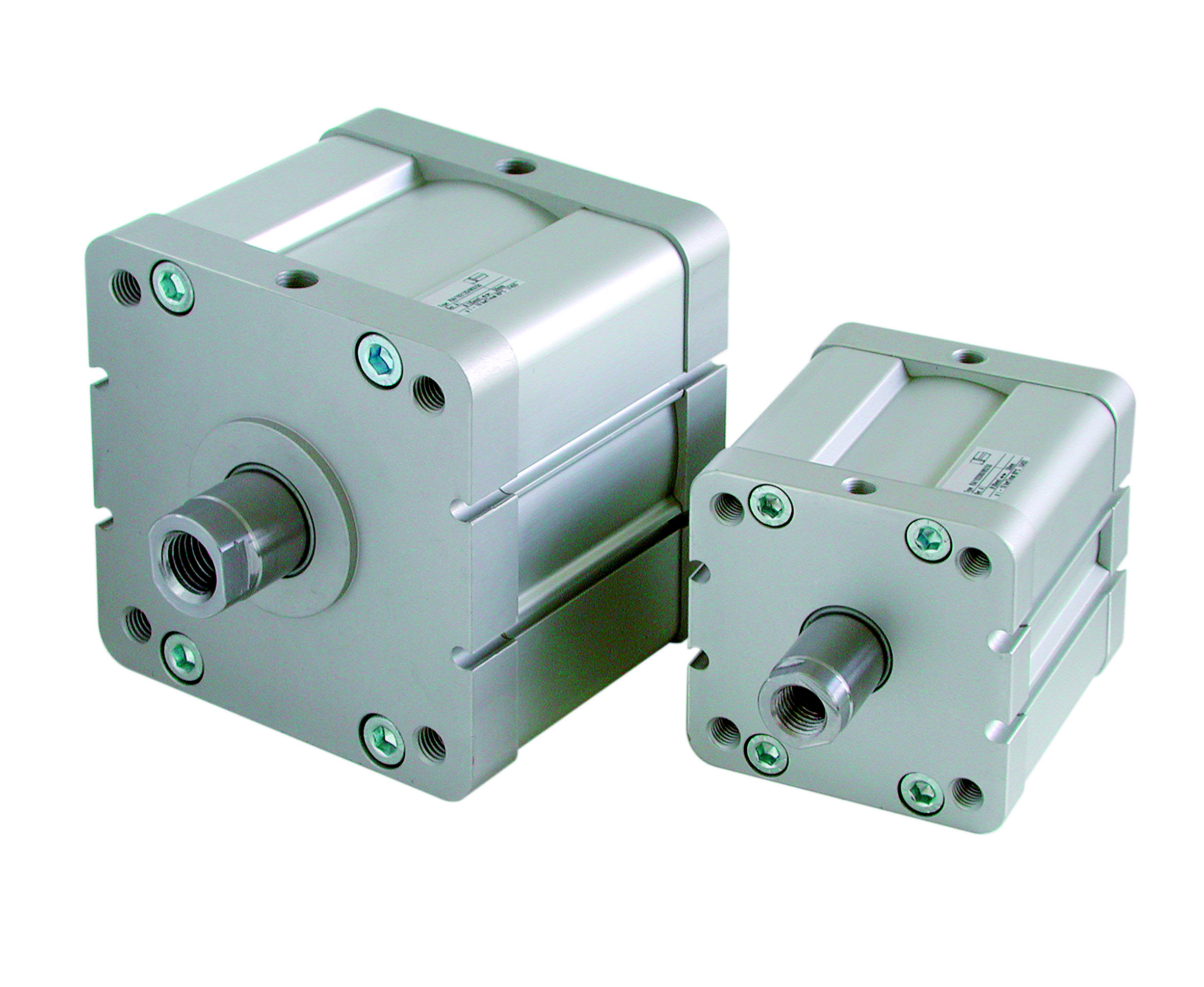

Image similar
Image similar
IMI NORGREN RA/192020/MX/15 Compact cylinder Stroke length: 15 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 60.50 / piece)
€ 60.50
plus VAT.
Technical specifications
- Product type
Compact cylinder
- Stroke length
15 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- (Ø)
20 mm
- Min. device temperature
-5 °C
- Device temperature (max.)
+80 °C
- Manufacturer part #
RA/192020/MX/15
- Pneumatics connector
M5
- Piston rod diameter
20 mm
- Material
Aluminium
Stainless steel
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-50 °C
- Operating principle
Double-acting
- Height
37 mm
- Length
58 mm
- Width
37 mm
- Connection
M5
Documents & Downloads
Datasheet
Datasheet 3292093 IMI NORGREN RA/192020/MX/15 Compact cylinder Stroke length: 15 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3292093 IMI NORGREN RA/192020/MX/15 Compact cylinder Stroke length: 15 mm 1 pc(s)
Description
ISO compact cylinder, double-acting, diameter 20 mm, stroke 15 mm
