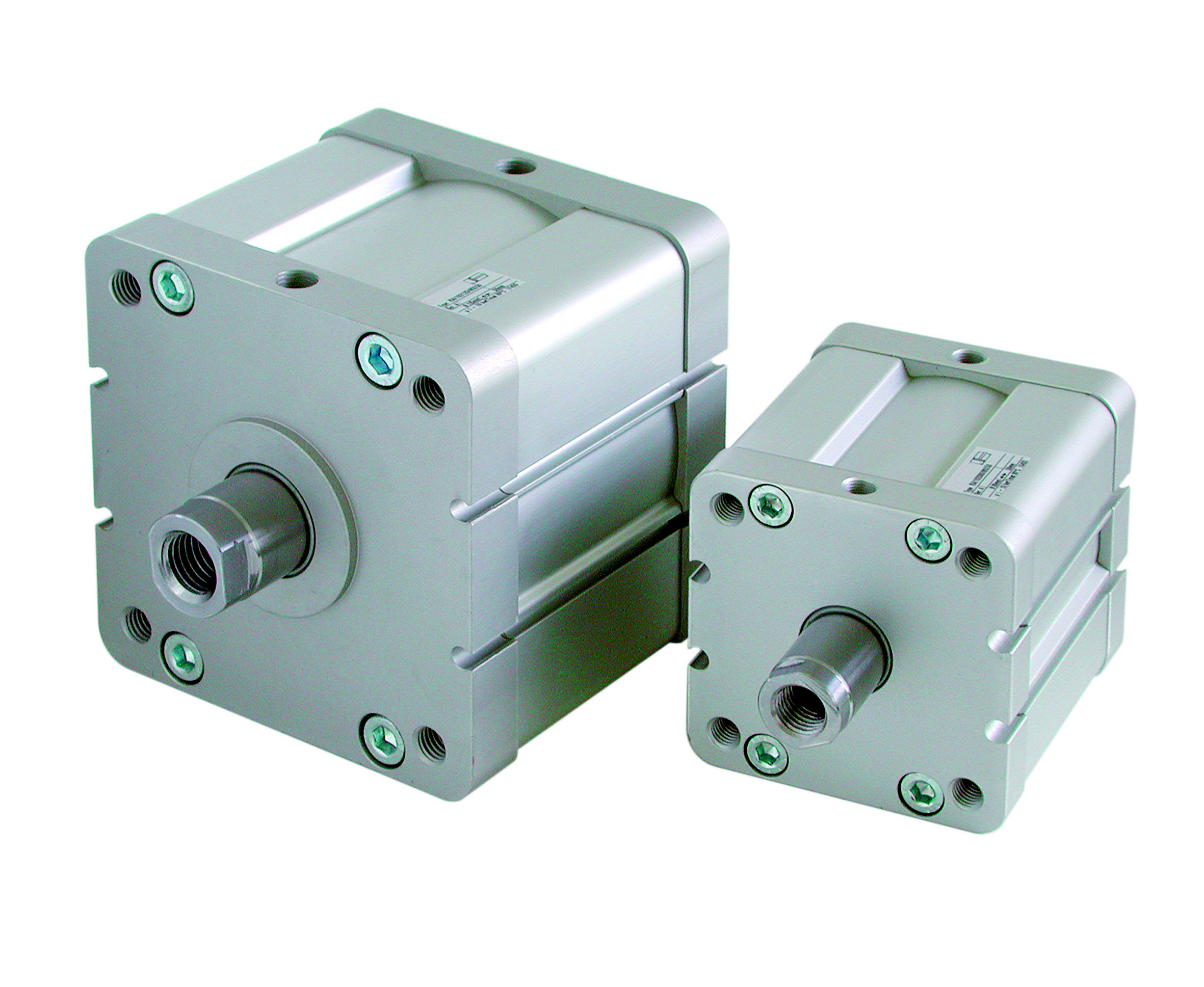

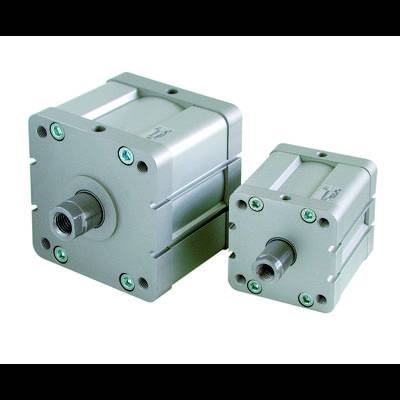

IMI NORGREN RA/192025/MX/20 Compact cylinder Stroke length: 20 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 75.99 / piece)
€ 75.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Compact cylinder
- Stroke length
20 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- (Ø)
25 mm
- Min. device temperature
-5 °C
- Device temperature (max.)
+80 °C
- Manufacturer part #
RA/192025/MX/20
- Size
25
- Pneumatics connector
M5
- Piston rod diameter
25 mm
- Material
Aluminium
Stainless steel
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-50 °C
- Operating principle
Double-acting
- Height
41 mm
- Length
65 mm
- Width
41 mm
- Connection
M5
Documents & Downloads
Datasheet
Datasheet 3292101 IMI NORGREN RA/192025/MX/20 Compact cylinder Stroke length: 20 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3292101 IMI NORGREN RA/192025/MX/20 Compact cylinder Stroke length: 20 mm 1 pc(s)
Description
ISO compact cylinder, double-acting, diameter 25 mm, stroke 20 mm
