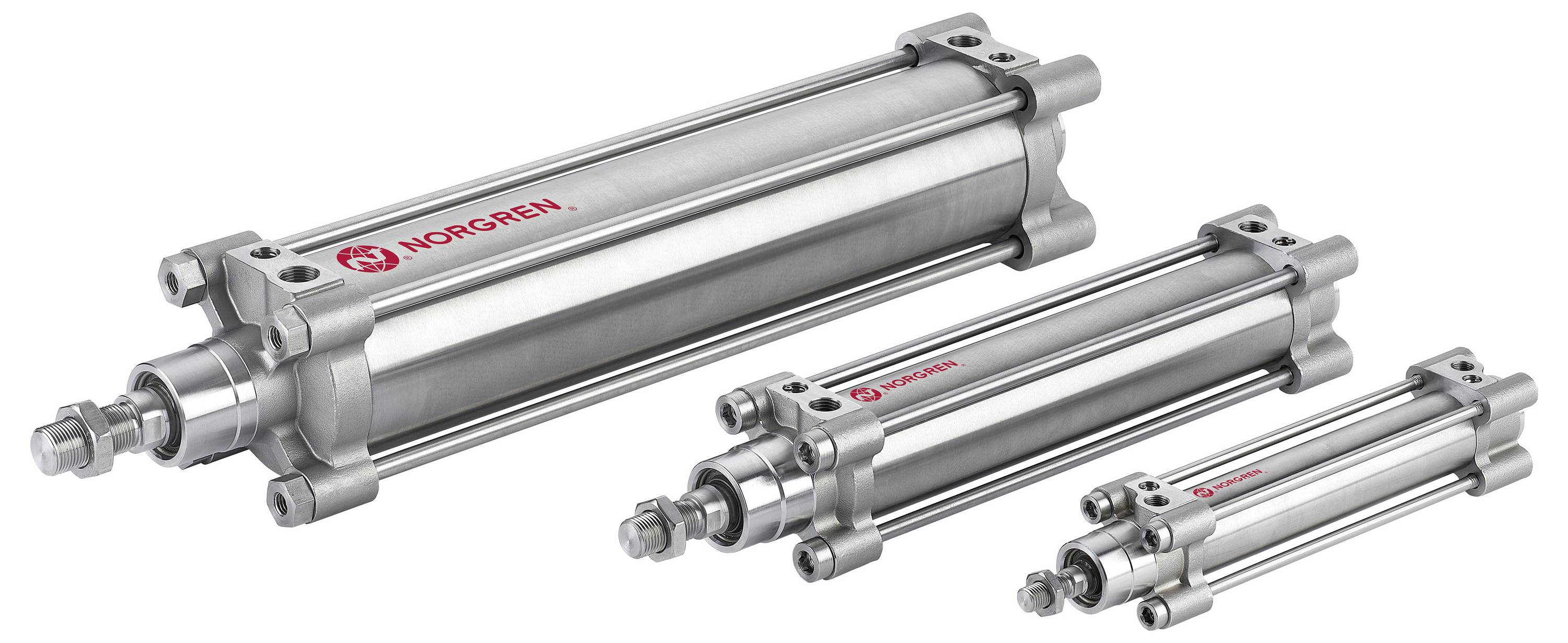

Image similar
Image similar
IMI NORGREN RA/8160/M/100 Standard cyclinder Stroke length: 100 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,100.00 / piece)
€ 1,100.00
plus VAT.
Technical specifications
- Product type
Standard cyclinder
- Stroke length
100 mm
- Min. operating pressure
1 bar
- Max. operating pressure
16 bar
- (Ø)
160 mm
- Min. device temperature
-10 °C
- Device temperature (max.)
+80 °C
- Manufacturer part #
RA/8160/M/100
- Pneumatics connector
G3/4"
- Piston rod diameter
160 mm
- Material
Aluminium
Stainless steel
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-10 °C
- Operating principle
Double-acting
- Height
183.5 mm
- Length
432 mm
- Width
183.5 mm
- Connection
G 3/4
Documents & Downloads
Datasheet
Datasheet 3292261 IMI NORGREN RA/8160/M/100 Standard cyclinder Stroke length: 100 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3292261 IMI NORGREN RA/8160/M/100 Standard cyclinder Stroke length: 100 mm 1 pc(s)
Description
ISO tie-rod cylinder, double-acting, diameter 160 mm, stroke 100 mm
