Buy iSafe MOBILE IS880.2 Smartphone Set Ex-proof smartphone Ex Zoning 2, 22 14 cm (5.5 inch) IP68, MIL-STD-810H, NFC, Finger

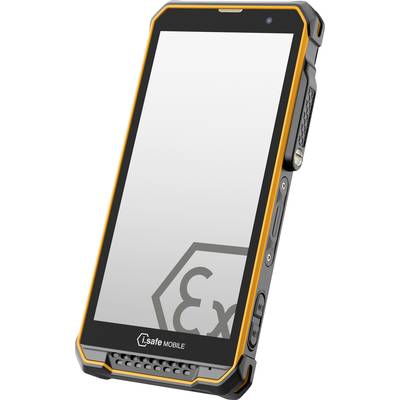

A robust smartphone with a black casing and orange accents, suitable for use in potentially explosive environments.

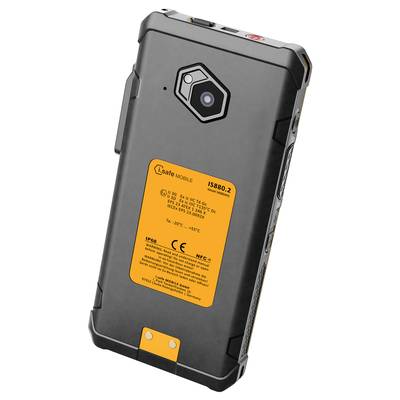

Robust black device with a yellow label on the back, camera visible on top. The label contains technical specifications.

Robust, orange-and-black smartphone with a reinforced casing. It features a resilient design for outdoor use.

Smartphone with a robust casing, grey and orange accents, side view showing buttons and textured surface.

Side view of a robust, orange-grey smartphone with a durable casing that offers drop and impact resistance.

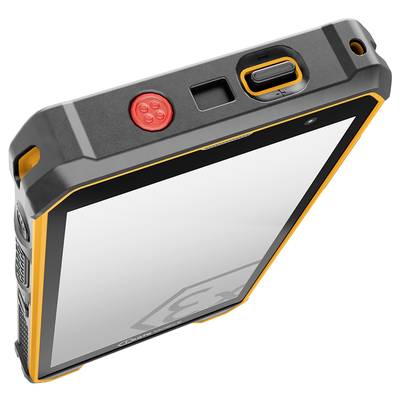

A robust electronic device with a display, orange frame and red button on the top, suitable for industrial applications.

1/6

Datasheet (PDF)

Fast track dispatch on Thu, 16 Jul

22 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 886.55 / piece)

€ 886.55

plus VAT.

Report legal concerns

Highlights & Details

iSafe MOBILE IS880.2 Smartphone Set Ex-proof smartphone for areas at risk from explosive hazards

14 cm (5.5 inch) Display, 1440 x 720 Pixel
Ex Zoning 2, 22
ATEX (details): II 3G Ex ic IIC T4 Gc; II 3D Ex ic IIIC T135°C Dc
IP68, MIL-STD-810H, NFC, Fingerprint scanner, Panic button, Waterproof, Dustproof, Usable wearing gloves
Temperature range: -20 - 55 °C

Technical specifications

Processor: Qualcomm® Snapdragon SM6225 Octa Core
Display: 13.97 c (m5.5") RUG Display Glass operated with gloves
Dual-nano SIM cards
Inputs ON/OFF: 13-pin ISM interface; USB-C
Battery: 4500 mAh, 3.85 V, can be changed
Sensors: Fingerprint, accelerometer, gyro, light, magnet, Proximity, pressure sensor
Supported frequencies:
2G GSM: 850/900/1800/1900 MHz
3G WCDMA B1/2/4/5/8
4G LTE-FDD B1/2/3/4/5/7/8/12/13/28/66/17/20/14
4G LTE-TDD B34/38/39/40/41
Connections:
Wi-Fi 2.4 GHz + 5.0 GHz IEEE 802.11 a/b/g/n/ac/e/k/r/v with hotspot
Bluetooth 5.1 LE
GPS, A-GPS, Glonass, Beidou, Galileo
Near field communication (NFC)

Operating system (Version): Android™ 14

CPU type: Octa Core

Processor cores (No.): 8 x

CPU speed: 2.4 GHz

Display (cm): 14 cm

Screen size diagonal (inches): 5.5 inch

Display resolution: 1440 x 720 Pixel

Resolution of built-in camera: 50 MP

Front camera resolution: 8 MP

Memory capacity: 128 GB

Memory card slots: microSD card (up to 128 GB)

: 6 GB

SIM card version: Nano SIM

Bluetooth: Yes

Bluetooth: 5.1

GSM standard: LTE/4G
GSM/2G

GSM frequency: 850 MHz
900 MHz
1800 MHz
1900 MHz

Data transfer: LTE
WiFi

Mobile phone features: IP68
MIL-STD-810H
NFC
Fingerprint scanner
Panic button
Waterproof
Dustproof
Usable wearing gloves

Contract: None

Factory colour: Black

Built-in Glonass: Yes (built-in)

Built-in GPS: Yes (built-in)

NFC (Near field communication): Yes (built-in)

Wi-Fi: Yes

Width: 75 mm

Height: 161 mm

Depth: 15.8 mm

Weight: 285 g

Interfaces: USB C®
Wi-Fi

Rechargeable battery technology: Li-ion

Ex Zoning: 2
22

Battery capacity: 4500 mAh

Max. temperature: 55 °C

Min. temperature: -20 °C

ATEX no.: II 3G Ex ic IIC T4 Gc; II 3D Ex ic IIIC T135°C Dc

UKCA: yes

US DoD Military Standards: MIL-STD-810H

Product type: Ex-proof smartphone

Documents & Downloads

Datasheet

Datasheet 3343995 iSafe MOBILE IS880.2 Smartphone Set Ex-proof smartphone Ex Zoning 2, 22 14 cm (5.5 inch) IP68, MIL-STD-810H, NFC, Finger

User & Safety Instructions

User & Safety Instructions 3343995 iSafe MOBILE IS880.2 Smartphone Set Ex-proof smartphone Ex Zoning 2, 22 14 cm (5.5 inch) IP68, MIL-STD-810H, NFC, Finger

Description

The slim and lightweight 4G LTE smartphone with Android™ 14 comes with an extensive feature pack. The rugged 5.5-inch smartphone has a lateral fingerprint sensor and has a powerful PTT/MCPTT optimized chipset, a PTT side button, a channel selector switch, and an SOS button for emergency calls. The innovative loudspeaker design offers best audio quality while working. Suitable accessories can be connected via the 13-pin ISM interface of the MDM-compatible smartphone.

Approvals:
ATEX approval: EX zone 2/22 requested
II 3G ex ic IIC T4 GC
II 3D ex ic IIIC T135°C DC
IECEx approval: EX zone 2/22 applied for
Ex ic IIC T4 GC
Ex ic III T135°C DC

The provided product details are for information purposes only They do not constitute advice, or a recommendation for when and how to use the product in certain scenarios.
Moreover, the information provided on the webpage does not represent any form of recommendation or encouragement to use the product in certain areas or settings.
Unless stated otherwise, the provided information is subject to change.
If you have any questions with regard to the use or comprehension of the provided information, please get in touch with the manufacturer, or with an independent accredited consultant.

This text is machine translated.

Features

Approvals:
ATEX approval: EX zone 2/22 requested
II 3G ex ic IIC T4 GC
II 3D ex ic IIIC T135°C DC
IECEx approval: EX zone 2/22 applied for
Ex ic IIC T4 GC
Ex ic III T135°C DC
Amplified speaker for loud working environments
Replaceable, 4500 mAh battery
Programmable side button (e.g. for PoC/PTT)
Programmable red button (e.g. for sole protection against workers/SOS).

Scope of delivery

Smartphone with integrated battery
USB-C cable
Display protective film
Safety regulations.
