IVT 12/80 18320 Dual battery charger 12 V
EAN:
Part number:
Item no:
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
Highlights & Details
Two-battery charger
- Protects the start battery
- Intelligent Management between start-up and second battery
- Also best suited for solar systems
Technical specifications
- Product type
Dual battery charger
- Dim
(L x W x H) 125 x 62 x 50 mm
- Battery voltage
12 V
- Operating voltage
12 V / DC
- Recommended battery capacity at 12 V max.
500 Ah
- Suitable for
VRLA AGM
Lead acid
- Weight
400 g
- Width
62 mm
- Height
50 mm
- Length
125 mm
- Suitable for
Lead-acid batteries
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 856040 IVT 12/80 18320 Dual battery charger 12 V
Information
Information 856040 IVT 12/80 18320 Dual battery charger 12 V
Description

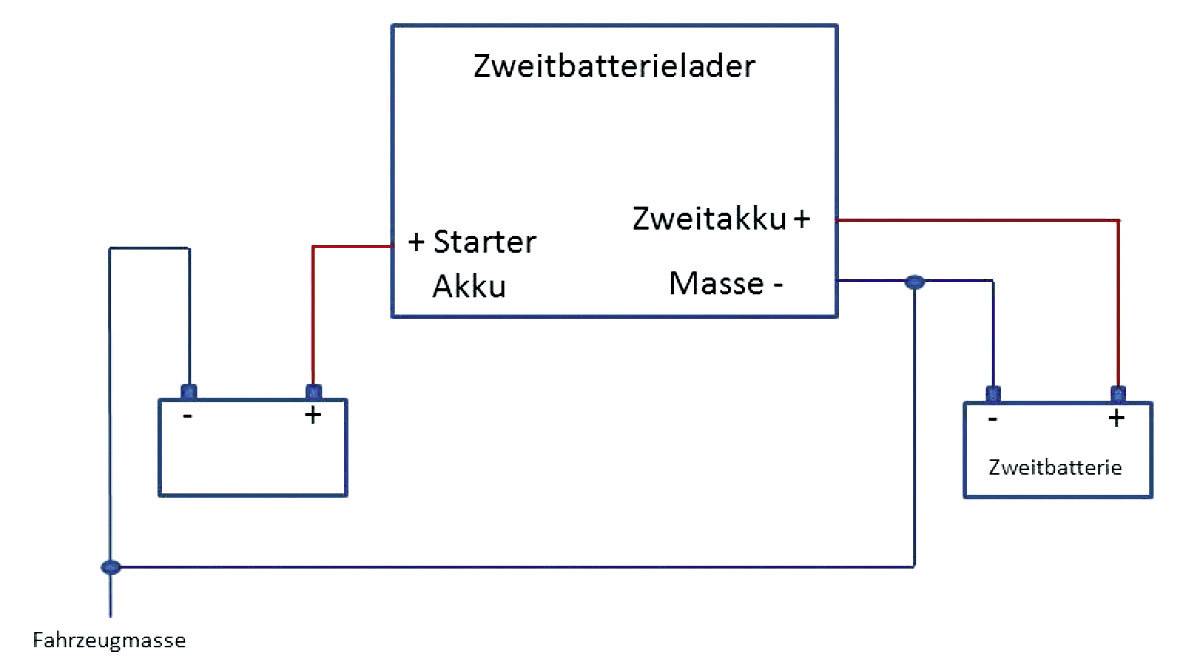

The starting battery is primarily charged while driving; if it is full then the second battery charger automatically switches to the second battery. Both the batteries are now charged through the alternator. Up to a total voltage of 12.8 V both the batteries remain connected in parallel. If the voltage falls down below 12.8 V, the two-battery charger automatically switches off the additional battery.
Additional consumers should be connected only to the second battery. A safe starting, even after longer shelf life (without charging), remains ensured. Ideal in conjunction with solar systems. The solar modules and the solar charge controllers are simply connected in parallel to the second battery.
The electronics is suitable for all 12 V lead-acid batteries. The charging current of an alternator is around 25% of the battery power. For instance, in case of a 100 Ah battery it is 25 A. When the two battery charger is used, this current then distributes itself over the two batteries. The switching capacity of the electronics suffices only for batteries till 500 Ah.
Additional consumers should be connected only to the second battery. A safe starting, even after longer shelf life (without charging), remains ensured. Ideal in conjunction with solar systems. The solar modules and the solar charge controllers are simply connected in parallel to the second battery.
The electronics is suitable for all 12 V lead-acid batteries. The charging current of an alternator is around 25% of the battery power. For instance, in case of a 100 Ah battery it is 25 A. When the two battery charger is used, this current then distributes itself over the two batteries. The switching capacity of the electronics suffices only for batteries till 500 Ah.
Features
- Max. switching current: 80 A
- Normal load: 60 A
- Max. voltage: 16V
- Working voltage: 0.6 V
- Working current: 300 mA
- Second charging starts at: 13.6 V, switches off at: 12.8 V
- Control-LED
- Break current: 5 mA.
