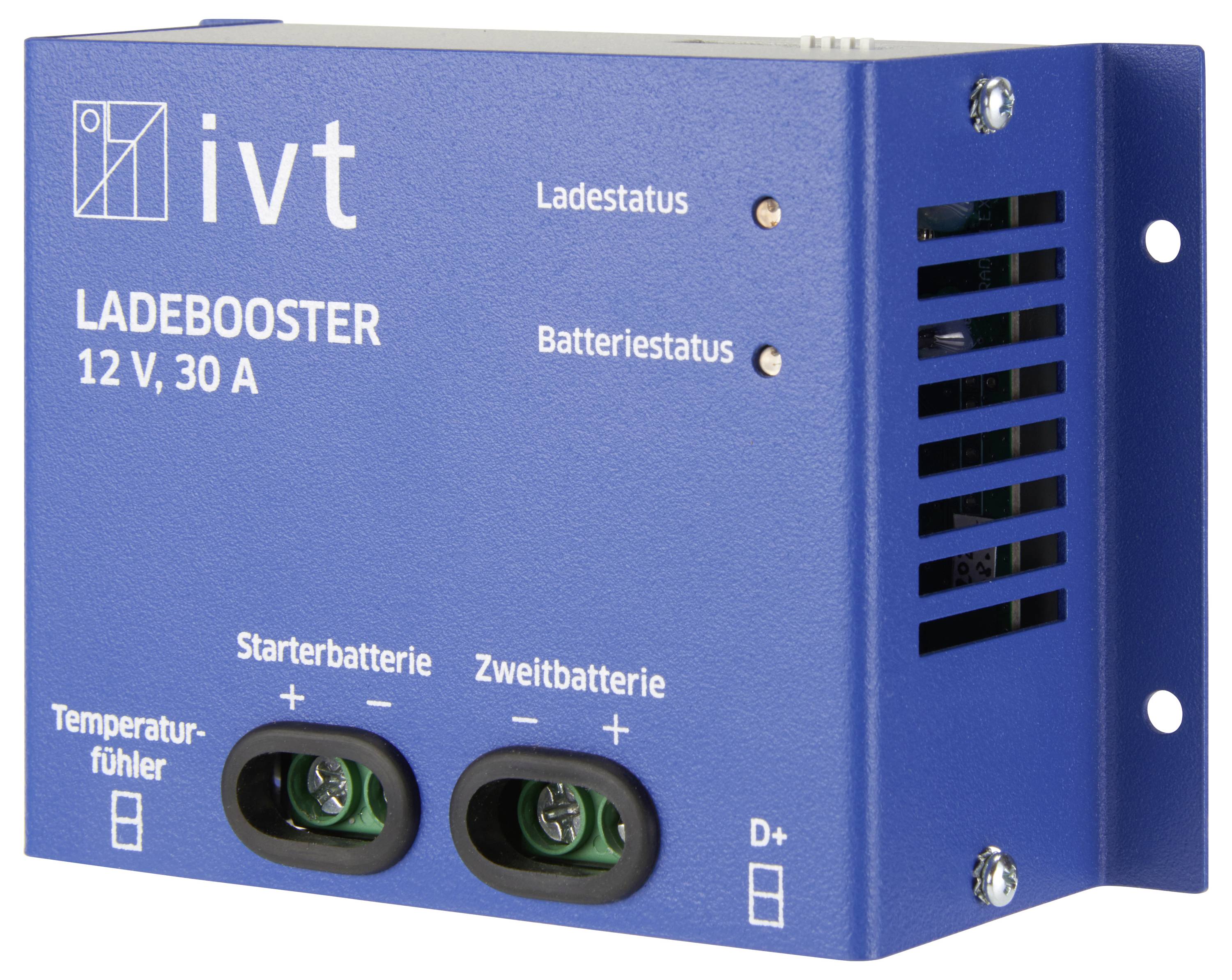

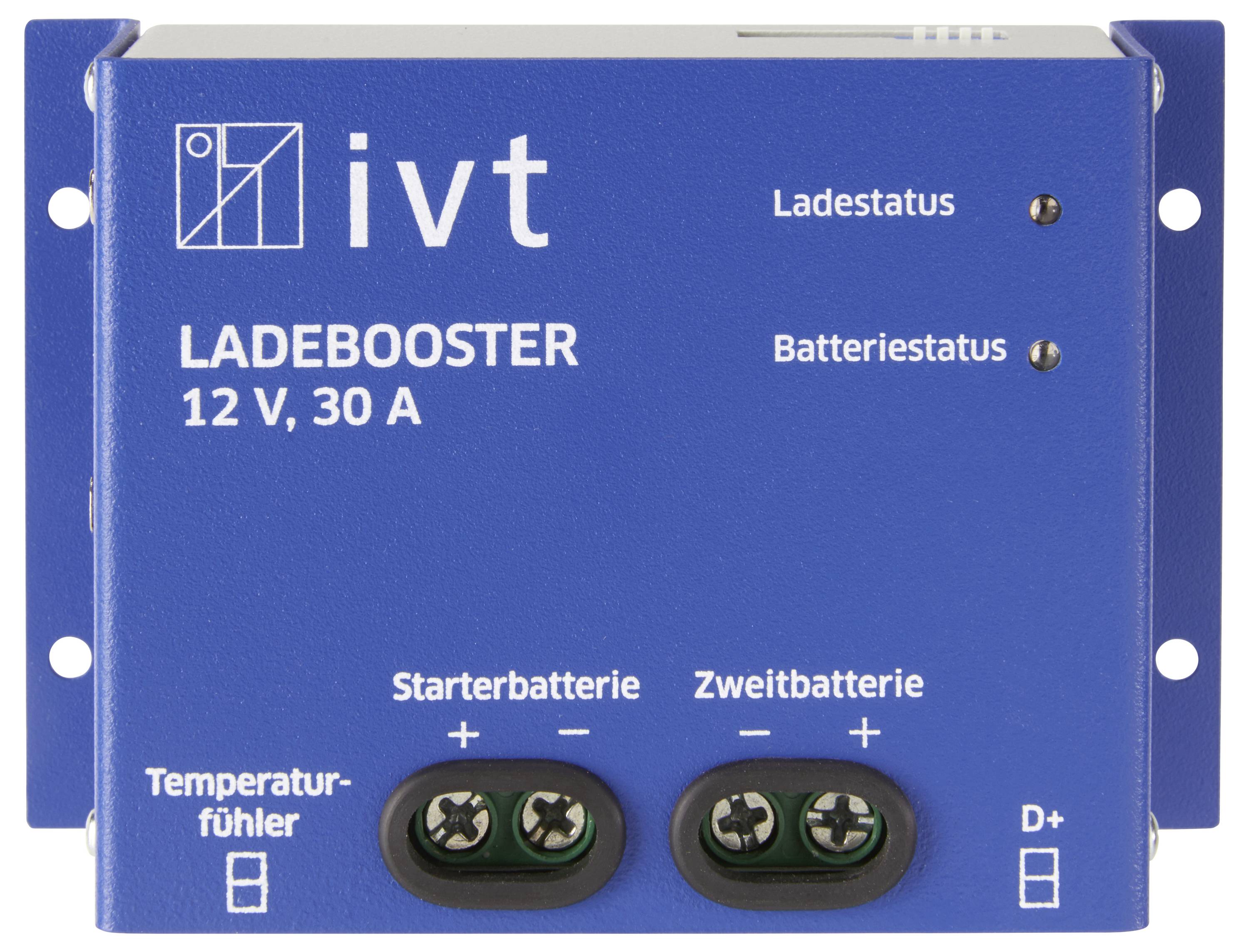

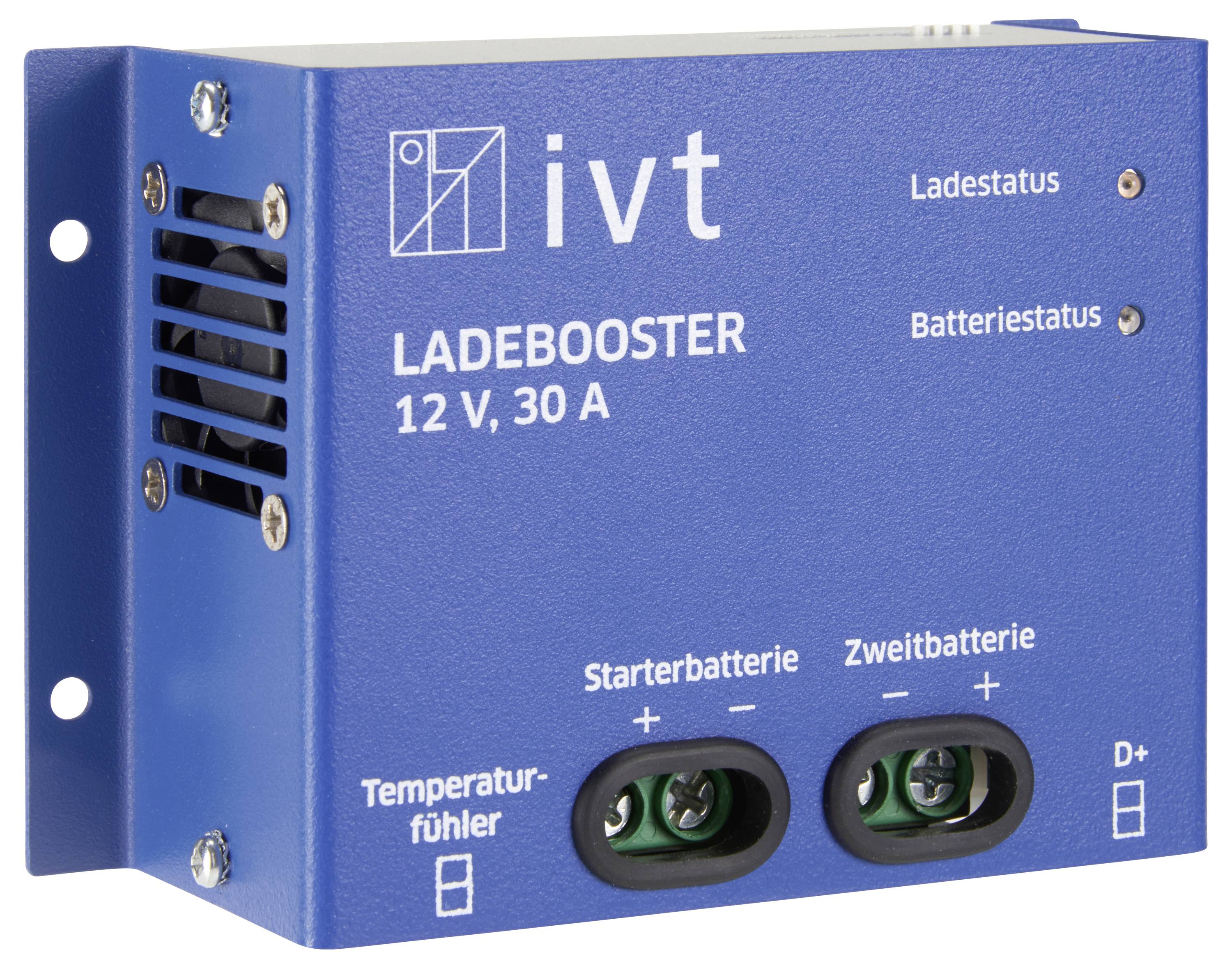

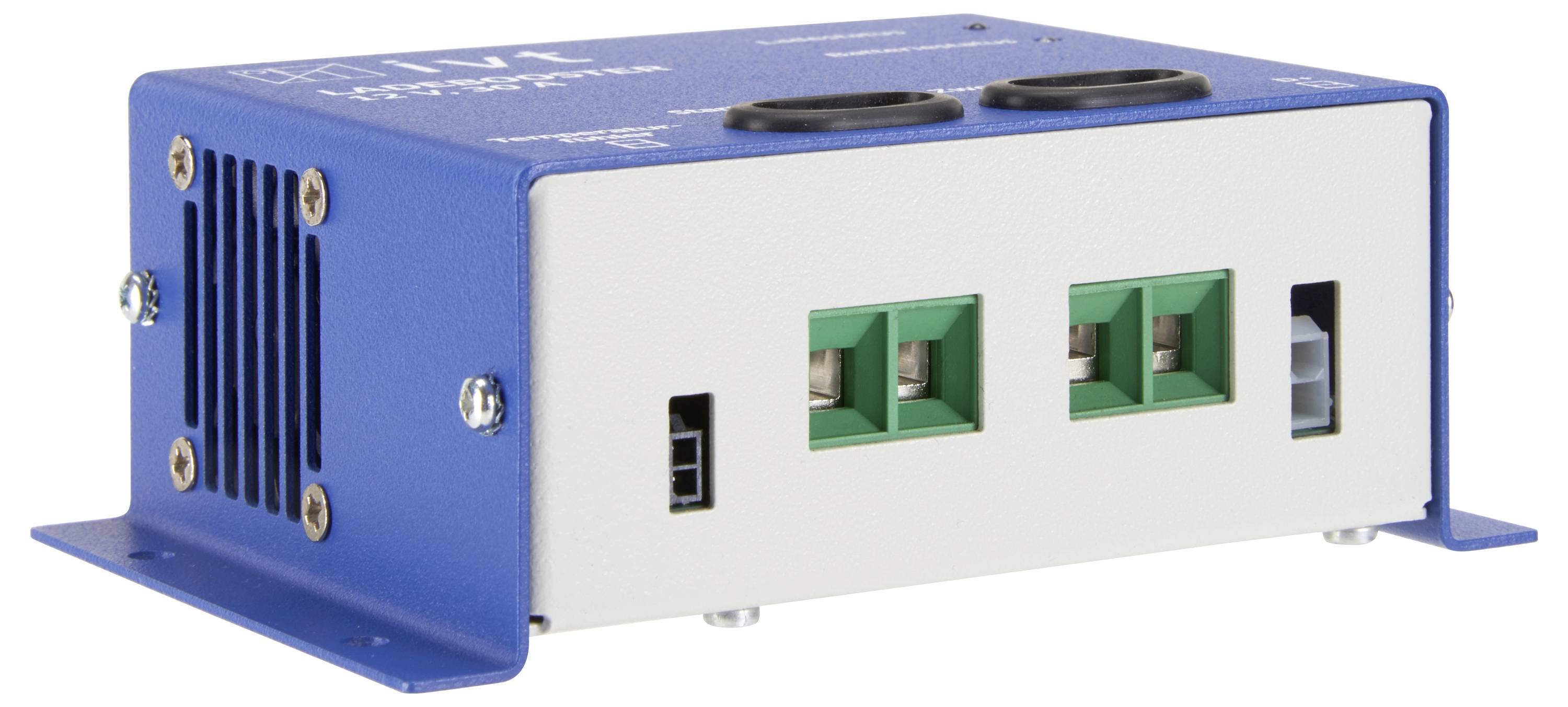

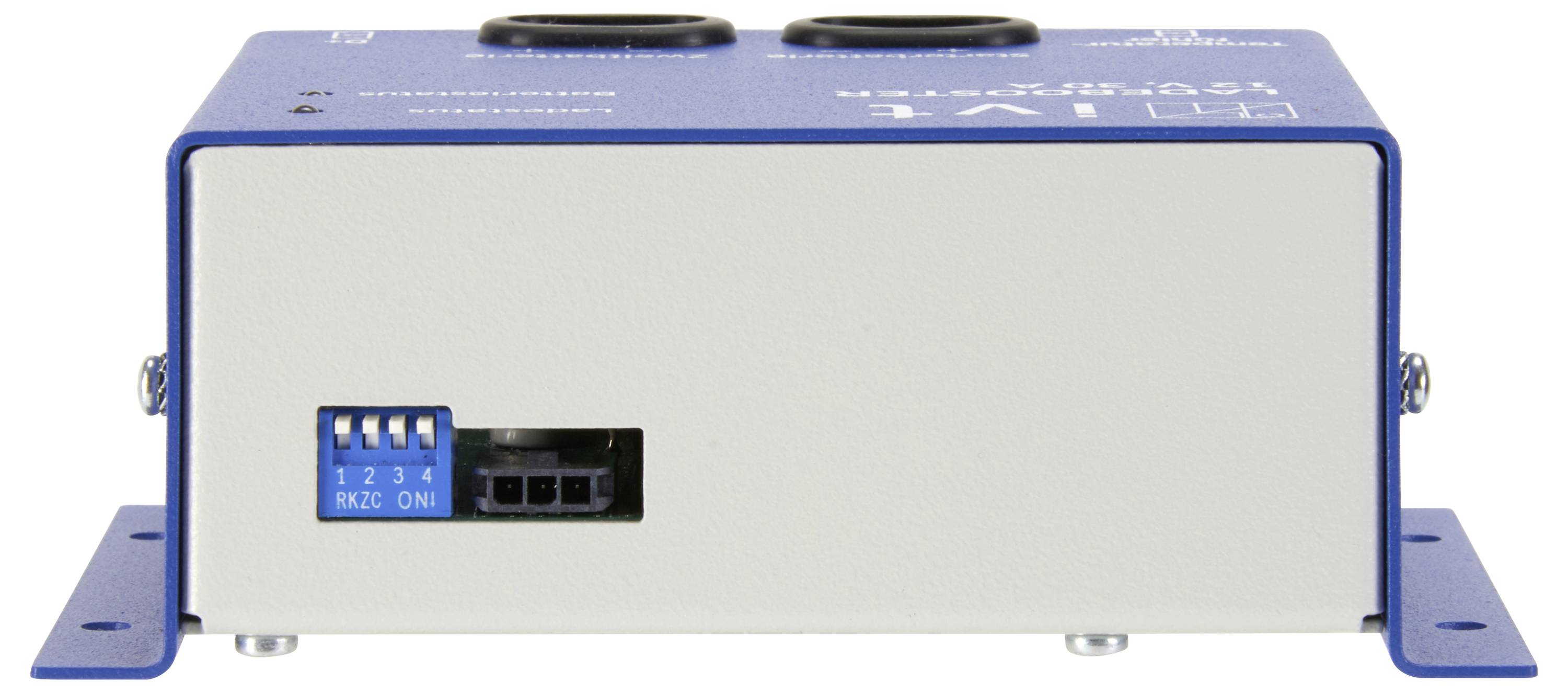

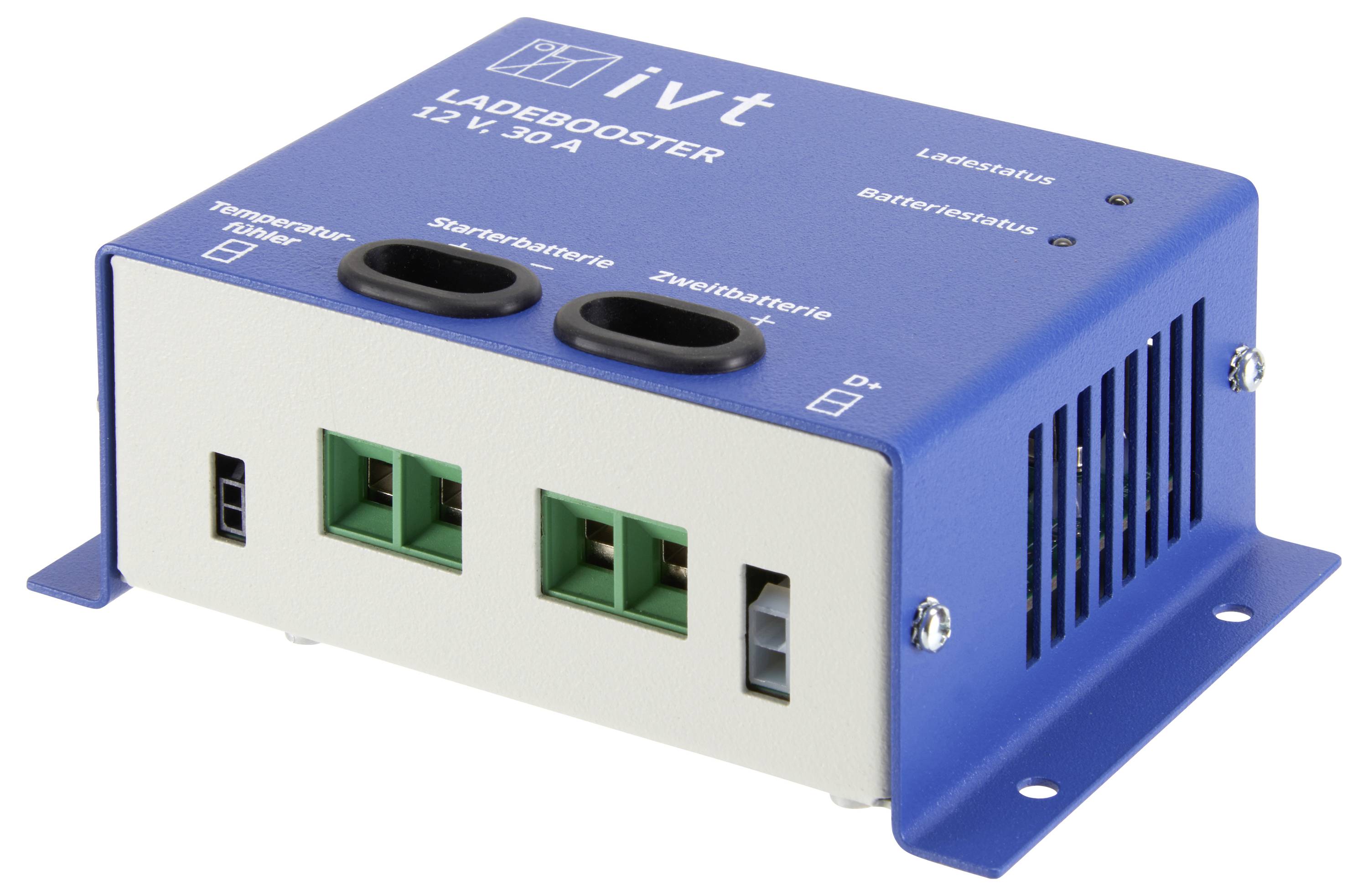

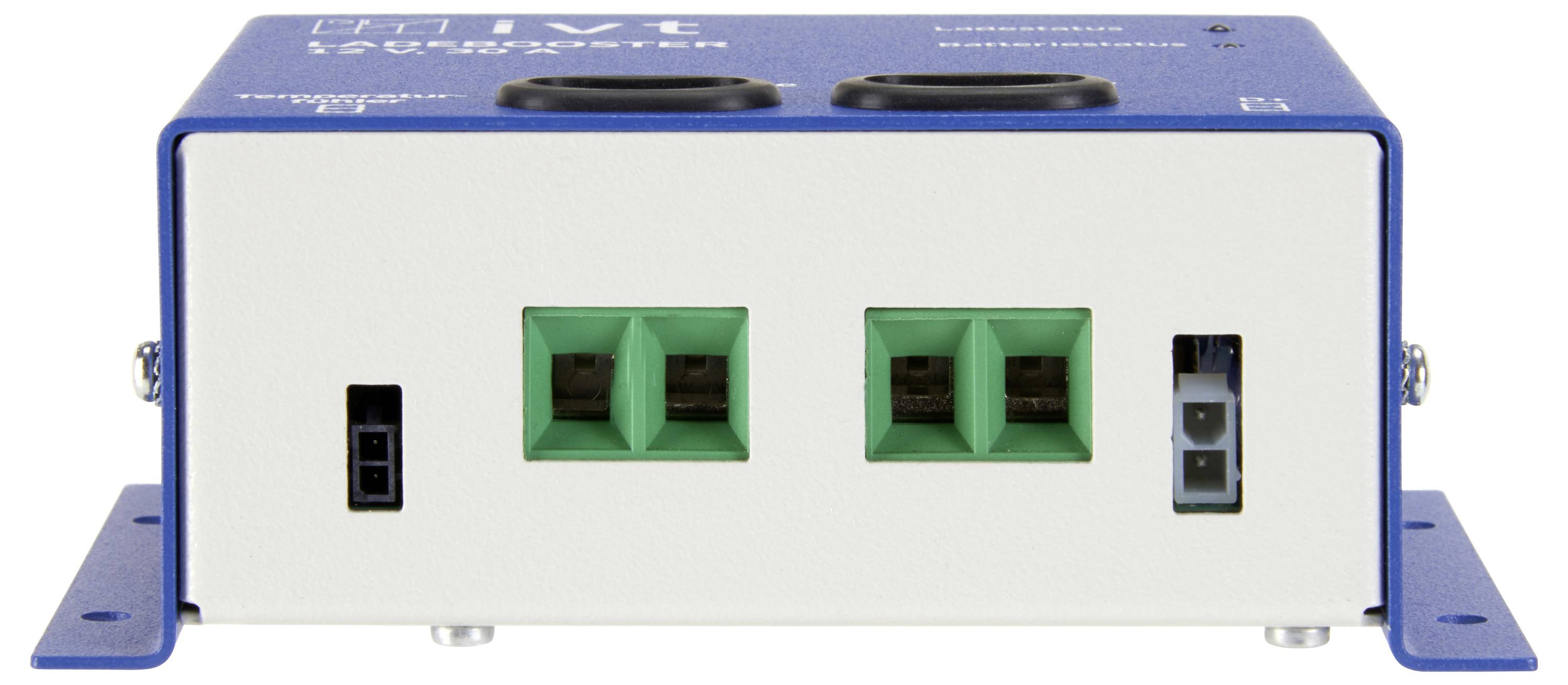

IVT 920073 Charging voltage booster 12 V 30 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
Highlights & Details
Booster car set IVT 12 V, 30 A, including connection material
- Complete set including connection material to batteries
- For charging 12 V car batteries while driving
- Mandatory for Euro 6 vehicles
- Also suitable for 12 V solar power systems
- Adjustable charging modes 30 A and 10 A
- For lead-acid, lead-gel, AGM and LiFePO4 batteries
- Power-dependent switch to charge retention
- Fast charging thanks to constant current charging (IUoU)
- Extensive protective functions.
Technical specifications
- Product type
Charging voltage booster

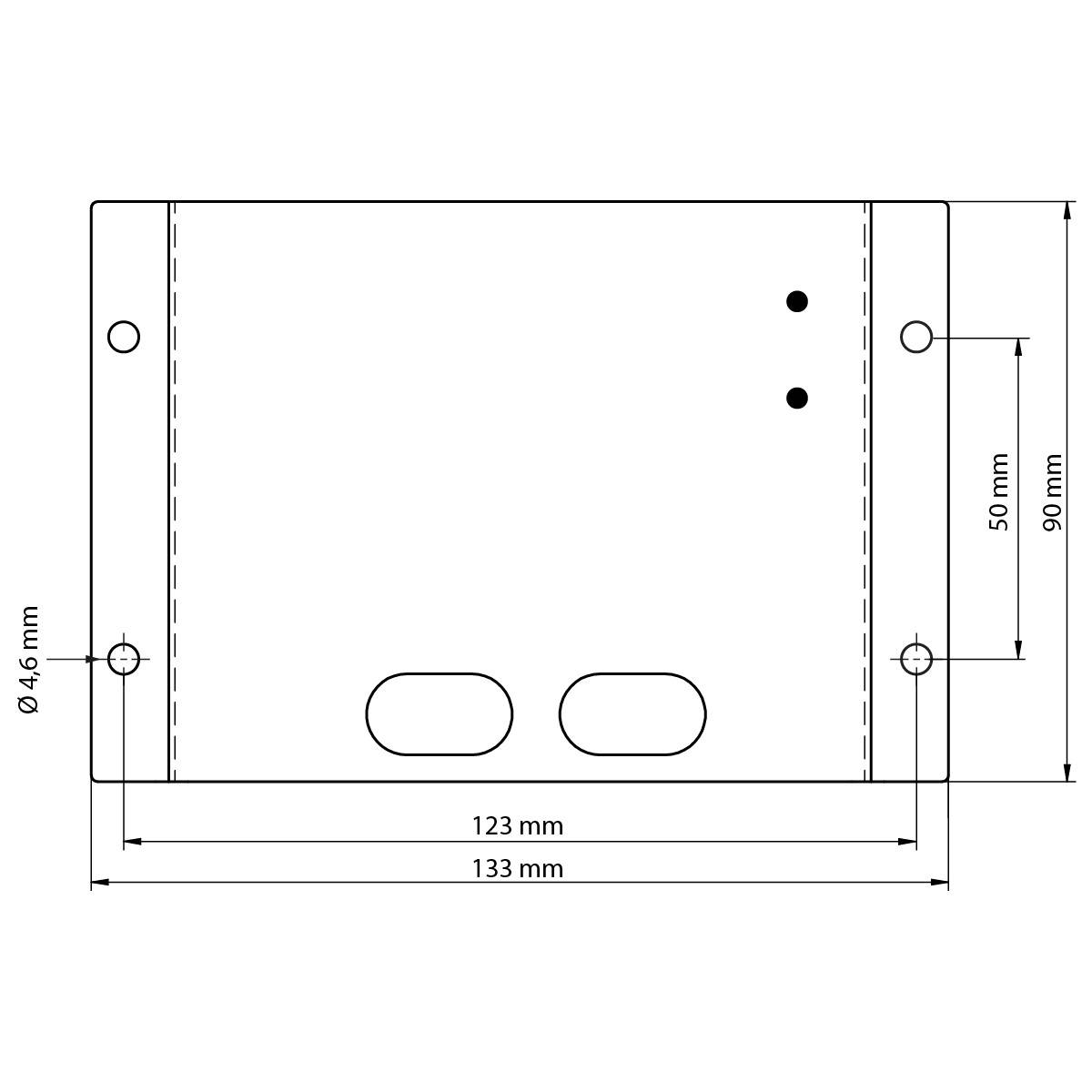

- Dim
(W x H x D) 133 x 90 x 49 mm
- Battery voltage
12 V
- Recommended battery capacity at 12 V min.
35 Ah
- Suitable for
VRLA AGM
PbCa
SLA
Lead acid
VRLA AGM
Lithium
- Weight
550 g
- Charging current at 12 V
30 A
- Width
133 mm
- Height
90 mm
- Depth
49 mm
Documents & Downloads
Datasheet
Datasheet 3403612 IVT 920073 Charging voltage booster 12 V 30 A
User & Safety Instructions
User & Safety Instructions 3403612 IVT 920073 Charging voltage booster 12 V 30 A
Description
Charger car set for mobile home, DIY and commercial vehicles
The intelligent IVT charging booster serves for charging lead-acid, lead-gel, AGM and lithium second batteries while driving in vehicles with 12 V systems.
The versatile charging booster has two charging levels
In 30 A mode, the second battery can be charged with up to 30 A with the device.
In the 10 A-Caravan mode the charging booster allows batteries in a caravan or trailer to be recharged via the plug coupling. In this mode, the charging current is limited to a maximum of 10 A.
The intelligent IVT loader booster is a synchronized ascending/descending converter, which compensates the fluctuating alternator voltage. As soon as an alternator signal is pending at the charging booster (D+), it goes into operation automatically. The connected second battery is charged independent of the alternator voltage. It switches to trickle charge function automatically and depending on the power.
The 'Car' charger booster set contains all materials for the electrical connection of the booster to the batteries in 30 A charging mode.
Note: Additional loads should be connected only to the second battery.
This text is machine translated.
The intelligent IVT charging booster serves for charging lead-acid, lead-gel, AGM and lithium second batteries while driving in vehicles with 12 V systems.
The versatile charging booster has two charging levels
In 30 A mode, the second battery can be charged with up to 30 A with the device.
In the 10 A-Caravan mode the charging booster allows batteries in a caravan or trailer to be recharged via the plug coupling. In this mode, the charging current is limited to a maximum of 10 A.
The intelligent IVT loader booster is a synchronized ascending/descending converter, which compensates the fluctuating alternator voltage. As soon as an alternator signal is pending at the charging booster (D+), it goes into operation automatically. The connected second battery is charged independent of the alternator voltage. It switches to trickle charge function automatically and depending on the power.
The 'Car' charger booster set contains all materials for the electrical connection of the booster to the batteries in 30 A charging mode.
Note: Additional loads should be connected only to the second battery.
This text is machine translated.
Features
- Using a booster, high-performance consumers can be operated on the second battery even with the engine running.
- A safe starting, even after longer shelf life (without charging), remains ensured.
- The service life of both batteries (starter battery and on-board battery) is extended considerably by means of an optimally charged and maintained second battery.
- When the nominal capacity is reached, the booster switches to trickle charge mode.
- Using the charging booster, different types of batteries can be charged
- The IVT booster can also be used in solar island systems with separated 12 V systems.
Scope of delivery
- Charging booster IVT 12 V, 30 A, included

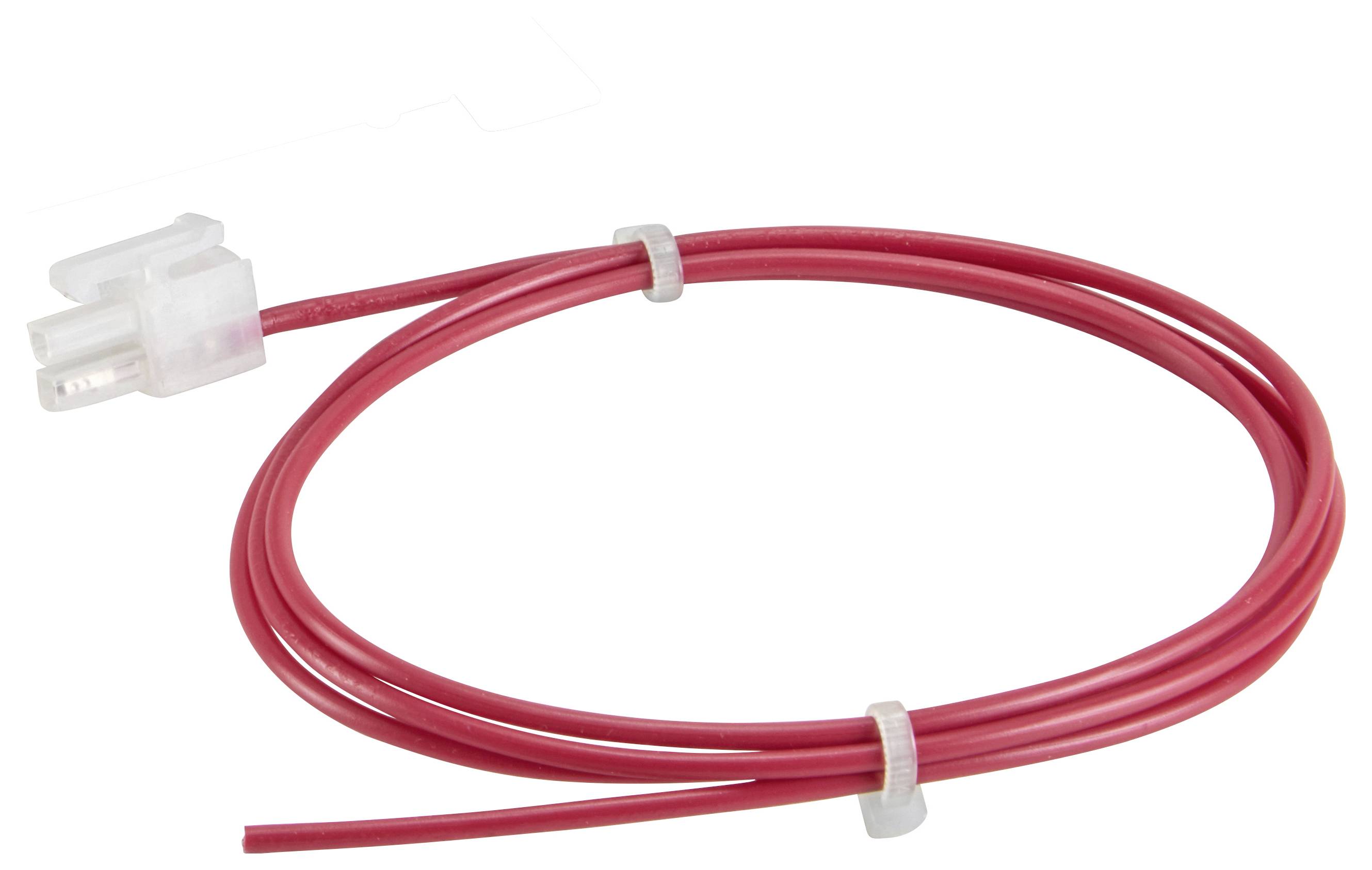

- D+ connection cable, 1 m
- 10 m single conductor 16 mm²
- 2 x mini ANL fuse holder
- 2 x mini ANL fuse 40 A
- 1 x fuse holder expansion
- 1 x Auto standard fuse 2 A
- User manual
