Ixxat 1.01.0210.20010 CAN-CR120/HV CAN/CAN FD repeater 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 509.00 / piece)
€ 509.00
incl. VAT
14-day return policy included
Highlights & Details
Can/CAN-FD repeater with screw connector, 3 kV isolation voltage, integrated bus resistor
- Protection of segments up to 3 kV
- Can and CAN-FD interfaces in one device
- Cost savings through simpler wiring
- Increased system reliability
- Very little effect on the real-time behavior of the system
Technical specifications
- Displays: Transmission process / defective segment (two Duo LEDs, one per segment), power (one LED)
- Can bus interface: ISO 11898-2 with CAN throttle. Two screw connectors.
- Can version available with or without integrated terminators.
- Can bit rates: Up to 1 Mbit/s.
- Can-FD bus interface: ISO CAN-FD and non-ISO CAN-FD
- Can-FD bit rates: Arbitrary rate up to 1000 kBit/s, data rate up to 8000 kbit/s. Data rates are verified by testing. User-defined bit rates are possible.
- Caution: The maximum data rate can be exceeded depending on the specific operating conditions (cable length, settings made, remote stations, etc.), but it cannot be reached either.
- Throughput delay: Type. 175 ns (corresponds to ~35 m cable length)
- Power supply 9 - 36 V/DC, type. 70 mA, max. 100 mA, via screw terminals
- Galvanic decoupling: 3 kV DC / 1 sec, 1500 V AC / 1 min; CAN 1, CAN 2 and
- Power supply is electrically isolated from each other.
- Temperature range: -20 ºC ... 70 ºC
- Housing, dimensions: Plastic DIN rail housing, approx. 22.5 x 105 x 114 mm
- Product type
CAN/CAN FD repeater
- Type
CAN-CR120/HV
- Min. operating temperature
-20 °C
- Operating voltage
9 -36 V DC
- Operating temperature
-20 °C (min)
- Dim
(W x H) 22.5 mm x 105 mm
- Height
105 mm
- Width
22.5 mm
- Manufacturer part #
1.01.0210.20010
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2497726 Ixxat 1.01.0210.20010 CAN-CR120/HV CAN/CAN FD repeater 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2497726 Ixxat 1.01.0210.20010 CAN-CR120/HV CAN/CAN FD repeater 1 pc(s)
Description
CAN-CR120/HV

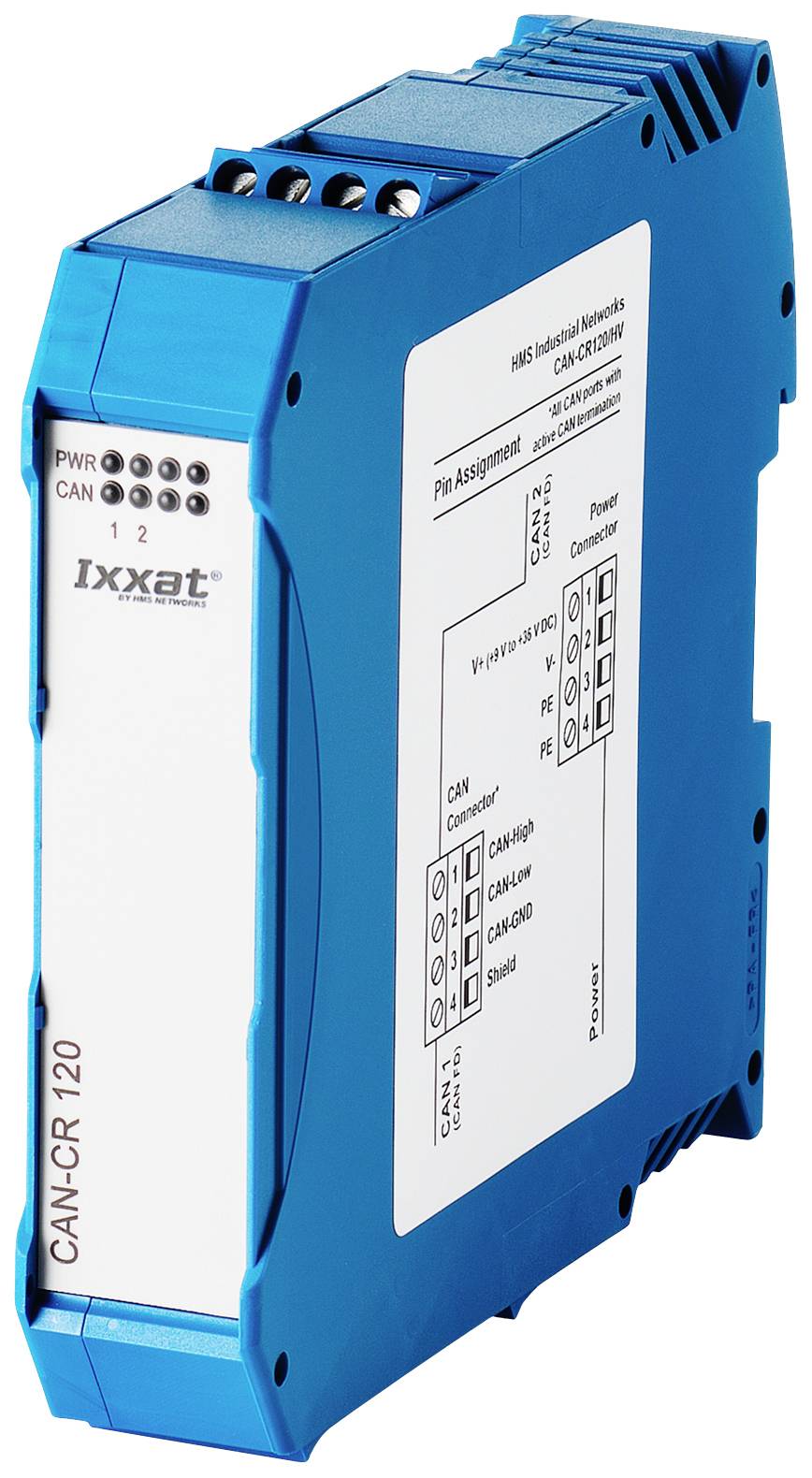

The CAN-CR120/HV is used for the galvanic separation of two segments of a CAN/CAN FD network. As a special feature, the repeater separates a defective segment from the rest of the network so that the remaining network can continue to work. After the fault has been rectified, the segment is automatically switched back on to the network. Galvanic isolation is carried out for both the CAN segments and the supply voltage.
This text is machine translated.
Scope of delivery
- CAN-CR120/HV
- Manual
