Ixxat 1.01.0231.12001 CAN-IB100/PCIe Interface card 3.3 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 529.00 / piece)
€ 529.00
incl. VAT
14-day return policy included
Highlights & Details
Passive CAN interface for PCI Express
- Low-cost passive interface (without microcontroller)
- Easily expandable with expansion cards and fieldbus extensions
- Electrical isolation of the CAN interface (1 kV, 1 sec.)

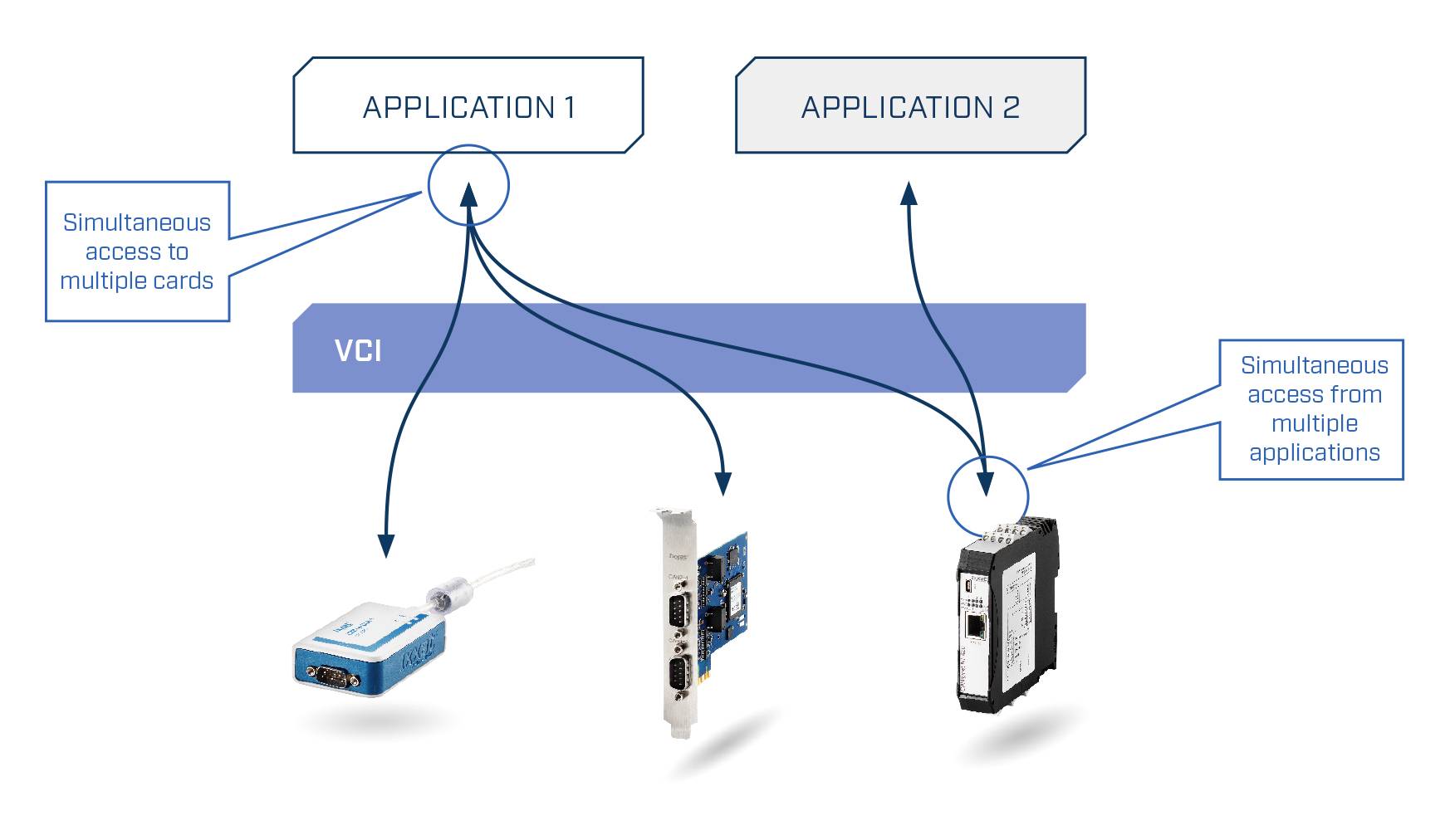

- Uniform driver packages for all IXXAT CAN and CAN-FD interfaces enable easy change of the PC interface type

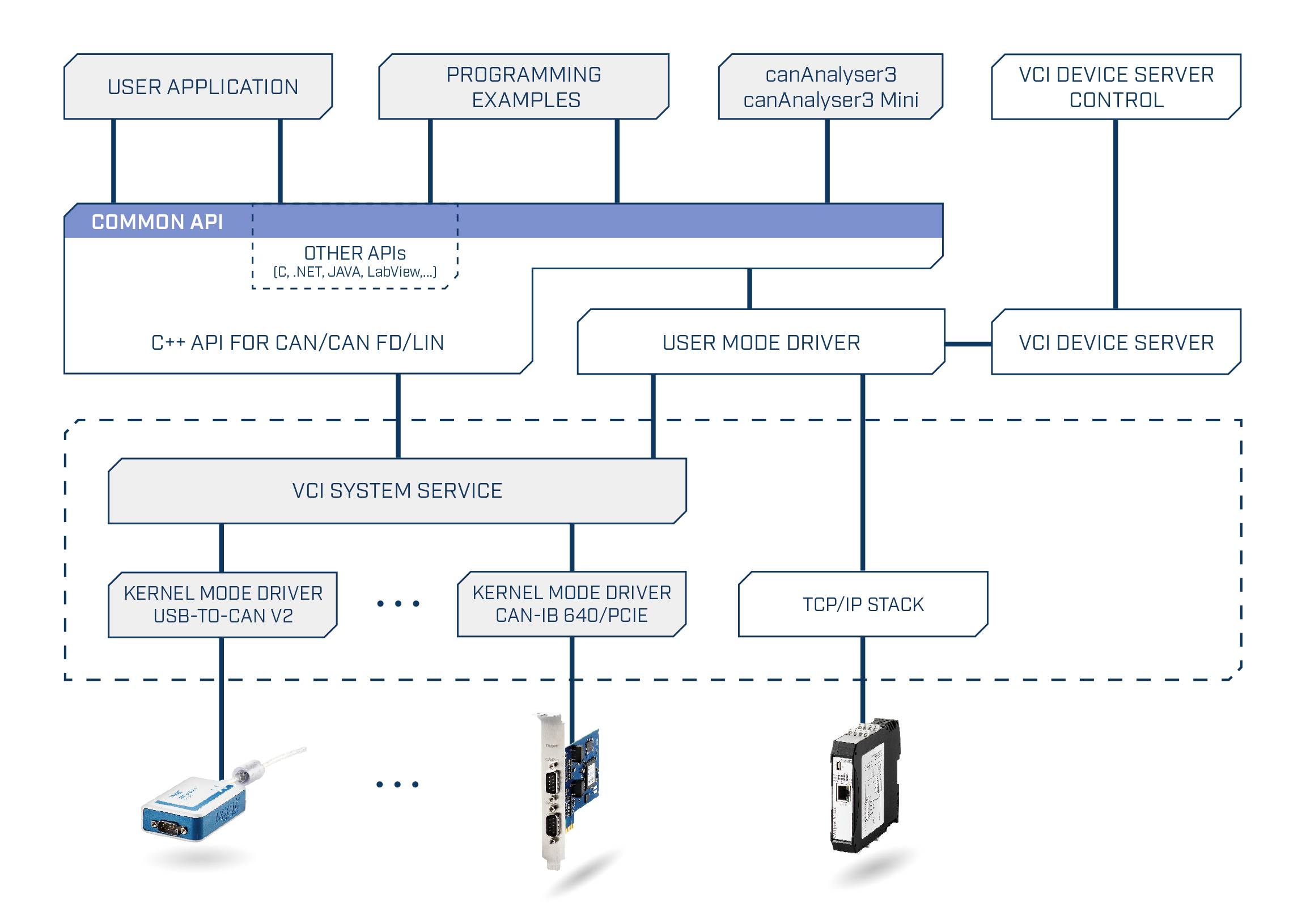

- Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, intimate and VxWorks
Technical specifications
- Operating voltage 3.3 V via PCIe
- Interfaces: 1 CAN interface; CAN 2.0 A/B; Sub-D9 plug according to CIA 303-1
- PC bus interface: PCI express (V1.1)
- PC address range: Plug & Play
- Product type
Interface card
- Type
CAN-IB100/PCIe
- Operating voltage
3.3 V
- Min. operating temperature
0 °C
- Operating temperature
0 °C (min)
- Dim
(L x W) 65 mm x 105 mm
- Width
105 mm
- Manufacturer part #
1.01.0231.12001
- Length
65 mm
- Interfaces
CAN
- Permanent current
350 mA
- Certification
CE, FCC
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 1670249 Ixxat 1.01.0231.12001 CAN-IB100/PCIe Interface card 3.3 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1670249 Ixxat 1.01.0231.12001 CAN-IB100/PCIe Interface card 3.3 V 1 pc(s)
Description
The CAN-IB 100/PCIe is available with up to four CAN channels. For use in the automotive sector is an optional switching of the high-speed CAN channels via software on low-speed can be possible. If necessary, the number of CAN interfaces through the use of multiple cards in a computer can be expanded.
In addition, the modular architecture of the interface card is a simple extension for more customer-specific interfaces by means of attachment modules.
This text is machine translated.
In addition, the modular architecture of the interface card is a simple extension for more customer-specific interfaces by means of attachment modules.
This text is machine translated.
Scope of delivery
- PC/CAN card
- CAN-driver VCI for Windows 2000, XP, Vista, Windows 7, Windows 8.
- Simple CAN-Bus Monitor" Cananalyzer Mini"
- User manual.
