Joy-it CNC controller card 5 V, 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Only 2 Piece(s) available
Highlights & Details
16 channel optocoupler PoKeys 57 CNC
- Input voltage 5 to 24 V.
- 16 channels
Technical specifications
- Supply voltage 5 - 24 V.
- Insulation voltage 3000 VRMS
- Open collector Icmax 30 mA
- Max. Switching frequency 100 kHz
- Working temperature: -20 °C to +80 °C
- Operating voltage
5 V
24 V
- Length
38 mm
- Width
123 mm
- Dim
(L x W) 38 mm x 123 mm
- Manufacturer part #
POKEYS57CNC-OPTO
- Type
POKEYS57CNC-OPTO
- Product type
CNC controller card
Documents & Downloads
Datasheet
Datasheet 2362169 Joy-it CNC controller card 5 V, 24 V
User & Safety Instructions
User & Safety Instructions 2362169 Joy-it CNC controller card 5 V, 24 V
Description

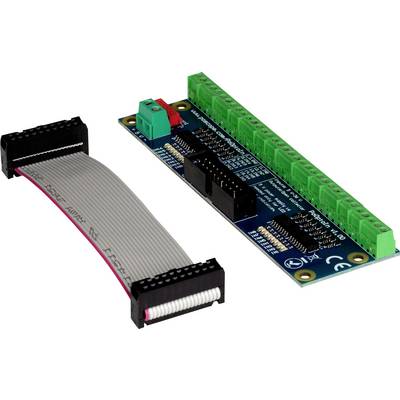

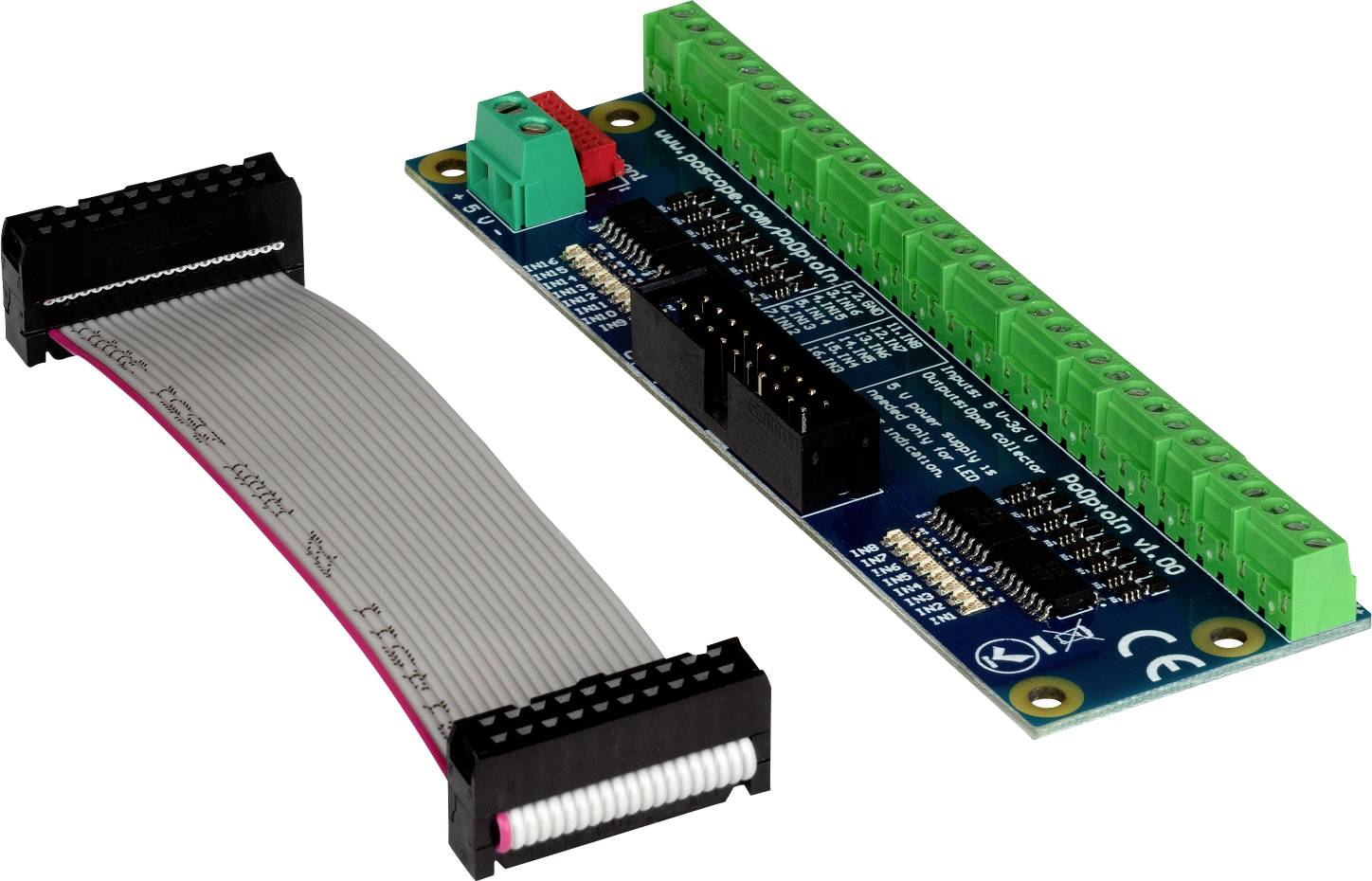

PoOptoIn is an industrial digital optical insulator with 16 channels. Thanks to a constant current LED driver circuit at the input, the isolator accepts input voltages from 5 to 24 volts. The digital outputs are of the type Open-Collector. Each digital input logic level is signaled with a status LED if an external 5V voltage is present at the mains connection. External 5V voltage is not a condition for PoOptoIn operation! The 20-pin IDC output connector is suitable for use with the PoKeys57CNC board or any other microcontroller board.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Printed circuit board
- Cable.
