Joy-it Embedded Pi5 Kit Raspberry Pi® 5 B 4 GB 4 x 2.4 GHz Housing, PSU, Noobs OS
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Total (€ 172.26 / piece)
€
Technical specifications
- Product type
SBC starter kit
- Type
Raspberry Pi® 5 B
- SoC
Broadcom BCM2712
- Processor
ARM Cortex-A76
- Processor cores (No.)
4 x
- GPU
Broadcom Video Core VII
4 GB
- Clock speed
2.4 GHz
- Memory type
DDR4
SRAM
- Operating system (Version)
Noobs
- Memory capacity
32 GB
- Internal ports
CSI (camera)
DSI (display)
GPIO (40-pin)
- External ports
2x USB 2.0
2x USB 3.0
LAN (10/100/1000)
2x HDMI™
micro SD
USB-C® (current)
PCIe 2.0
- Wi-Fi
b/g/n/ac
- Bluetooth
5.0
- Power supply (LOV)
via USB
- Output voltage
5 V DC
- Output current
5 A
- Content
Housing
PSU
Noobs OS
- Length
85 mm
- Width
56 mm
- Height
17 mm
Documents & Downloads
Datasheet
Datasheet 3221488 Joy-it Embedded Pi5 Kit Raspberry Pi® 5 B 4 GB 4 x 2.4 GHz Housing, PSU, Noobs OS
Datasheet 3221488 Joy-it Embedded Pi5 Kit Raspberry Pi® 5 B 4 GB 4 x 2.4 GHz Housing, PSU, Noobs OS
Datasheet 3221488 Joy-it Embedded Pi5 Kit Raspberry Pi® 5 B 4 GB 4 x 2.4 GHz Housing, PSU, Noobs OS
User & Safety Instructions
User & Safety Instructions 3221488 Joy-it Embedded Pi5 Kit Raspberry Pi® 5 B 4 GB 4 x 2.4 GHz Housing, PSU, Noobs OS
Description

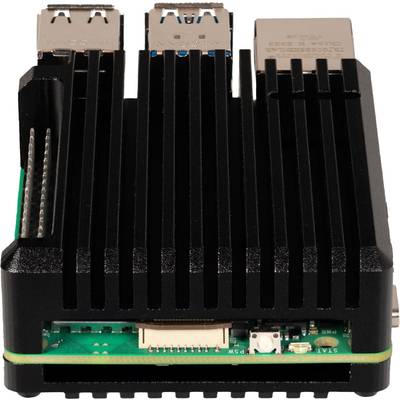

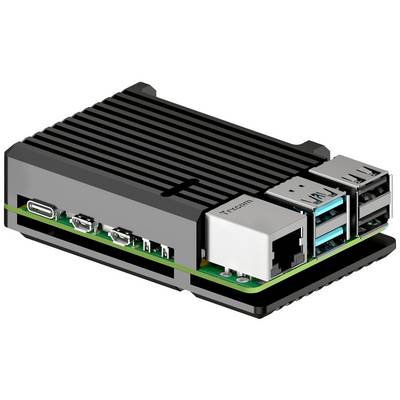

This kit from Joy-it provides you with all the essential components you need for industrial 24/7 applications.
The special housing used meets the same many demanding criteria:
- Passive, silent, perfect cooling even in very warm environments
- The height of the Raspberry Pi is not changed and no additional space is required
- The black anodized housing is very robust and also protects the Pi against strong shocks or vibrations. The housing and the Pi form a highly protected unit due to the cut-outs of the part resting on the Pi.
This text is machine translated.
The special housing used meets the same many demanding criteria:
- Passive, silent, perfect cooling even in very warm environments
- The height of the Raspberry Pi is not changed and no additional space is required
- The black anodized housing is very robust and also protects the Pi against strong shocks or vibrations. The housing and the Pi form a highly protected unit due to the cut-outs of the part resting on the Pi.
This text is machine translated.

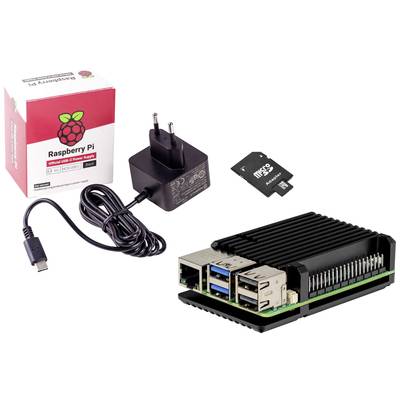

Scope of delivery
- Raspberry Pi® 5 B (4 GB)
- Passively cooled aluminum housing
- Original Raspberry Pi® power supply
- 32GB microSD-card with Raspberry Pi® operating system
