Buy Joy-it JT-DPM8650 DC/DC converter 75 V DC - 60 V DC/50 A 3000 W

Electronic device with display showing voltage (V) and current (A). Adjustment buttons are located underneath.

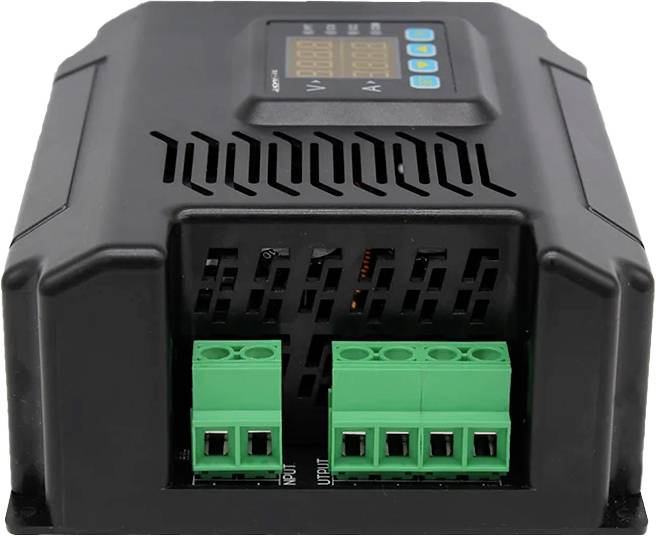

Black electronic device with a digital display and two green connection terminals. Potentially a voltage converter.

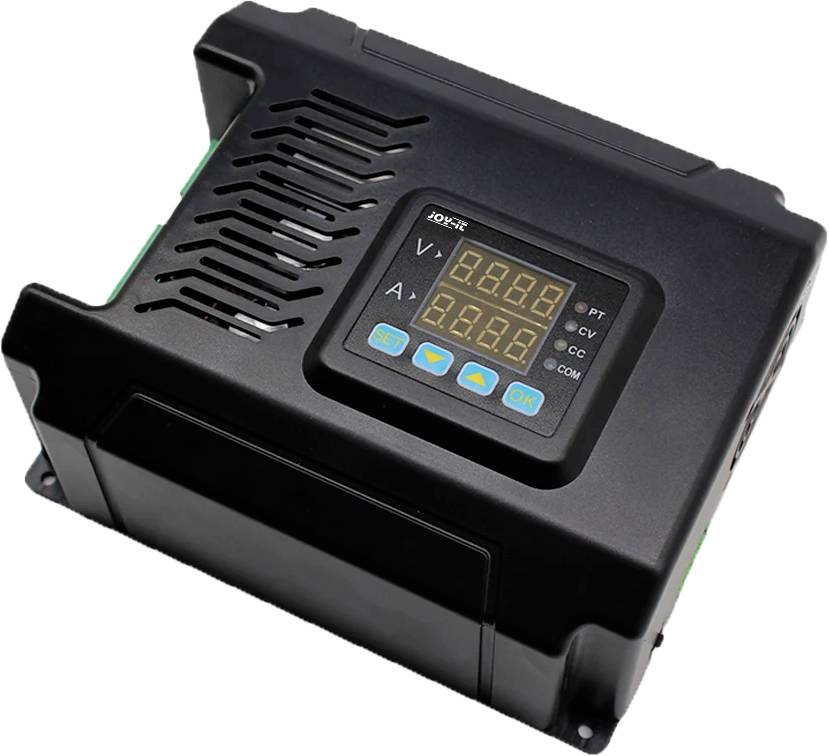

A black electronic measuring device with a digital display shows voltage (V) and current (A). It has several buttons for operation.

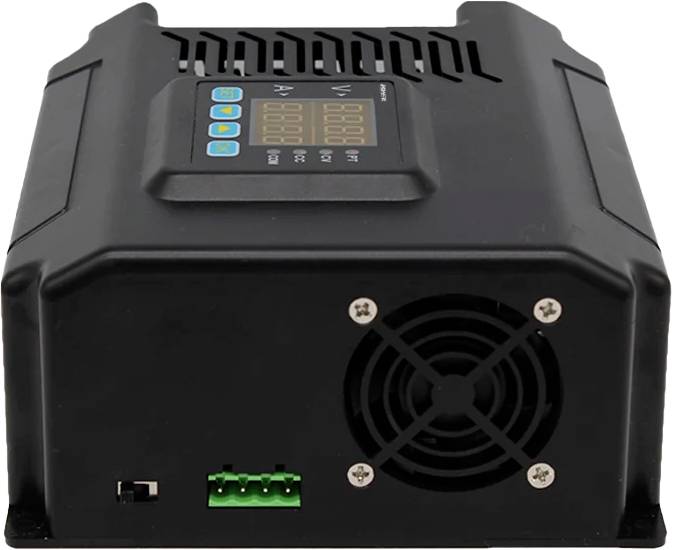

A rectangular black device with a radiator fan, green connectors, and a control panel with blue buttons on the top surface.

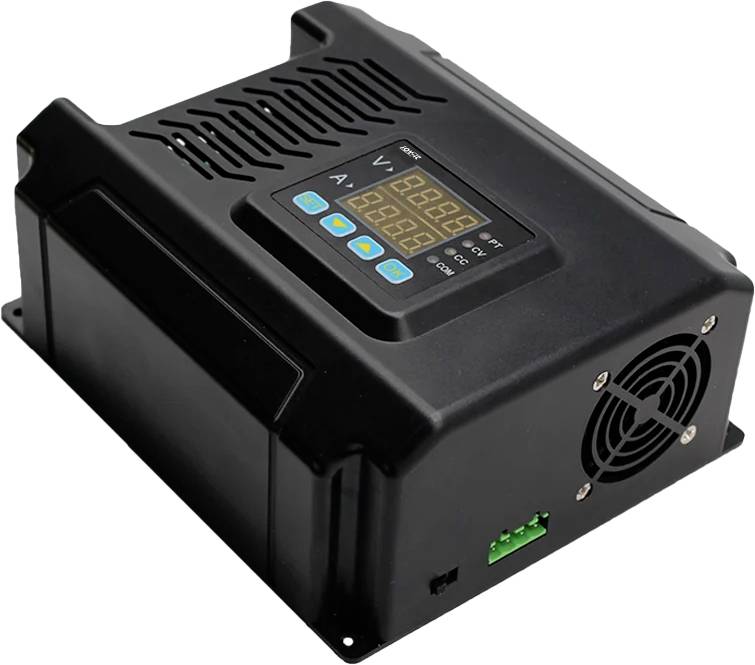

Electronic device in a black casing with a digital display and fan. Displaying voltage, current, and other settings.

1/5

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

30 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 163.86 / piece)

€ 163.86

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Interface Modbus RS-485 / can be controlled via PC
Power supply 10 V
Output voltage 0 - 60V
Current 0-50 A.
Power output 0-3000 W
Voltage resolution 10mV
Remaining ripple: Clear 50mVpp
Response time: Cl. 50 ms
Display accuracy voltage 10 mV
Display accuracy current 10 mA
Voltage fault tolerance: 0.2%
Power fault tolerance: 0.5%
Optional: Remote access via remote control (radio, 10 meters)

Product type: DC/DC converter

Used at: Indoors
Outdoors

Output: Screw terminals

No. of outputs: 1 x

: 3000 W

Input voltage: 75 V DC

Output voltage: 60 V DC

Max. output current: 50 A

Output current (max.) - rounded: 50 A

Dim: (L x W x H) 150 x 180 x 77 mm

Weight: 2200 g

Content: 1 pc(s)

Width: 180 mm

Height: 77 mm

Length: 150 mm

Type: JT-DPM8650

Type: Buck

Residual ripple: 50 mVpp

Documents & Downloads

Datasheet

Datasheet 3059175 Joy-it JT-DPM8650 DC/DC converter 75 V DC - 60 V DC/50 A 3000 W

User & Safety Instructions

User & Safety Instructions 3059175 Joy-it JT-DPM8650 DC/DC converter 75 V DC - 60 V DC/50 A 3000 W

Description

The JT-DPM8650 is a programmable buck power supply. This power supply has both a constant voltage and a constant current mode. By the Modbus RS-485 interface it is also possible to make all settings comfortably via PC. A wireless radio remote control for this mains adapter is available as optional accessories. This enables the remote access (up to 10m without obstacles) to all settings and data.

This text is machine translated.

Features

Programmable buck power supply
Constant voltage mode
Constant current mode

Scope of delivery

DPM8650

Hints

Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
