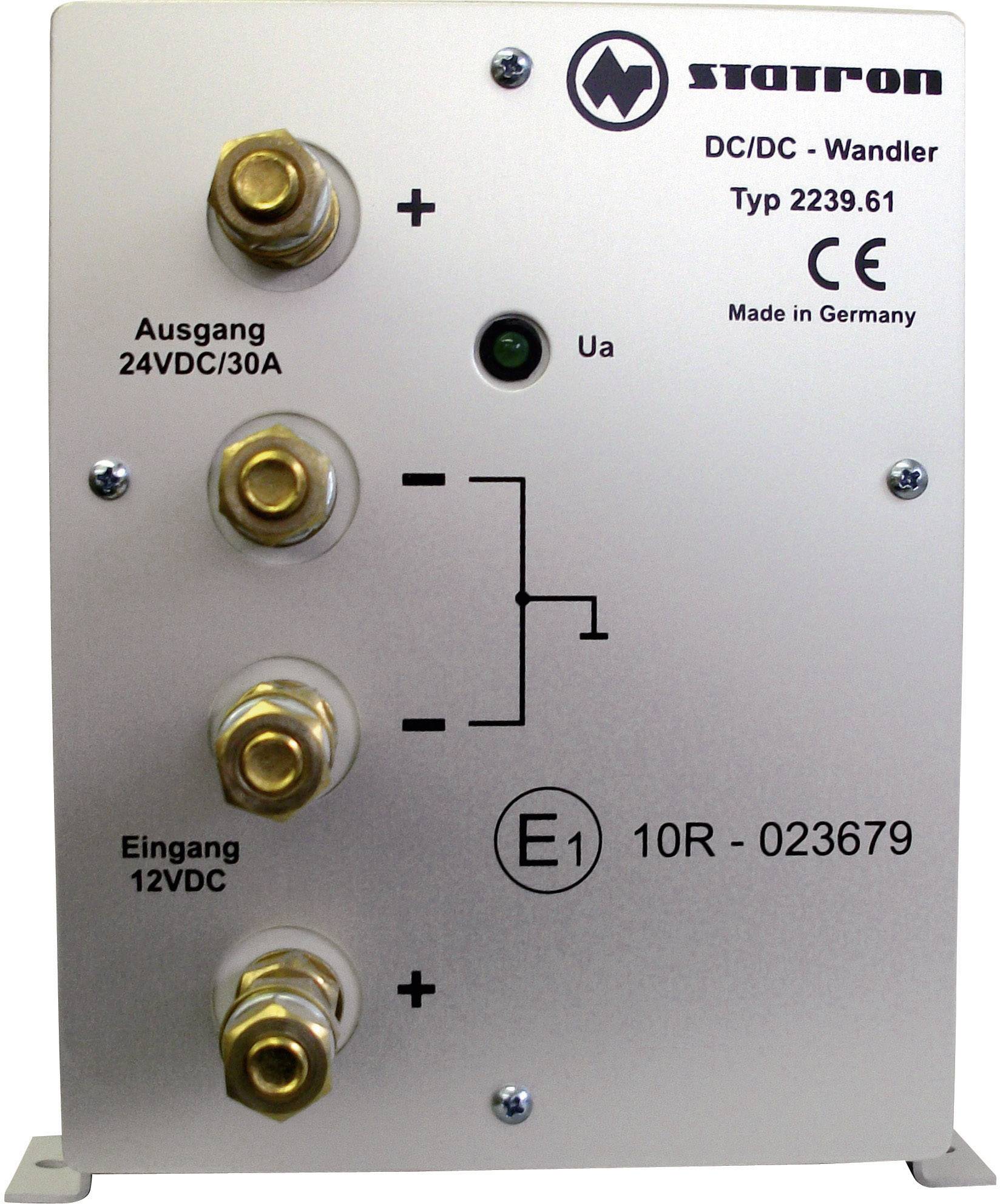

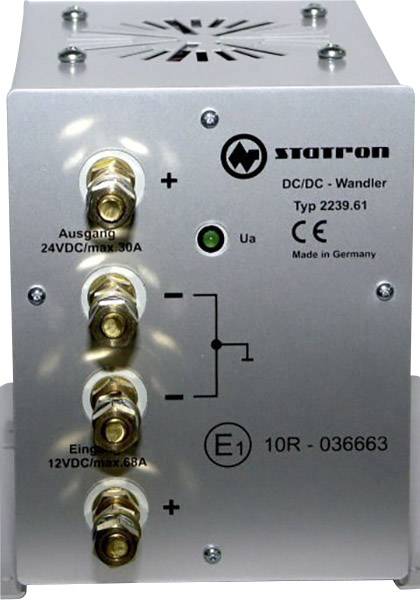

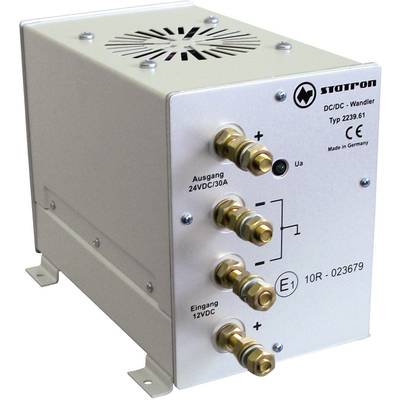

Statron 2239.61 DC/DC converter 12 V DC - 24 V DC/30 A 720 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Dc/dc converter 12/24
- Converts 12 V to 24 V
- High-quality and powerful
- Electrically connected
Technical specifications
- Protection class IP30
- Protection class III
- Idling current consumption 120 mA
- Settling time 1.5 s
- CV-stability load 0-100% 4 V
- CV-ripple ueff 25 mV
- M8 connector pins
- Input voltage
10.5 up to 14.5 V DC
- Product type
DC/DC converter
- Used at
Fixed
- Output
Connector piece
- No. of outputs
1 x
720 W
- Input voltage
12 V DC
- Output voltage
24 V DC
- Max. output current
30 A
- Output current (max.) - rounded
30 A
- Dim
(L x W x H) 230 x 145 x 158 mm
- Weight
2200 g
- Content
1 pc(s)
- Width
145 mm
- Height
158 mm
- Length
230 mm
- Type
2239.61
- Efficiency
85 %
Documents & Downloads
Datasheet
Datasheet 512326 Statron 2239.61 DC/DC converter 12 V DC - 24 V DC/30 A 720 W
User & Safety Instructions
User & Safety Instructions 512326 Statron 2239.61 DC/DC converter 12 V DC - 24 V DC/30 A 720 W
Description
Robust and powerful Synchronised voltage transformer to the operation of 24 V consumers on a 12 V power.
This text is machine translated.
This text is machine translated.
Features
- Low ripple
- No galvanic separation
- Robust Construction
- Voltage doubler
- E1 approval
- Short-circuit protection
- Overload protection
- Overvoltage protection
- Low-voltage switch-off
- Mounting bracket with bore
- Fan temperature switched
- LED display
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
