Buy VOLTCRAFT SMP-20A DC/DC converter 12 V DC - 12 V DC/1.5 A 18 W

A black universal power adapter with multiple adapters and a car charger plug, suitable for various electronic devices.

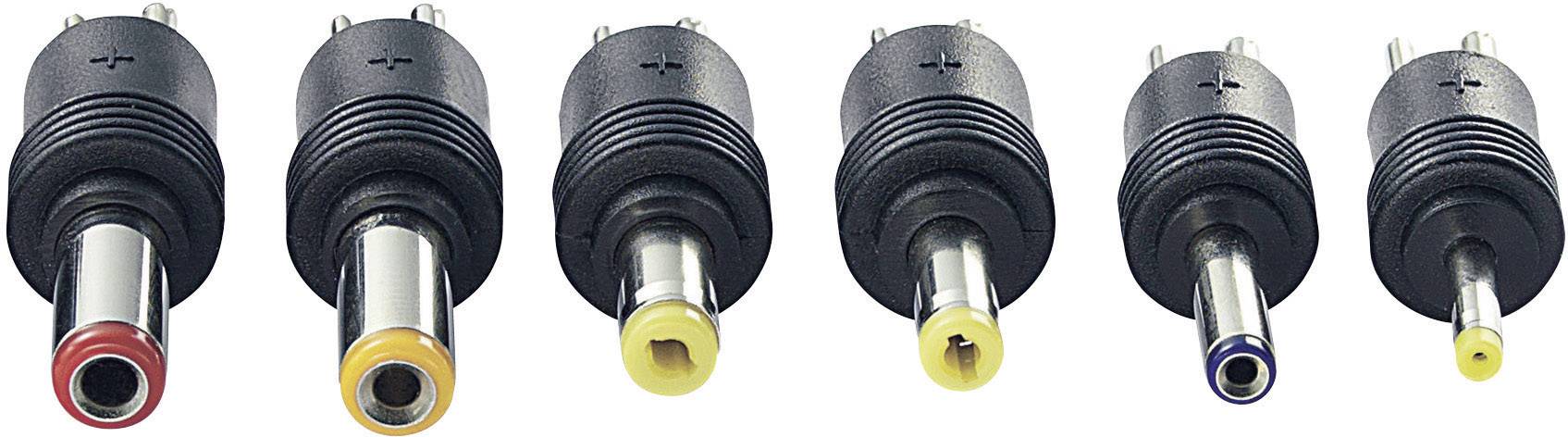

Six different cylindrical adapter plugs in a row, colour-coded at their tips: red, yellow, orange, green, blue.

1/2

Our service for you

Fast track dispatch on Thu, 24 Sep

230 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 14.28 / piece)

€ 14.28

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT SMP-20A DC/DC converter 12 V DC - 12 V DC/1.5 A 18 W

Especially designed for medium power devices (max 18W 1.5A)
7 voltage settings: 1.5, 3, 4.5, 6, 7.5, 9, 12Vdc
Includes 6 interchangeable hollow type and Sony camera power tips
Short circuit and overload protection

Technical specifications

Input voltage: 12 - 13.8 V DC

Product type: DC/DC converter

Used at: Car

Output: 2.35/0.75 coaxial connector
3.5/1.35 coaxial connector
4.0/1.7 coaxial connector
4.75/1.75 coaxial connector
5.5/2.1 coaxial connector

: 18 W

Input voltage: 12 V DC

Output voltage: 12 V DC

Connections: Cigarette lighter plug

Max. output current: 1.5 A

Output current (max.) - rounded: 1.5 A

Dim: (L x W x H) 90 x 55 x 25 mm

Weight: 170 g

Content: 1 pc(s)

Width: 55 mm

Height: 25 mm

Length: 90 mm

Type: SMP-20A

Efficiency: 86 %

EuP Status: Exempt

: 18 W

Output voltage: 1.5 - 12 V DC

Output current (details): 1.5 A

Type: Switched Mode

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 511720 VOLTCRAFT SMP-20A DC/DC converter 12 V DC - 12 V DC/1.5 A 18 W

eNum certificate

eNum certificate 511720 VOLTCRAFT SMP-20A DC/DC converter 12 V DC - 12 V DC/1.5 A 18 W

Warranty Terms

Warranty Terms 511720 VOLTCRAFT SMP-20A DC/DC converter 12 V DC - 12 V DC/1.5 A 18 W

Description

Voltcraft's SMP-20A in-car power adapter allows you to charge and power multimedia devices of max. 18W 1.5A using the cigarette lighter socket in your vehicle.

The charger comes with 6 interchangeable power tips (pictured) including a special adapter for Sony cameras to fit the majority of portable CD players, TVs, MP3 players, handheld games consoles, GPS systems and more.

Features

Adjustable output voltage: 1.5/3/4.5/5/6/9/12 V/DC.

Scope of delivery

Plugs (outer/inner diameter in mm) 2.35/0.75; 3.5/1.35; 4.0/1.7; 4.75/1.75; 5.5/2.1
1 adapter especially for Sony® cameras
User manual.

Hints

Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
