Joy-it RB-CAMERA-JT-V2-120 CMOS colour camera unit Compatible with (development kits): Raspberry Pi®
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Highlights & Details
8 MP camera for all PI, IMX219, viewing angle 120°, 3280x2464 pixels
- 8MP IMX219 sensorViewing angle 120° degreesPower supply for additional modules (3.3V) available6 mounting holes availableIncl. 15cm CSI cable
Technical specifications
- Sensor: IMX219Interface: CSIDistortion: Less than 13.6%Lens dimensions 6.5 x 6.5 mmAdditional modules (e.g. lighting can be supplied with 3.3V via the module)4 holes for attachment of accessories (total of 6 holes available)
- Product type
CMOS colour camera unit
- Suitable for
Raspberry Pi® 2 B
Raspberry Pi® 3 A+
Raspberry Pi® 3 B
Raspberry Pi® 3 B+
Raspberry Pi® 4 B
Raspberry Pi® 5 B
- Resolution
8 MP
- Viewing angle
120°
- Video resolution
1920 x 1080 Pixel
- Frames per second
30
- Pic resolution
3280 x 2464 Pixel
- Cable length
15 cm
- Focal length
1,8 mm
- F-numbers
2.0 F
- Operating voltage
3.3 V
- Length
24 mm
- Width
25 mm
- Height
6 mm
- Weight
4 g
- Compatible with
Raspberry Pi®
Documents & Downloads
Datasheet
Datasheet 2619576 Joy-it RB-CAMERA-JT-V2-120 CMOS colour camera unit Compatible with (development kits): Raspberry Pi®
User & Safety Instructions
User & Safety Instructions 2619576 Joy-it RB-CAMERA-JT-V2-120 CMOS colour camera unit Compatible with (development kits): Raspberry Pi®
Description

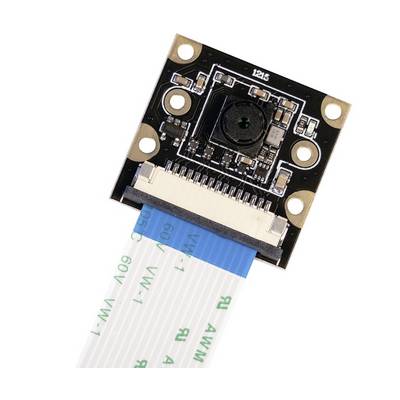

The camera module for all Raspberry models works with the well-known IMX219 chip and delivers best recordings in 8 MP quality at a viewing angle of 120°. In addition, it is possible to supply additional modules (e.g. lighting, etc.) with up to 3.3 V voltage via its own power supply. By means of additional brackets in the board, you can individually install the camera or mount further supplements.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Camera module, cable (15cm)
