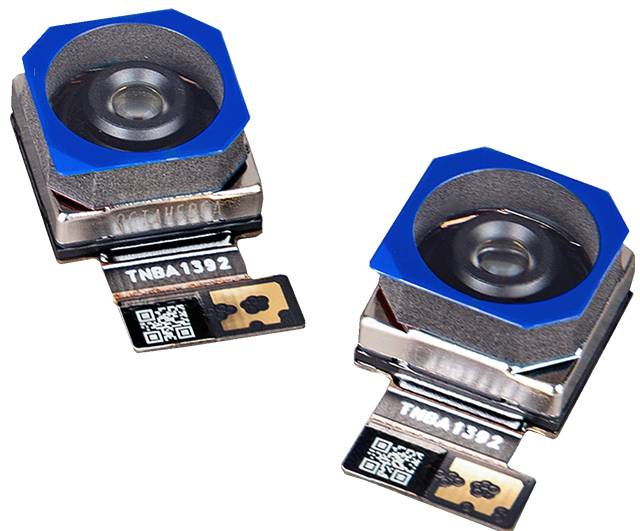

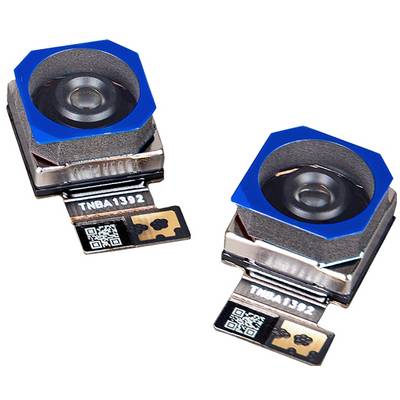

Raspberry Pi® SC0895 Camera Module 3 Sensor Assembly Wide CMOS colour camera unit Compatible with (development kits): Ra
EAN:
Part number:
Item no:
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
Highlights & Details
Raspberry Pi® Camera Module 3 Sensor Assembly Wide
- Wide-angle field of view (120°)
Technical specifications
- Product type
CMOS colour camera unit
- Compatible with
Raspberry Pi®
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443485 Raspberry Pi® SC0895 Camera Module 3 Sensor Assembly Wide CMOS colour camera unit Compatible with (development kits): Ra
Description
The Raspberry Pi Camera Module 3 Sensor Assembly contains the same sensor and auto-focus functions as the Raspberry Pi Camera Module 3 AF (Auto Focus), allowing you to integrate the functions of the 3 Camera Module into a greater number of form factors. This assembly provides a cost-effective way to equip smaller devices with imaging capabilities to reduce manufacturing complexity and time-to-market.
This text is machine translated.
This text is machine translated.
Features
- Sony IMX708 sensor
- 11.9 megapixel resolution
- Sensor size 7.4 mm sensor diagonal
- Pixel size: 1,4μm × 1,4μm
- Horizontal/vertical: 4608 × 2592 pixels
- Integrated IR-blocking filter in the standard variants; not present in the NOIR-versions
- Auto-focus phase detection
- Operating temperature 0 °C to 50 °C.
- On-board EEPROM for storage of camera data
Hints
Raspberry Pi Camera Module 3 Sensor Assembly will remain in production until at least January 2030
