Raspberry Pi® SC0870 SC0870 CMOS colour camera unit Compatible with (development kits): Raspberry Pi®
EAN:
Part number:
Item no:
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.

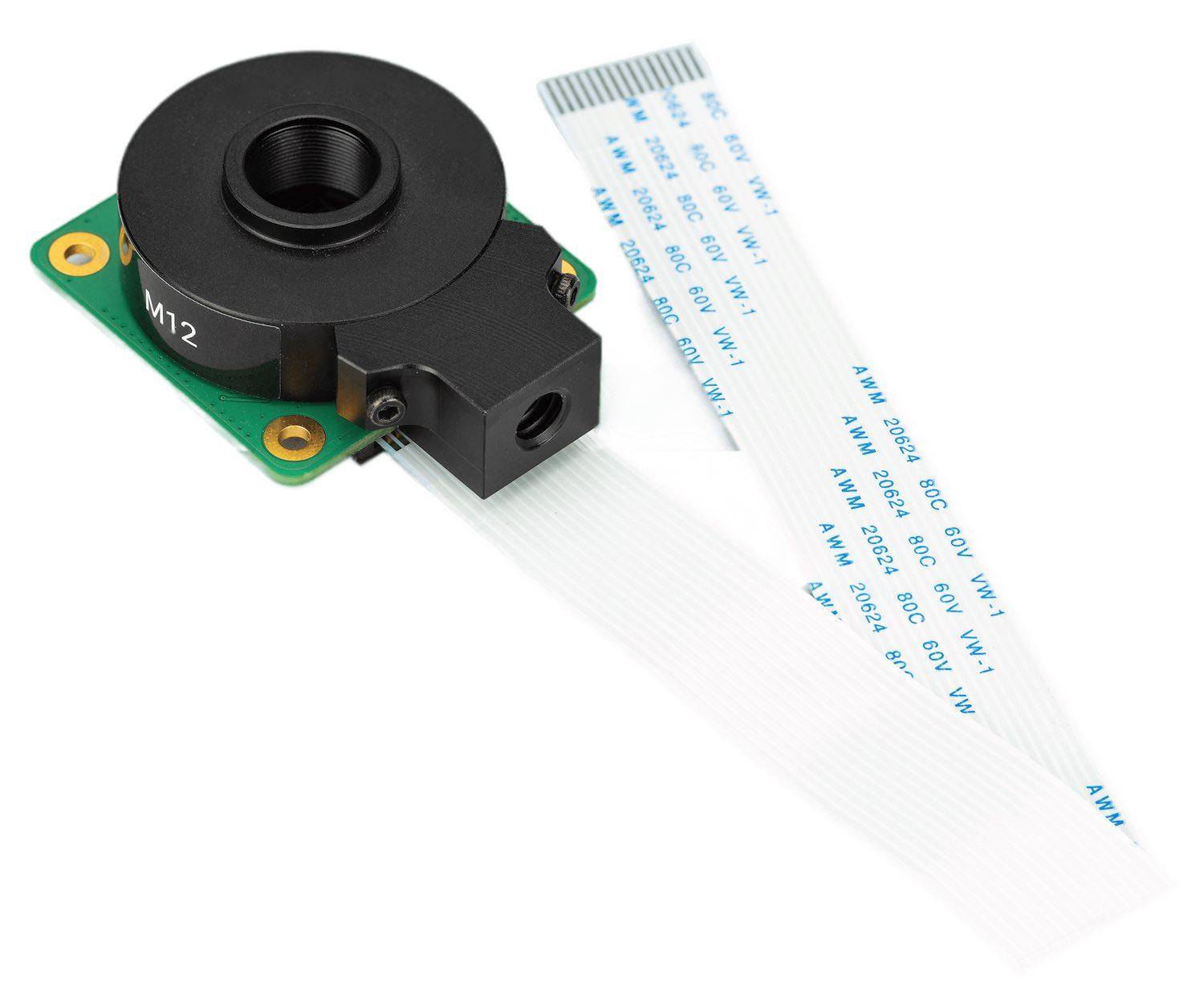

Raspberry Pi high-quality camera, M12 mount
Highlights & Details
- Sony IMX477R Stackable, backlit sensor
- 7.9 mm sensor screen
- 1.55 μm × 1.55 μm pixel size
- Output RAW12/10/8, COMP8
- Bearing dimension: Adjustable (2.6 - 11.8 mm)
- M12 lens type
- IR-blocking filter: Integrated (the blocking filter can be removed, but this is irreversible)
- Length of ribbon cable 200 mm
- 1/4" -20 tripod socket
Technical specifications
- Product type
CMOS colour camera unit
- Suitable for
Raspberry Pi® A
Raspberry Pi® A+
Raspberry Pi® 3 A+
Raspberry Pi® B
Raspberry Pi® B+
Raspberry Pi® 2 B
Raspberry Pi® 3 B
Raspberry Pi® 3 B+
Raspberry Pi® 4 B
Raspberry Pi® 5 B
Show more
- Video resolution
1920 x 1080 Pixel
- Pic resolution
4128 x 3096 Pixel
- Cable length
20.00 cm
- Compatible with
Raspberry Pi®
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2997885 Raspberry Pi® SC0870 SC0870 CMOS colour camera unit Compatible with (development kits): Raspberry Pi®
Description
The Raspberry Pi High Quality Camera is an affordable Raspberry Pi camera. It offers a resolution of 12 megapixels and a sensor with a diagonal size of 7.9 mm for an impressive performance with low light. The M12 mount version is designed for most M12 interchangeable lenses. Other lens formats can be used with third-party lens adapters.
The high-quality camera is well suited for industrial and consumer applications, including security cameras that require maximum visual fidelity and/or the integration of special optics. It is compatible with all Raspberry Pi computer models starting with Raspberry Pi 1 Model B.
The package consists of a board with a Sony IMX447 sensor, an FPC cable for connection to a Raspberry Pi computer and a milled aluminum lens mount with integrated stand bracket.
This text is machine translated.
The high-quality camera is well suited for industrial and consumer applications, including security cameras that require maximum visual fidelity and/or the integration of special optics. It is compatible with all Raspberry Pi computer models starting with Raspberry Pi 1 Model B.
The package consists of a board with a Sony IMX447 sensor, an FPC cable for connection to a Raspberry Pi computer and a milled aluminum lens mount with integrated stand bracket.
This text is machine translated.
