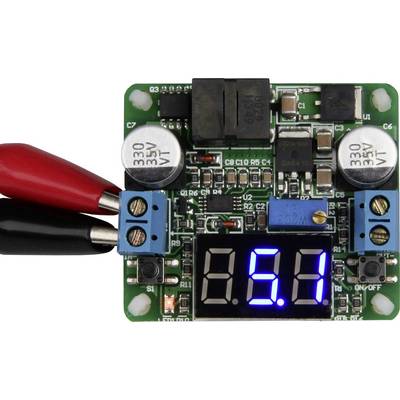

Joy-it SBC-BUCKBOOST01 Voltage regulator 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Highlights & Details
Buck and boost voltage converter
- Voltage transformer module
- Step-UP + Step-down
- LM PAPIER 2596& LM2577
- Adjustable output voltage by means of trimmer
- The on/off switch for the output voltage
- On and/or output voltage can be displayed
Technical specifications
- Voltage converter module
- Step-UP + Step-Down
- LM2596 & LM2577
- Output voltage can be set via trimmer
- Switch for switching the output voltage on/off
- Display of on and/or output voltage
- Input voltage: 5 to 25 V
- Output voltage: 0.5 to 25V
- Maximum current: Input: 2A ; Output: 2A
- Max. Power: 25 Watt
- 3 digit segment display.
- Product type
Voltage regulator
- Min. operating voltage
5 V
- Max. operating voltage
25 V
- Output voltage (max.)
25 V
- Output voltage (min.)
0.5 V
- Tool type
Converter
- Height
16 mm
- Width
47 mm
- No. of outputs
1 x
- Weight
23 g
- Sensor
LM2577
- Depth
41 mm
Documents & Downloads
Datasheet
Datasheet 1875989 Joy-it SBC-BUCKBOOST01 Voltage regulator 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1875989 Joy-it SBC-BUCKBOOST01 Voltage regulator 1 pc(s)
Description
The freely configurable voltage converter module is equipped with a "Step Up" and a "Step Down" feature.
The voltage is by means of a trimmer individually adjustable and is on the integrated segment display.
The maximum power is 25 W/2 A.
This text is machine translated.
The voltage is by means of a trimmer individually adjustable and is on the integrated segment display.
The maximum power is 25 W/2 A.
This text is machine translated.
Scope of delivery
- Module
