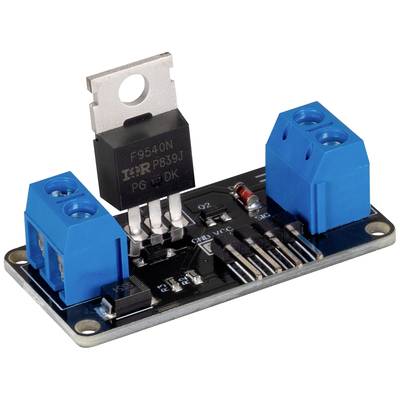

Joy-it COM-MOSFET Voltage regulator 1 pc(s) Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.35
10
7% = € 0.25
€ 3.10
25
10% = € 0.35
€ 3.00
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.35 / piece)
€ 3.35
plus VAT.
Highlights & Details
Field-effective transistor for controlling higher voltages
- MOSFET also receives voltage via the SBC if no source voltage is available
- Effective voltage can be reduced with PWM
- JST plug
Technical specifications
- Model
- IRF9540N
- Color of the board
- Black
- Compatible with
- Arduino, Raspberry Pi, etc.
- Key features
- MOSFET also receives voltage via the SBC if no source voltage is available
- Effective voltage can be reduced with PWM
- Dimensions
- 40 x 22 x 20 mm
- Control voltage
- Min 2V
- Max. Input voltage
- 36 V
- Max. input current::
- 2A
- Connectivity
- 2x 2 pin terminal blocks
- 4 pin JST-plug
- Packaging type
Piece
- Product type
Voltage regulator
- Compatible with
Arduino
- Interfaces
2-core
ST plug
- Min. operating voltage
2 V
- Max. operating voltage
36 V
- Output voltage (max.)
36 V
- Suitable for
Arduino
BeagleBone
Cubieboard
Raspberry Pi®
- Tool type
Converter
- Height
22 mm
- Length
20 mm
- Width
40 mm
- Compatible with
Arduino
Documents & Downloads
Datasheet
Datasheet 2176924 Joy-it COM-MOSFET Voltage regulator 1 pc(s) Compatible with (development kits): Arduino
User & Safety Instructions
User & Safety Instructions 2176924 Joy-it COM-MOSFET Voltage regulator 1 pc(s) Compatible with (development kits): Arduino
Description
With the COM-MOSFET you can control a voltage of up to 36 Volt. With the help of pulse-width modulation, the effective voltage can also be reduced (e.g. for dimming an LED lighting).
This text is machine translated.
This text is machine translated.
Scope of delivery
- MOSFET module
