Name: Joy-it SBC-DVA Digital current monitoring 1 pc(s) Compatible with (development kits): Arduino, BBC micro:bit, Raspberry
Brand: Joy-it
SKU: 3304683
Availability: InStock

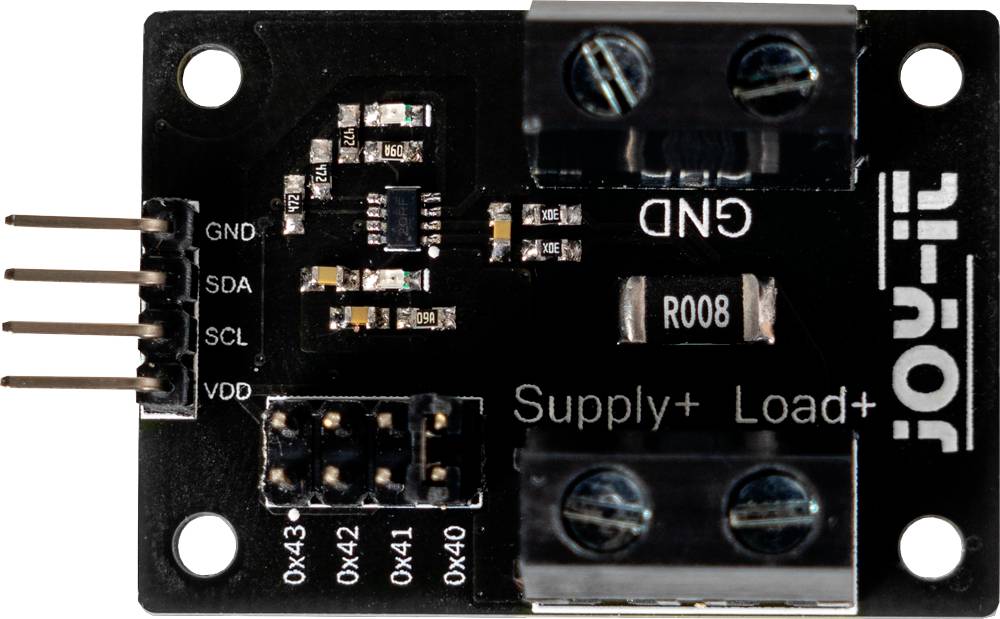

A black electronic module with multiple connection pins and two black connectors, mounted on a circuit board.

'Electronic module with connections, labelled: GND, Supply+, Load+, VDD. Circuit board shows small electronic components.'

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

42 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 8.49 / piece)

€ 8.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

16 bit digital current monitoring with I2C, 0-48V, 0-8A

0-48V, 0-8A
Monitoring via I2C
Red ALARM LED
Compatible with almost all microcontrollers

Technical specifications

Communication interface:
I2C standard address: 0x40
Selectable using jumper: 0x40
0x41
0x42
0x43
Key features:
Green Power LED
Red alarm LED
Supply voltage
1.7 - 5.5 V
Current measuring range
0 - 8 A
Logic level
1.7 - 5.5 V
"Common-mode" voltage range
0 - 48 V/DC
Operating temperature
-40 - +60 °C
Compatible with
Raspberry Pi, Raspberry Pi pico, Arduino, micro:bit and more

Product type: Digital current monitoring

Compatible with: Arduino

Interfaces: I²C

Min. operating voltage: 0 V

Max. operating voltage: 48 V

Suitable for: Raspberry Pi®

Tool type: Tester

Height: 14 mm

Length: 29 mm

Width: 41 mm

Weight: 10

Compatible with: Arduino
BBC micro:bit
Raspberry Pi®
Raspberry Pi® Pico

Documents & Downloads

Datasheet

Datasheet 3304683 Joy-it SBC-DVA Digital current monitoring 1 pc(s) Compatible with (development kits): Arduino, BBC micro:bit, Raspberry

User & Safety Instructions

User & Safety Instructions 3304683 Joy-it SBC-DVA Digital current monitoring 1 pc(s) Compatible with (development kits): Arduino, BBC micro:bit, Raspberry

Description

The product offers a 16-bit module for monitoring electrical current with I2C interface and is suitable for a variety of digital bus voltages, including 1.8 V, 3.3 V and 5.0 V.
It monitors the voltage by means of an external resistor and provides information on the current flow, bus voltage and power, whereby a direct readout of the values in amps for current and watts for power is possible.
The device controls the bus voltage applied at its IN pin and is in a position to alert with conditions of over or undercurrent as well as over or undervoltage. This is signaled visually by a red LED.
In addition, the product detects current flows in the normal bus voltages, which can move within the range of 0 V to 48 V, regardless of the operating voltage.

This text is machine translated.
