Name: Joy-it SBC-MotoDriver3 Motor controller 1 pc(s) Compatible with (development kits): Raspberry Pi® Pico
Brand: Joy-it
SKU: 2890404
Availability: InStock

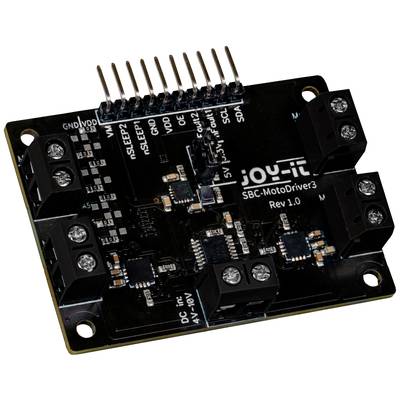

'Joy-It SBC-MotoDriver3 Rev 1.0' Motor driver board with multiple connections and black electronic components.

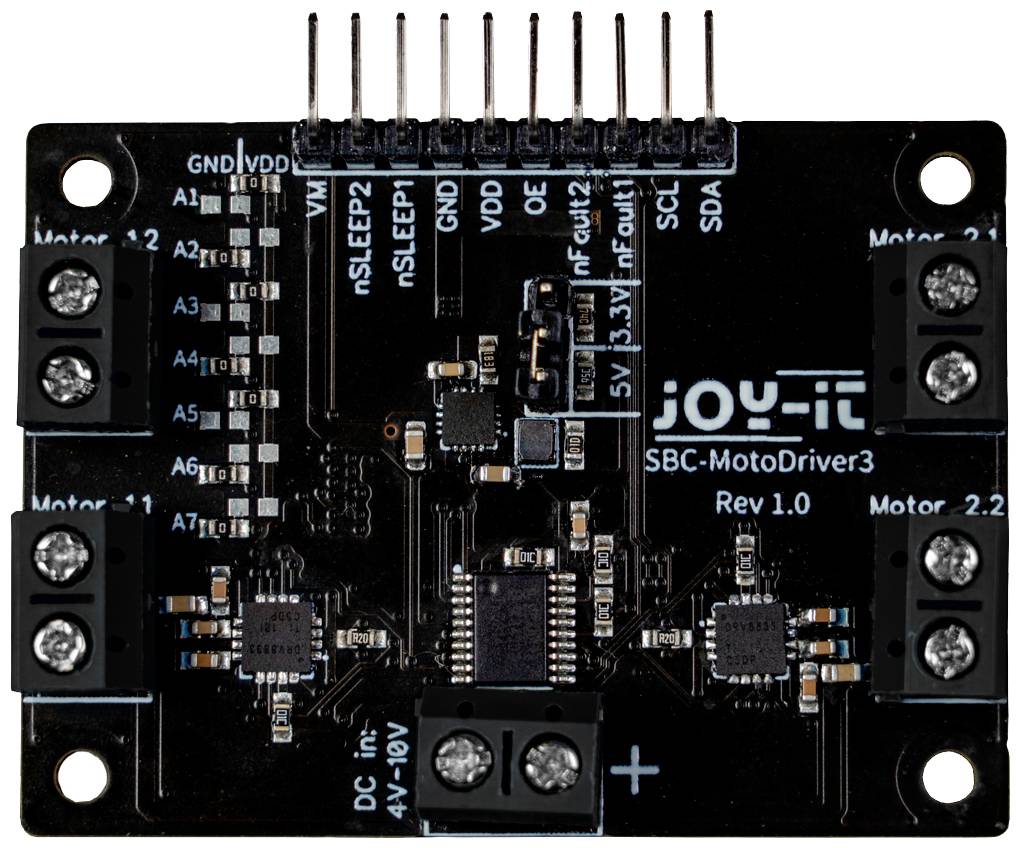

An electronic circuit board with the inscription 'joy-it SBC-MotoDriver3 Rev 1.0', showing several connectors and circuits.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

21 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Motor driver board for DC and stepper motors, DRV8833, PCA9634, 4 to 10 volts

Compatible with Raspberry Pi, Raspberry Pi pico, Arduino, micro:bit and more
I2C standard address: 0x15
Onboard voltage conversion from "DC IN" to 5 V or 3.3 V, selection of the I2C addresses of the driver IC by soldering bridges, control of 4 DC motors/2 steppers via I2C possible
4 to 10 V.
4x DC or 2x stepper motor

Technical specifications

Compatible with Raspberry Pi, Raspberry Pi pico, Arduino, micro:bit and more
Motor driver IC DRV8833
Driver: IC PCA9634
I2C communication interfaces Standard address: 0x15
Special features: On-board voltage conversion from "DC IN" to 5 V or 3.3 V, selection of the I2C addresses of the driver IC by soldering bridges, control of 4 DC motors/2 steppers via I2C possible
Logic level 3.3 V (5 V Tolerance)
Voltage range of VM pin and DC IN input 4 - 10 V
Motor voltage range (DC & stepper) 4 - 10 V
Power consumption motors: DC: Max. 1.5 A pro Motor Steppers: Max. 1.5 A per bridge
Operating temperature: -40 to + 85 °C.
Maximum current output of the integrated voltage converter: 1 A (maximum value which can be used for the supply of microcontrollers or single-board computers)

Packaging type: Piece

Product type: Motor controller

Compatible with: Arduino

Interfaces: I²C

Min. operating voltage: 4 V

Max. operating voltage: 10 V

Output voltage (max.): 10 V

Output voltage (min.): 4 V

Suitable for: Raspberry Pi®

Tool type: Motor controller

Height: 14 mm

Length: 47 mm

Width: 57 mm

No. of outputs: 4 x

Weight: 18 g

Compatible with: Raspberry Pi® Pico

Documents & Downloads

Datasheet

Datasheet 2890404 Joy-it SBC-MotoDriver3 Motor controller 1 pc(s) Compatible with (development kits): Raspberry Pi® Pico

User & Safety Instructions

User & Safety Instructions 2890404 Joy-it SBC-MotoDriver3 Motor controller 1 pc(s) Compatible with (development kits): Raspberry Pi® Pico

Description

With the MotoDriver3 you have the option to control up to four DC motors or two stepper motors and to supply current. The connected motors are controlled via the PCA9634 chip, which provides an I2C interface. The MotoDriver3 offers an integrated voltage conversion that allows an adjustable voltage of 3.3 V or 5 V for microcontrollers and selected single-board computers. For this purpose, only a voltage source is connected to the "DC IN" input. Thanks to the MotoDriver3 there is no need for additional power supplies for the motors or for the use of large quantities of cables. The extension board enables a precise control of the motors with a constant voltage in the range of 4 V to 10 V.
