Joy-it sen-mq5 Gas detector 1 pc(s) Compatible with (development kits): Raspberry Pi®, Arduino

Sensor module with metal mesh, blue calibration unit, and multiple yellow connectors on a black circuit board.

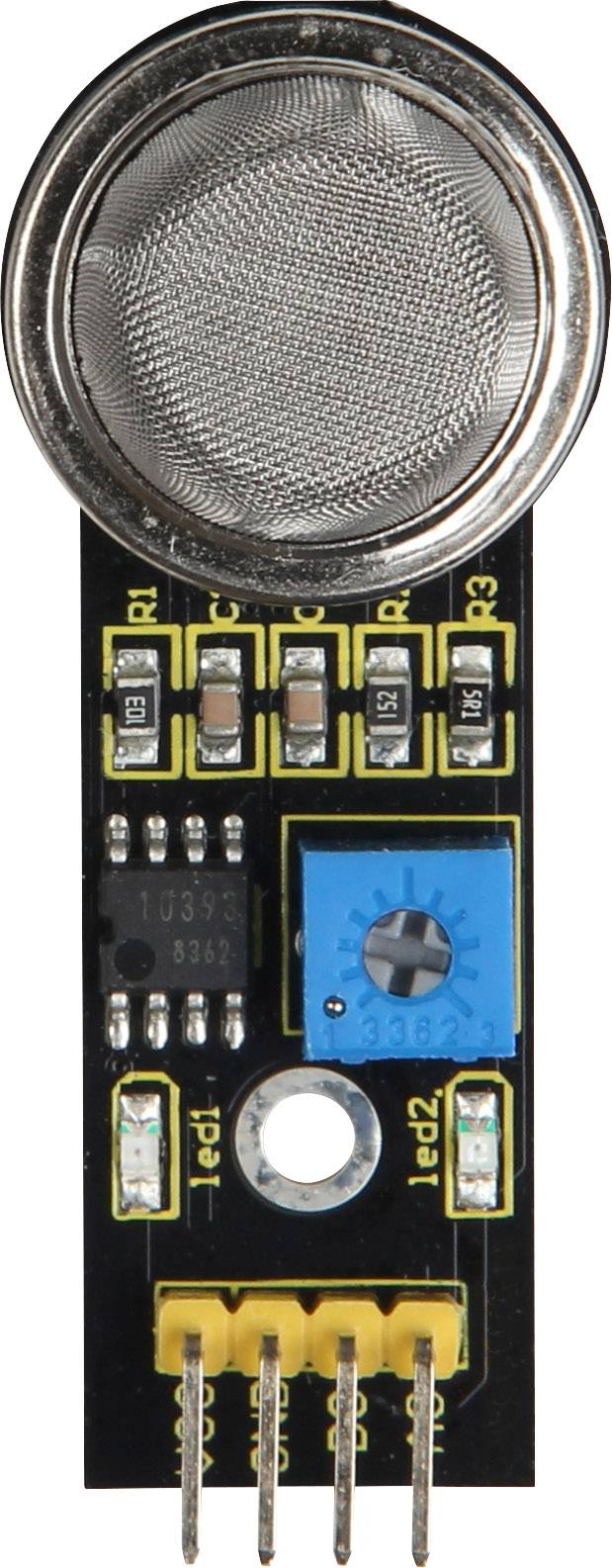

Gas sensor module with a circular metal grid, blue potentiometer adjustment and multiple electronic components on a black circuit board.
1/2
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
33 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2.99 / piece)
€ 2.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Analogueue sensor for natural gases

  • Analogueue sensor for natural gases on module
  • (Liquefied gases, LPG, butane, methane, propane, etc.)
  • Compatible with all Singleboard computers
  • High sensitivity
  • Fast response time
  • Insensitive to alcohol and smoke

Technical specifications

  • Measurement range 50 - 10,000 ppm
  • Measurable substances liquefied gases (LPG), propane, methane, butane, other natural gases, etc.
  • Applications for detecting gas leaks, for gas alarms, robotics, micro-controller projects
  • Compatible with Raspberry Pi (with ADconverter), Arduino, etc.
  • Analogue output Evaluation of the measured values from the microcontroller
  • Digital output (with potentiometer)
  • PINS: VCC, GND, AOUT, DOUT
  • Earth
  • Analogueue output
  • Digital output
  • Response time ≤ 10 s.
  • Recovery time ≤ 30 s.
  • Loop voltage ≥ 24 V DC
  • Load resistance 2 KΩ
  • Resistance in clean air ≤4000 kΩ
  • Sensitivity ≥ 4(in 1000ppm C4H10).
Product type

Gas detector

Max. operating voltage

5 V

Height

18 mm

Length

52 mm

Width

20 mm

Internal ports

Pin header

No. of outputs

2 x

Compatible with

Raspberry Pi®

Arduino

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2205380 Joy-it sen-mq5 Gas detector 1 pc(s) Compatible with (development kits): Raspberry Pi®, Arduino

Description

This analogueue gas sensor has a small heating element with an electronic-chemical sensor.
It is suitable for indoor use.
Natural gases (e.g. liquefied gases, LPG, butane, methane, propane) can be measured. A potentiometer integrated in the module allows you to set the threshold value according to your requirements.
The sensor module has a very fast response time and a high sensitivity. It is insensitive to alcohol or smoke.

This text is machine translated.

Scope of delivery

  • Sensor module
