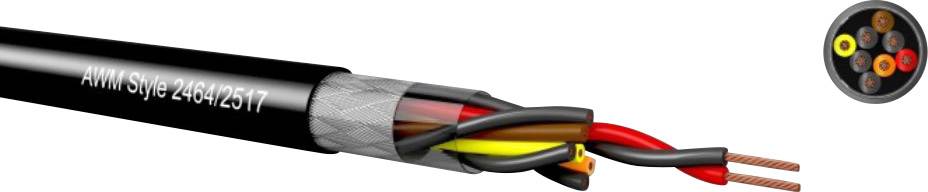

Kabeltronik LiYCY Control lead 8 x 0.09 mm² Black 0970828090 500 m
Part number:
Item no:
Product type
Control lead
No. of leads
8 x
Cross section (each core)
0.09 mm²
Cable type
LiYCY
Outside Ø
5.90 mm
Datasheet (PDF)
Number
Total (1 m = € 3.07)
€ 1,533.61
plus VAT.
14-day return policy included
Technical specifications
- Product type
Control lead
- No. of leads
8 x
- Content
500 m
- Cross section (each core)
0.09 mm²
- No. of leads (part 2)
2 x
- Cable type
LiYCY
- AWG max.
28
- Outside Ø
5.90 mm
- Packaged
Yes
- Halogen-free
No
- Manufacturer part #
0970828090
- Factory colour
Black
- Insulation material
PVC
- Core layout
7 x 0,127 mm
- Sold per metre
No
- Nominal voltage
300 V
- Test voltage
1500 V
- Cross section
8 x 0.09 mm²
- Suited for cable carriers
No
- Max. temperature range (flexible installation)
+105 °C
- Min. temperature range (flexible installation)
-15 °C
- Max. temperature range (fixed installation)
+105 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
0970828090
Documents & Downloads
Datasheet
Datasheet 1397019 Kabeltronik LiYCY Control lead 8 x 0.09 mm² Black 0970828090 500 m
User & Safety Instructions
User & Safety Instructions 1397019 Kabeltronik LiYCY Control lead 8 x 0.09 mm² Black 0970828090 500 m
Description
For connections in the field of measurement and control technology as well as in the signal and pulse technology. For export products in the American market are UL-approved control lines required. By SR-PVC as a wire insulation, ideally suited for insulation displacement technology. The outer sheath is through the special PVC largely oil-resistant, UV-resistant, weather-resistant and bezinfest. The shielding prevents a large proportion of electrical interference.
