Name: Kärcher Home & Garden 1.645-832.0 SP 16.000 Dual Submersible pump PG connector 16000 l/h 9 m
Brand: Kärcher Home & Garden
SKU: 2992105
Price: 139.99 EUR
Availability: InStock

Cross-section of an electric motor with visible copper windings and mechanical structure, showing internal components and design.

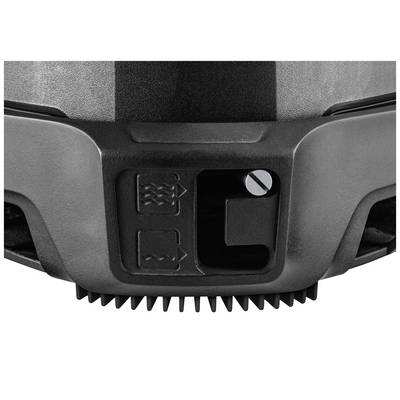

Close-up of an electrical device with two symbols on its surface: a ribbed cogwheel at the bottom, practical application unknown.

A man stands on a wooden jetty, holding a water pump over a pond. Trees and plants can be seen in the background.

Yellow rubbish bin at a tram stop; black base, blue background.

Warning Sign: Yellow sign with black border, indicates danger from falling objects. Background: Wall with holes.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Kärcher immersion pump SP 16000 Dual

Ceramic mechanical seal for extra long life
For dirty water and flat suction up to 1 mm
The desired mode is selected simply by changing the filter basket
Height-adjustable float switch increases the flexibility of setting the pump on and off point and protects against dry run

Technical specifications

Product type: Submersible pump

Features: PG connector

Max. delivery head: 9 m

Max. feed rate: 16000 l/h

Max. discharge pressure: 0.9 bar

Operating voltage: 230 V

Power consumption (P1): 550 W

Connection: G1 1/2

Max. size of solids: 20 mm

Immersion depth: 7 m

Max. cable length: 10 m

Float switch: Yes

Length: 237 mm

Width: 241 mm

Height: 279 mm

Dim: (L x W x H) 237 x 241 x 279 mm

Weight: 5 kg

Factory colour: Yellow

Depth: 250 mm

Material: Plastic

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2992105 Kärcher Home & Garden 1.645-832.0 SP 16.000 Dual Submersible pump PG connector 16000 l/h 9 m

User & Safety Instructions

User & Safety Instructions 2992105 Kärcher Home & Garden 1.645-832.0 SP 16.000 Dual Submersible pump PG connector 16000 l/h 9 m

Warranty Terms

Warranty Terms 2992105 Kärcher Home & Garden 1.645-832.0 SP 16.000 Dual Submersible pump PG connector 16000 l/h 9 m

Description

Thanks to 2-in-1-function the robust submersible pump SP 16,000 Dual can be used in clear as well as in dirty water and it pumps away reliably dirty water with dirt particles of up to 20 millimeters. And for wipe-dry results up to 1 millimeters, the variable filter basket can be changed quickly from the setting of waste water to flat suction. With a maximum delivery rate of 16,000 l/h the SP 16,000 Dual Ideal is suitable for pumping out water from flooded cellars, garden ponds or pools. The well-known mechanical seal provides a particularly long life of the pump. It can be switched on and off automatically using a float switch. The float is also mounted on a rail and vertically adjustable for low pumping. And with Quick Connect connecting pieces, connecting 1", 1 1/4" and 1 1/2" hoses can be done quickly and easily.

This text is machine translated.

Features

Ceramic mechanical seal for extra long life
For dirty water and flat suction up to 1 mm
The desired mode is selected simply by changing the filter basket
Height-adjustable float switch increases the flexibility of setting the pump on and off point and protects against dry run
Convenient carrying handle
Hose connector: G1, 1”, 1 1/4”, 1 1/2”
Simple hose connection thanks to Quick Connect
Switching Manual/Automatic operation: Fixing possibility for the float
Flexible height-adjustable float switch
In automatic mode (auto) the pump switches automatically to the water level
In manual operation the pump runs permanently to reach the minimum residual water level

Scope of delivery

SP 16000 Dual
Hose connector: G1, 1”, 1 1/4”, 1 1/2”
User manual.

Description

Features

Ceramic mechanical seal for extra long life
For dirty water and flat suction up to 1 mm
The desired mode is selected simply by changing the filter basket
Height-adjustable float switch increases the flexibility of setting the pump on and off point and protects against dry run
Convenient carrying handle
Hose connector: G1, 1”, 1 1/4”, 1 1/2”
Simple hose connection thanks to Quick Connect
Switching Manual/Automatic operation: Fixing possibility for the float
Flexible height-adjustable float switch
In automatic mode (auto) the pump switches automatically to the water level
In manual operation the pump runs permanently to reach the minimum residual water level
