Kärcher Home & Garden 1.645-840.0 SP 17.000 Flat Level Sensor Wet intake submersible pump 17000 l/h 9 m

1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov

24 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 169.99 / piece)
€ 169.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

SP 17,000 flat level sensor for flat suction

  • Connection supports for quick and easy connection of 1", 1 1/4" and 1 1/2" hoses
  • Conversion from normal operation with higher delivery rate to 1 mm flat suction with wipe dry result
  • The pump starts operation in manual mode even from a water level of 7 mm
  • For switching between automatic and manual mode
  • Protects the pump against excessive contamination and thus prevents a clogging of the pump impeller

Technical specifications

  • Residual water height 1 mm
  • Pressure max. 0.9 bar
  • Max. Delivery temperature: 35 °C
Product type

Wet intake submersible pump

Max. delivery head

9 m

Max. feed rate

17000 l/h

Max. discharge pressure

0.9 bar

Operating voltage

230 V

Power consumption (P1)

550 W

Connection

G1 1/2

Max. size of solids

5 mm

Immersion depth

max. 7 m

Max. cable length

10 m

Length

238 mm

Width

293 mm

Height

356 mm

Dim

(L x W x H) 238 x 293 x 356 mm

Weight

6 kg

Factory colour

Multicolour

UKCA

not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3048701 Kärcher Home & Garden 1.645-840.0 SP 17.000 Flat Level Sensor Wet intake submersible pump 17000 l/h 9 m

User & Safety Instructions

User & Safety Instructions 3048701 Kärcher Home & Garden 1.645-840.0 SP 17.000 Flat Level Sensor Wet intake submersible pump 17000 l/h 9 m

Warranty Terms

Warranty Terms 3048701 Kärcher Home & Garden 1.645-840.0 SP 17.000 Flat Level Sensor Wet intake submersible pump 17000 l/h 9 m

Description

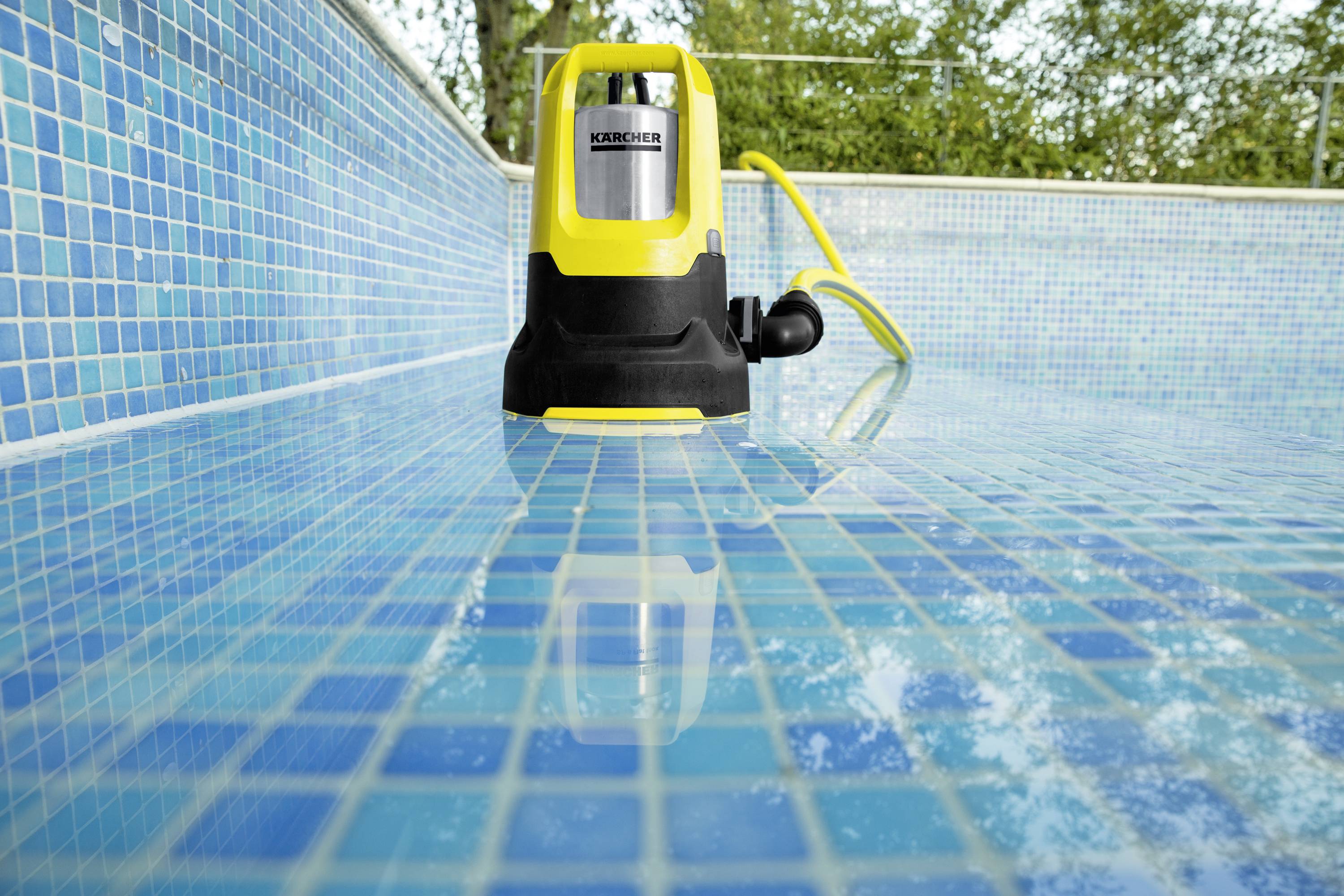

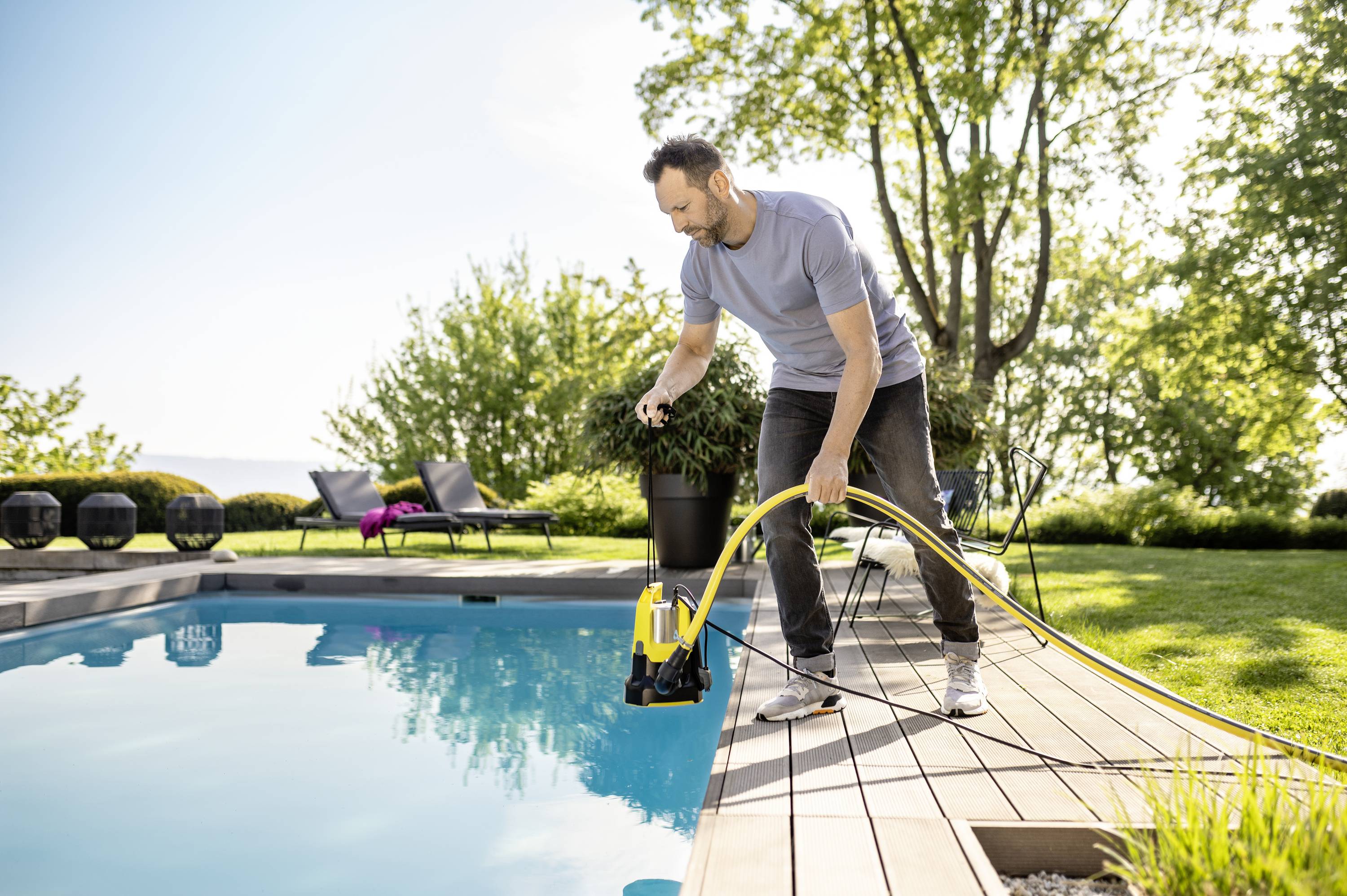

The most powerful clear water submersible pump from Kärcher pumps up to 17,000 liters of clear to slightly contaminated water per hour and is therefore perfectly suited for pools, drainage shafts and water damage in the house. In case of stronger contamination and in order to protect the impeller the use of the enclosed stainless steel pre-filter is recommended. The robust stainless steel housing and the mechanical seal make the pump very durable. The flat suction pump is equipped with a continuously adjustable level sensor, which starts the pump immediately upon contact with water. In addition, the SP 17,000 Flat Level sensor has foldable pedestal, whereby the immersion pump starts at a water level of 7 mm. The pump can be set to continuous operation in manual mode by means of the switch. In continuous operation as well as in automatic mode, it pumps off dry up to a residual water level of 1 millimeters, depending on how the level sensor is set. In addition, the Quick Connect connector piece allows a particularly easy connection of 1", 1 1/4" and 1 1/2" hoses.

This text is machine translated.

Features

  • Ceramic mechanical seal
  • Quick Connect
  • Foldable stand feet
  • Automatic ventilation

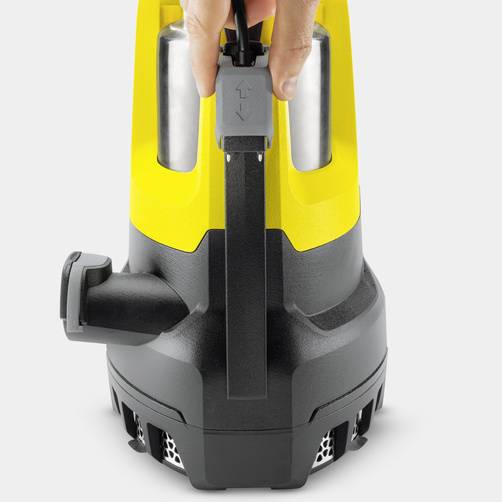

  • Auto-manual switch
  • Convenient carrying handle
  • Robust and easy to attach stainless steel pre-filter
