Buy Kathrein 21510027 Coax Outside diameter: 6.9 mm 75 Ω 130 dB White Sold per metre | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

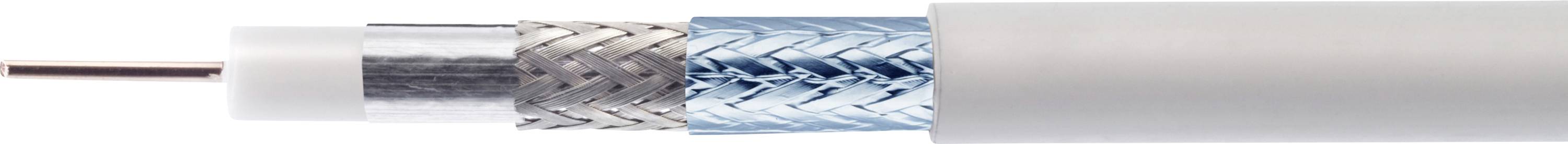

A close-up of a coaxial cable cross-section shows the copper core, white dielectric insulator, braided metallic shield, and outer plastic sheath.

A close-up of a coaxial cable cross-section shows the copper core, white dielectric insulator, braided metallic shield, and outer plastic sheath.

Kathrein

Product type

Coax

Impedance

75 Ω

Shield rating greater than

130 dB

Cable features

triple shielding

Outside Ø

6.9 mm

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

225 meter

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

meter

Total (€ 1.49 / piece)

€ 1.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LCD 111 A+/500m coaxial cable

Highest shielding output: The cable belongs to the shielding class A++ and offers an extraordinary shielding attenuation of typical 130 dB (30 – 3000 MHz).
Official release and certification: The material is dibkom-certified and has been explicitly released by KDG/Vodafone Kabel Deutschland.
Safety and environmental compatibility: It meets the requirements of the EU 305/2011 Construction Products Regulation with the ECA fire class. In addition, the cable is lead-free, without silicone and UV-resistant.
Technical specifications: It has an impedance of 75 Ω, is intended for domestic installations and has a useful meter marking. It is designed for frequencies from 5 MHz to 2400 MHz

Technical specifications

Product type: Coax

Impedance: 75 Ω

Shield rating greater than: 130 dB

Cable features: triple shielding

Core Ø: 1,13 mm

Factory colour: White

Outside Ø: 6.9 mm

Width: 6.9 mm

Content: Sold per metre

Sold per metre: Yes

Manufacturer part #: 21510027

Insulation material: PE

Type: LCD 111 A+

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3479082 Kathrein 21510027 Coax Outside diameter: 6.9 mm 75 Ω 130 dB White Sold per metre

Description

Select the LCD 111 A+ coaxial cable, if only the highest quality counts. This dibkom-certified material offers the excellent shielding class A++ and a typical shielding attenuation of 130 dB, WAS ensures the best signal quality and highest protection against external interferences. It is not only lead-free and without silicone, but also officially approved by Vodafone/KDG (Kabel Deutschland) for domestic installations. With the ECA fire class and the practical meter marking, the LCD 111 A+ is the professional choice for long-lasting and safe laying indoors.

This text is machine translated.

Related products can be found here

SAT Antenna Connectors & Adapters DVB-S Receivers Side Cutters Sat & Antenna Cables Heat Shrink Tubes SAT 5-Way Multiswitches HF Connectors Universal Enclosures Button Cells SAT Dishes SAT Systems Harmonised & Certified Cables AV Connectors SAT Accessories HF Adapters LNBs Antenna Sockets

Description

Select the LCD 111 A+ coaxial cable, if only the highest quality counts. This dibkom-certified material offers the excellent shielding class A++ and a typical shielding attenuation of 130 dB, WAS ensures the best signal quality and highest protection against external interferences. It is not only lead-free and without silicone, but also officially approved by Vodafone/KDG (Kabel Deutschland) for domestic installations. With the ECA fire class and the practical meter marking, the LCD 111 A+ is the professional choice for long-lasting and safe laying indoors.

This text is machine translated.
