Buy Kathrein 21510029 Coax Outside diameter: 6.9 mm 75 Ω 130 dB Black Sold per metre | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

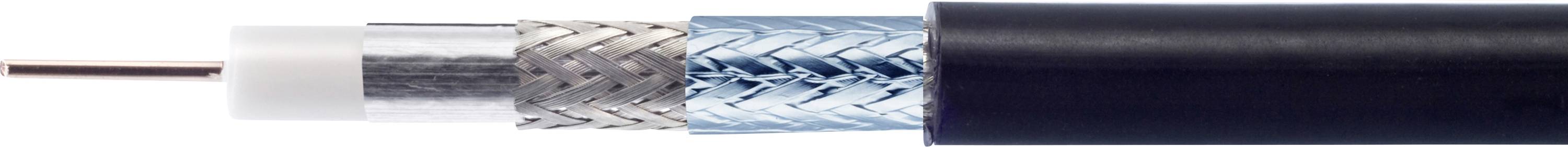

Cross-section of a coaxial cable showing layers: copper wire, insulating layer, metal shielding, and outer jacket.

Cross-section of a coaxial cable showing layers: copper wire, insulating layer, metal shielding, and outer jacket.

Kathrein

Product type

Coax

Impedance

75 Ω

Shield rating greater than

130 dB

Cable features

Halogen-free

Outside Ø

6.9 mm

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

429 meter

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

meter

Total (€ 1.49 / piece)

€ 1.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LCD 115 A+/500m coaxial cable

Highest fire protection class (Cca): The cable meets the requirements of the construction products regulation 305/2011 with the fire class Euroclass Cca S1A e1 a1. It is also halogen-free, lead-free and silicone-free.
Superior shielding power: It is rated A++ (EN 50117) and has excellent shielding attenuation of typically 130 dB in the frequency range from 30 to 3000 MHz.
Official release and certification: The material is dibkom-certified and has been explicitly released by KDG/Vodafone Kabel Deutschland.
Application flexibility: The coaxial cable (6.8 mm diameter, black) is suitable for domestic installations as well as for the outdoor use (no underground installation). It is also UV resistant and has a meter marking

Technical specifications

Product type: Coax

Impedance: 75 Ω

Shield rating greater than: 130 dB

Cable features: Halogen-free

Core Ø: 1,13 mm

Factory colour: Black

Outside Ø: 6.9 mm

Width: 6.9 mm

Content: Sold per metre

Sold per metre: Yes

Halogen-free: Yes

Manufacturer part #: 21510029

Min. temperature range (fixed installation): -25 °C

Max. temperature range (fixed installation): +70 °C

Type: LCD 115 A+

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3479077 Kathrein 21510029 Coax Outside diameter: 6.9 mm 75 Ω 130 dB Black Sold per metre

Description

Kathrein LCD 115 a+:
The fire-proof premium cable with A++ shielding!

The LCD 115 A+ coaxial cable CCA is the professional choice for the highest demands in the home installation, inside as well as outside. It offers maximum safety as it meets the strict Euro class Cca S1A,d1,a1 of the Construction Products Regulation and is also halogen-free, lead-free and without silicone. Despite the flame-resistant (flame-retardant) design, the dibkom-certified cable offers an excellent A++ shielding class with a typical shielding attenuation of 130 dB. It is officially approved by the KDG/Vodafone cable of Germany and thus guarantees disturbance-free signal distribution up to 2400 MHz.

This text is machine translated.

Related products can be found here

SAT Antenna Connectors & Adapters DVB-S Receivers Side Cutters Sat & Antenna Cables Heat Shrink Tubes SAT 5-Way Multiswitches HF Connectors Universal Enclosures Button Cells SAT Dishes SAT Systems Harmonised & Certified Cables AV Connectors SAT Accessories HF Adapters LNBs Antenna Sockets

Description

Kathrein LCD 115 a+:
The fire-proof premium cable with A++ shielding!

The LCD 115 A+ coaxial cable CCA is the professional choice for the highest demands in the home installation, inside as well as outside. It offers maximum safety as it meets the strict Euro class Cca S1A,d1,a1 of the Construction Products Regulation and is also halogen-free, lead-free and without silicone. Despite the flame-resistant (flame-retardant) design, the dibkom-certified cable offers an excellent A++ shielding class with a typical shielding attenuation of 130 dB. It is officially approved by the KDG/Vodafone cable of Germany and thus guarantees disturbance-free signal distribution up to 2400 MHz.

This text is machine translated.
