Buy Kathrein 215500020 Coax Outside diameter: 6.8 mm 75 Ω 135 dB White Sold per metre | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

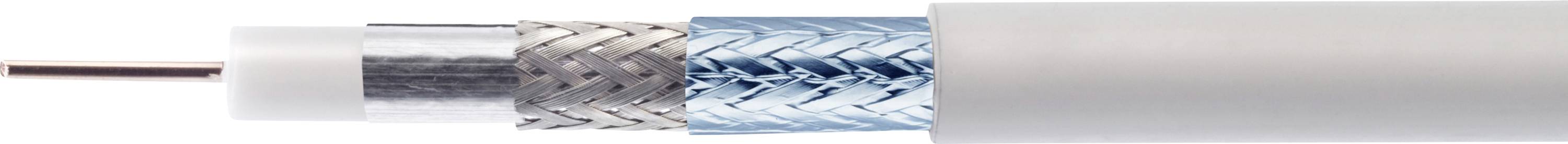

Cross-section of a coaxial cable showing layers: central copper wire, insulating plastic, braided metal shield, and outer plastic cover.

Cross-section of a coaxial cable showing layers: central copper wire, insulating plastic, braided metal shield, and outer plastic cover.

Kathrein

Product type

Coax

Impedance

75 Ω

Shield rating greater than

135 dB

Cable features

Shielded

Outside Ø

6.8 mm

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

167 meter

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

meter

Total (€ 0.98 / piece)

€ 0.98

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LCD 111 A+ light 100m coaxial cable

Coax cable, BauPVO EN 50575-ECA, 100 m one-way coil, 6.8 mm, PVC white
The cable offers a very high shielding of typically 135 dB (30 – 3000 MHz). It therefore provides a high level of protection against interference such as LTE. The cable fulfills the shielding category A+ according to EN 50117.
Optimized for long distances: The cable is specially designed for low attenuation over long routes. It has an impedance of 75 Ω.
High fire safety (ECA): The material is classified in the Euroclass ECA according to the European Construction Products Ordinance (EU 305/2011), making it Ideal for laying indoors.
The cable has a 1.02 mm copper inner conductor and a 3-way shielding (tin-plated copper braid and two film layers). In addition, it is lead-free, without silicone and UV-resistant

Technical specifications

Product type: Coax

Impedance: 75 Ω

Shield rating greater than: 135 dB

Cable features: Shielded

Core Ø: 1,02 mm

Factory colour: White

Outside Ø: 6.8 mm

Content: Sold per metre

Bend radius (no. of ODs for fixed installation): 300

Bend radius (no. of ODs for flexible installation): 350

Sold per metre: Yes

Halogen-free: No

Manufacturer part #: 215500020

Insulation material: PVC

Min. temperature range (fixed installation): -25 °C

Max. temperature range (fixed installation): 70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): 40 °C

Type: LCD 111 A+ light

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3479041 Kathrein 215500020 Coax Outside diameter: 6.8 mm 75 Ω 135 dB White Sold per metre

Description

With a very high shielding of typical 135 dB it offers the best protection against external interferences (e.g. LTE) and achieves the protection class A+. Thanks to its special design with 1.02 mm copper inner conductor the cable guarantees low damping over long connecting stretches.
Safety first: The LCD 111 A+ light meets the Euro class ECA and is optimized for indoor use. The integrated meter marking makes installation easier.
Rely on quality and stability: The LCD 111 A+ light – reliable technology by Kathrein.

This text is machine translated.
